Fratelli Malin Mask Drain

Made In Italy

TILE ON CHANNEL DRAIN Lineal Stainless Drain (SPECIAL ORDER)

TILE ON CHANNEL DRAIN for terraces made entirely of AISI 304 stainless steel (316 on request), ideal for the effective disposal of water from balconies, terraces, showers, changing rooms and pedestrian areas.

The shape of the profile of the TILE ON channels has been specially designed to allow an excellent union between the waterproofing membrane and the channel itself, while the removable cover makes the drainage system totally inspectable and cleanable. The drains are made to measure in the diameters and positions required by the customer.

Each line is tailor-made according to the customer's needs by agreeing on the length, the shape of the line and placing one or more drains in the best positions.
We will therefore provide you with a simple and intuitive drawing with all the dimensions necessary for installation

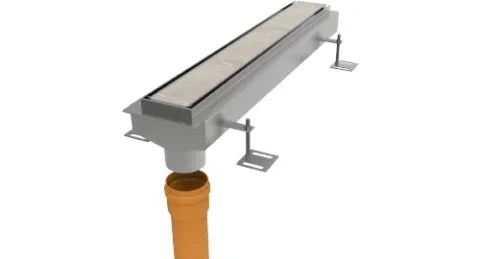

Each individual module is equipped with adjusting screws and leveling feet in order to position the channels in the best possible way during installation operations.
The junction between the modules is carried out by means of flanges with relative gaskets and stainless steel bolts that guarantee the perfect watertightness of the channel.
The installation kit, present in each supply, includes detailed and numbered diagrams for the correct assembly sequence, installation and storage advice.

• Effective and fast disposal thanks to the double slot and the size of the channel body
• Removable covers that make the channel completely inspectable and cleanable

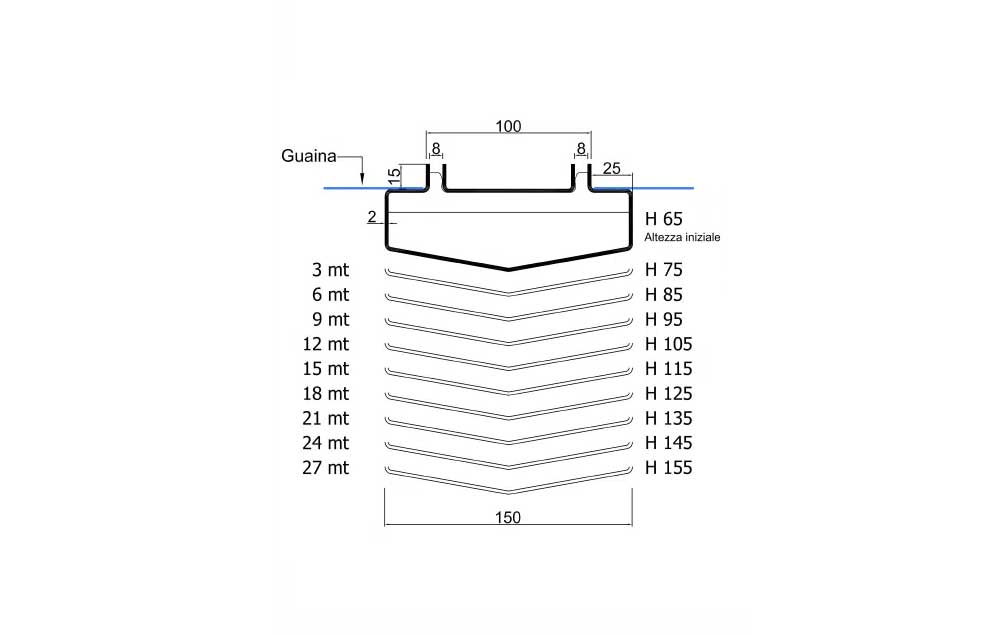

• The "V" shape of the bottom and the internal slope of 3.3 mm/mt prevent the stagnation of liquids inside the channel
• The discharge is made to measure and can be through an inspection pit that includes a basket for collecting solids, or with a simple drain pipe
• Ideal application in the outdoor and indoor areas of buildings, terraces, balconies, swimming pools, showers, changing rooms, wellness centers and pedestrian areas
• Without internal slope (where there is little space available)
• With internal slope 10 mm on 3 meters
• Maximum module length 3m
• Lead time from drawings to delivery ca. 6-8 weeks

1. Drain Linear Meters Ordered
2. Sump(s)
3. Gaskets
4. Stainless Steel Bolts
5. Installation Manual
