Uniproof® Shower Tray Former with Linear Drain

Uniproof® Tray Former is easy-to-install waterproof shower pan. Our shower tray/base can be used in the design of a wet room for the home and suitable to be fixed to both timber and concrete floor.

100% waterproof. When fitting into the floor the tray has to be fully supported. Suitable for coating with standard tiles or with mosaic (smallest 50mm X 50mm). The shower tray/base is easily cut into size or shape (if slight adjustment is needed) and forms a floor level, barrier-free panel ready to receive tiles with a preformed slope to the drain. After fitting the tray suitable waterproofing system has to be used in the corners where the tray meets the walls and on the floor where the tray is joining with rest of the floor.

• It's pre-sloped, no need to worry about the slope when building it
• Fully factory sealed and integrated drainage systems, easy to install
• Floor level
• 100% waterproof as well as mold proof
• Light weight but strong and ready for tiling surface coating
• Easy to cut, only need a knife
• Size can be customized

1. Drain Body
2. Dip-tube
3. Rubber O Ring Seal
4. Drain Basket
5. 50-40mm Reducer
6. Height Adjustment Shim (thickness 1.5mm)
7. Screws for Connection
8. Short or Long screws For Height Adjustment Shim (use according to your requirement)
9. Connection (Rubber Ring)
10. Plastic Support 600mm length
11.  Stainless Steel Support 600m length
12.  Stainless Steel Grate 600m length

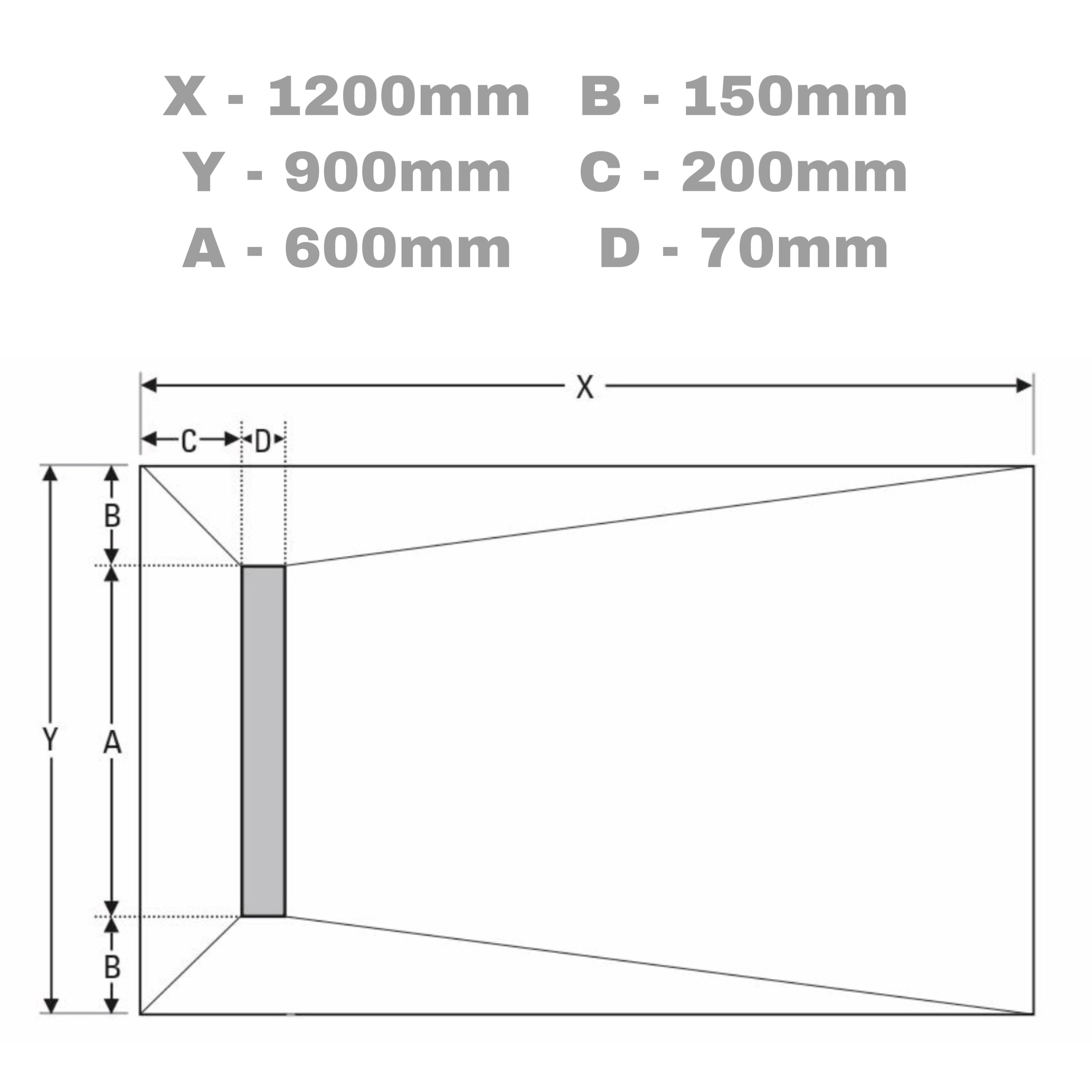

• Drain Length - 600 mm
• Main Drain Body Height - 74 mm
• Adjustable height from 8 mm to 17 mm tiles
• Flow Rate – 35 l/per minute
• Thickness of the tray - 30mm
