Huum Core Sauna Heater

Made In Estonia

HUUM CORE SAUNA HEATER

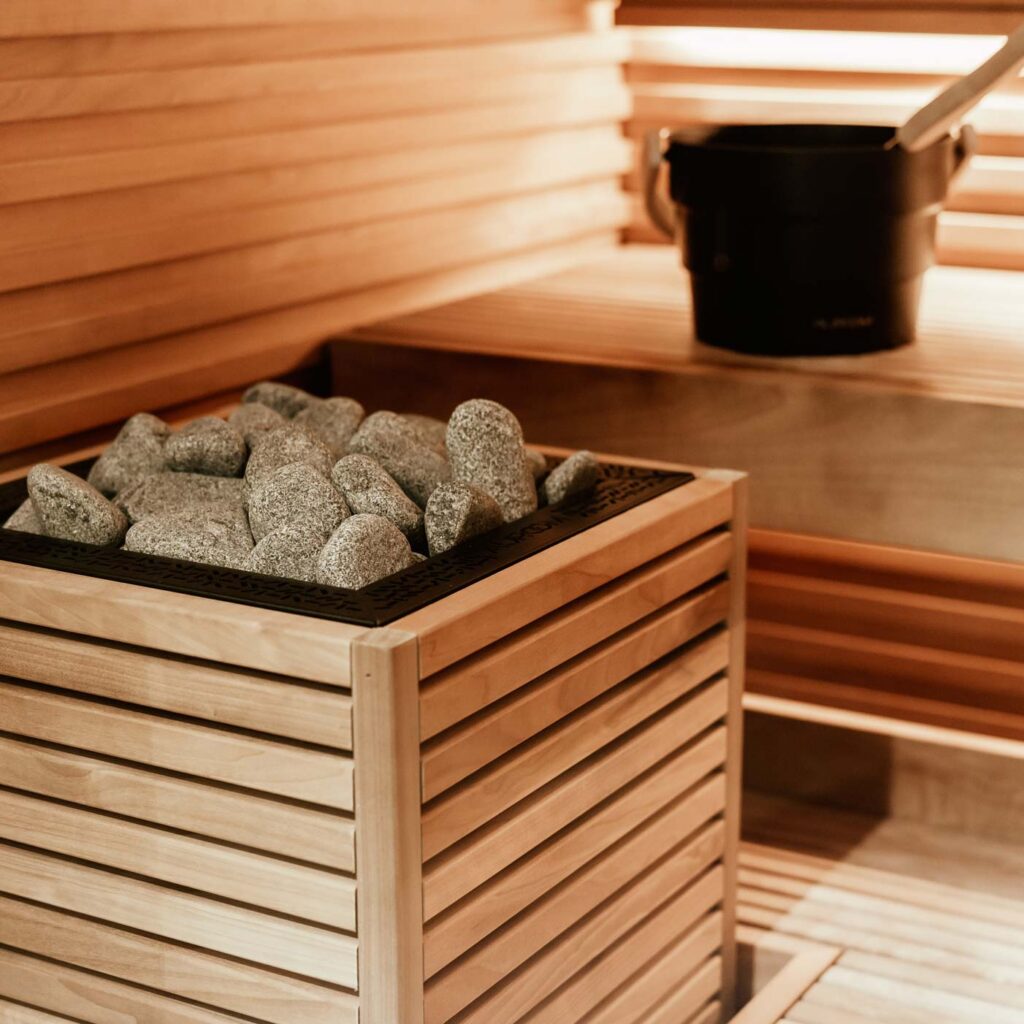

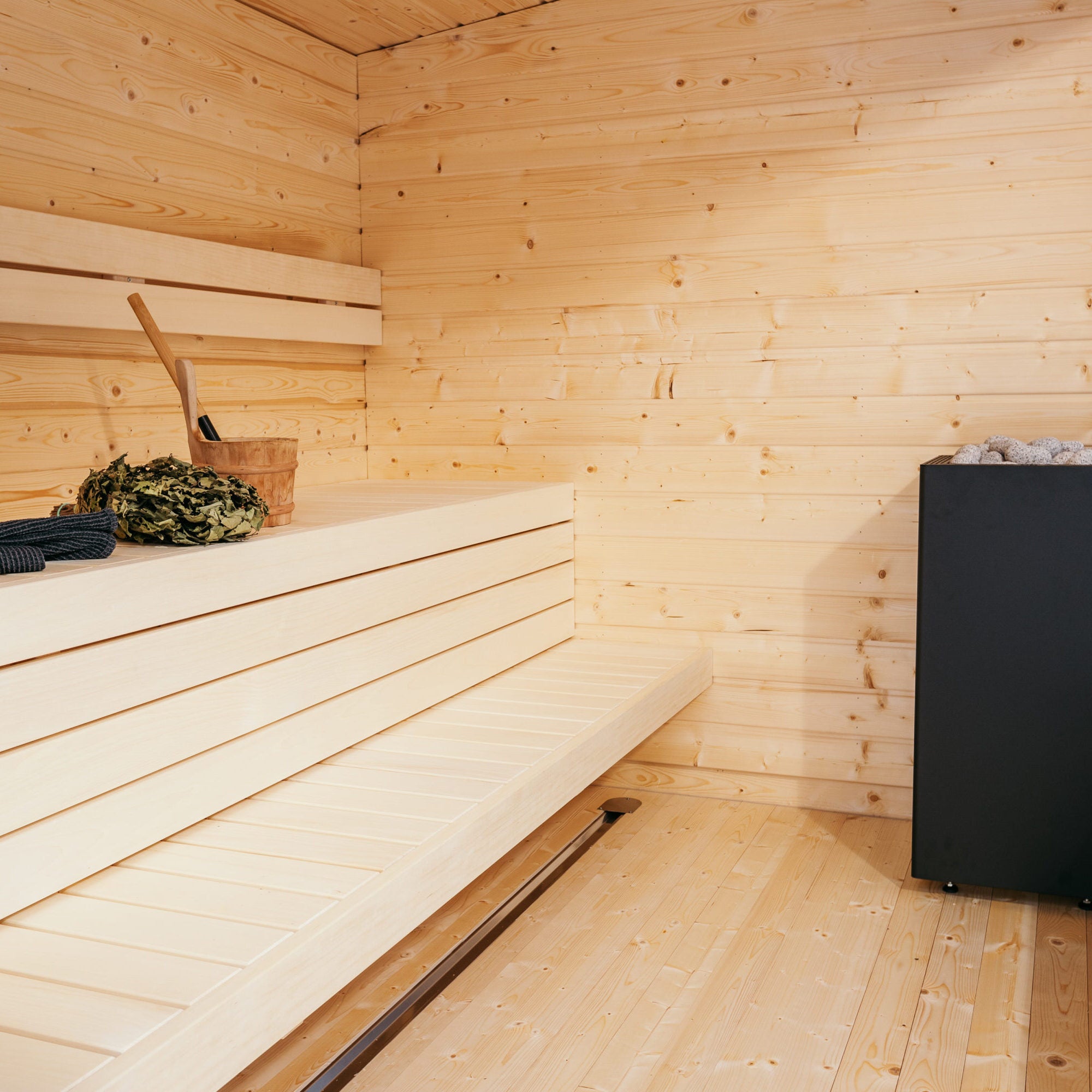

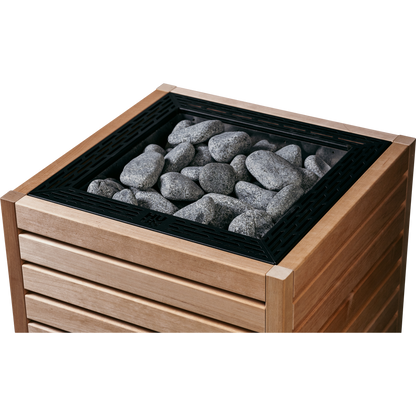

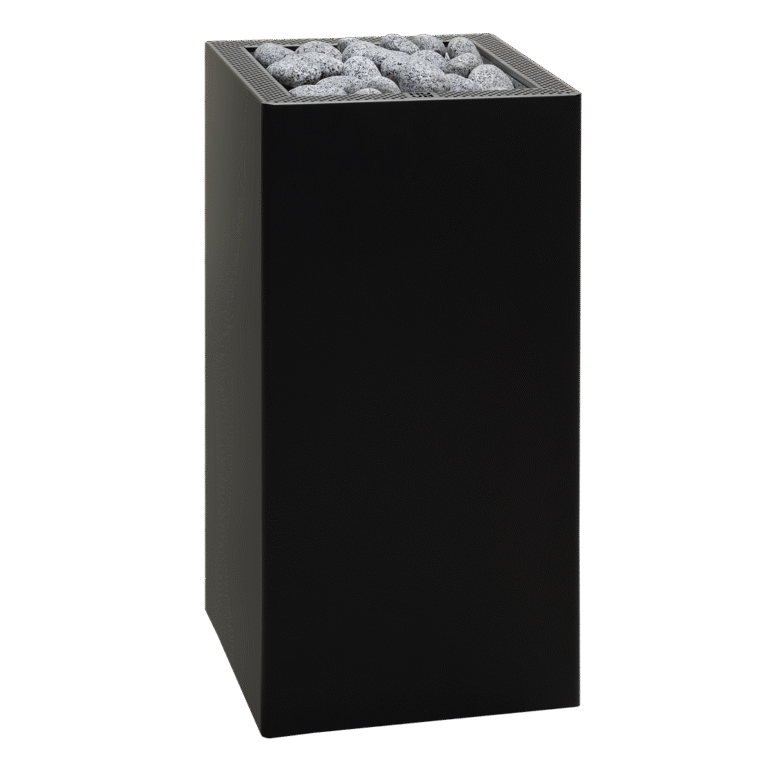

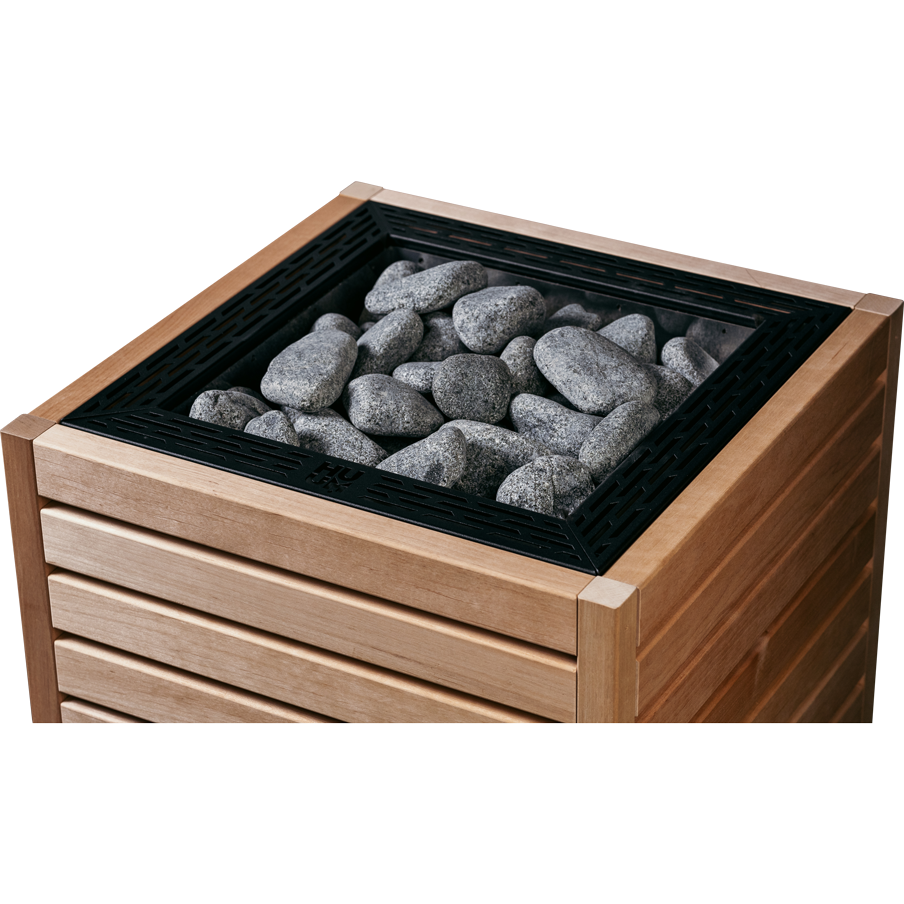

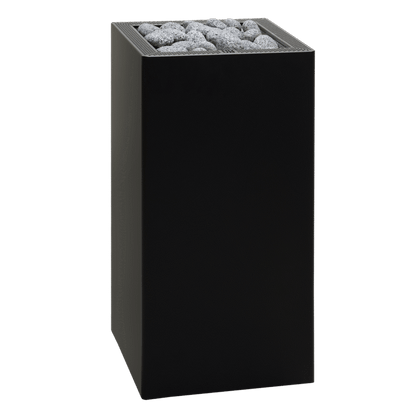

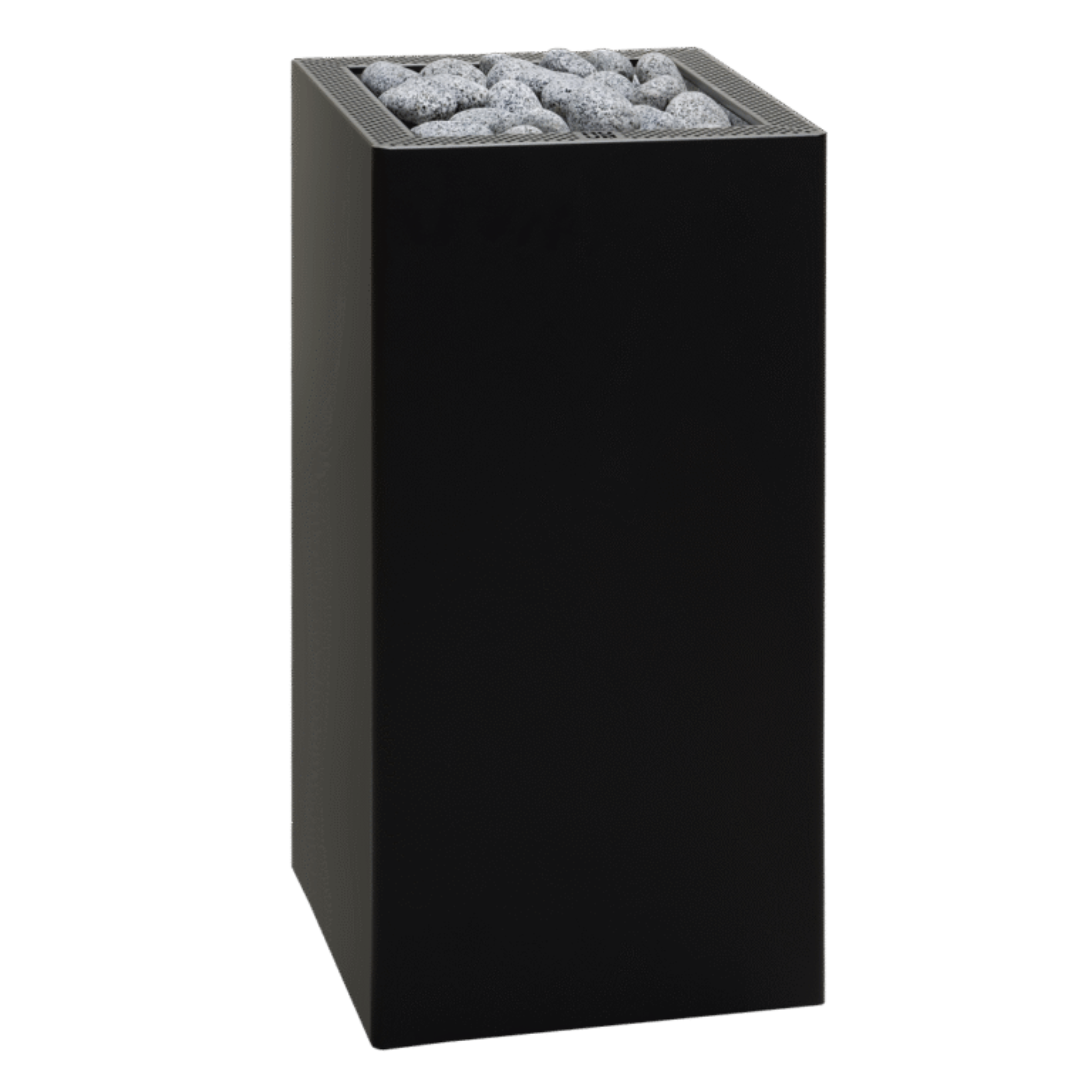

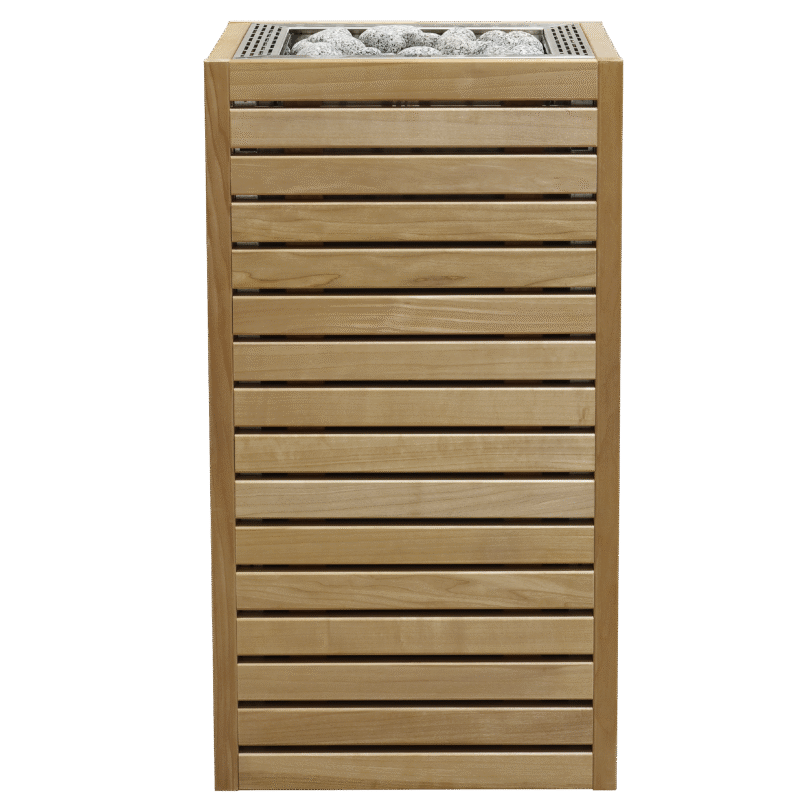

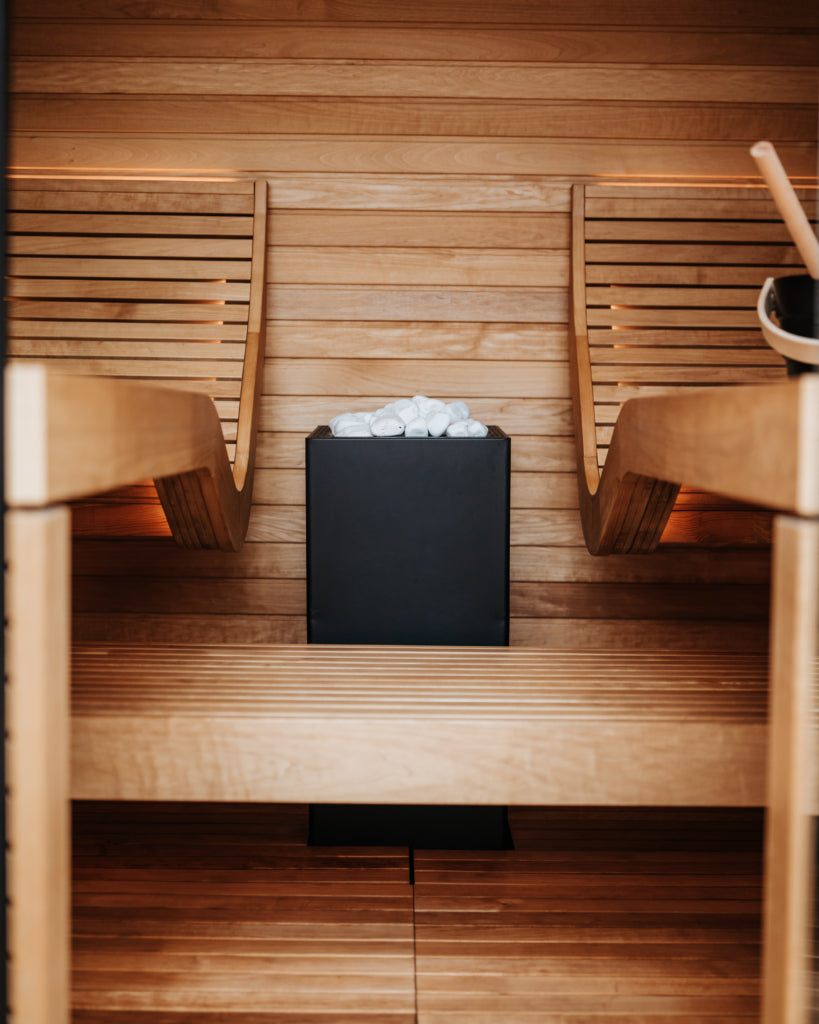

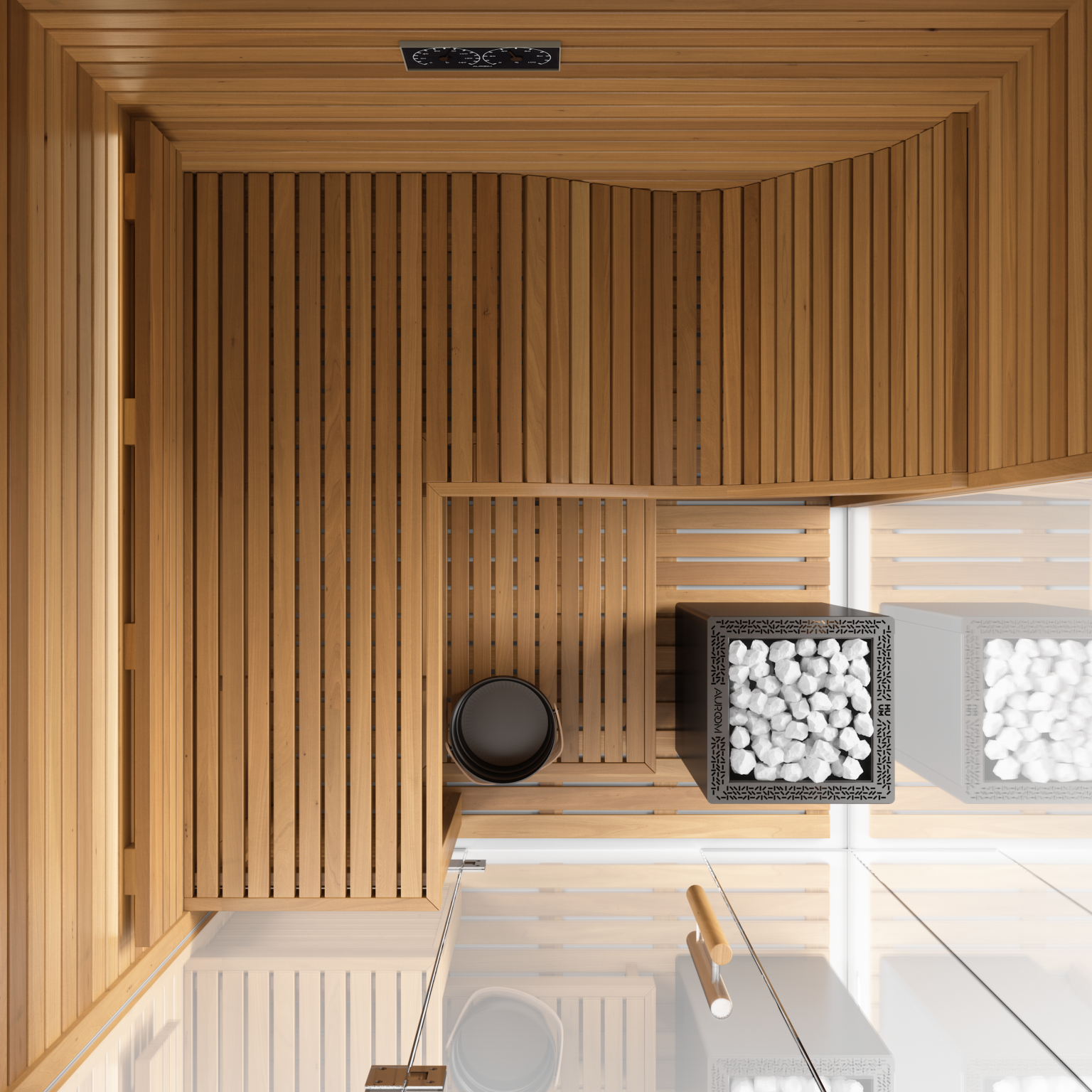

This electric sauna heater offers flexibility and style. It can be customized to suit your sauna design and comes in two options: CORE Black and CORE BK/ST. If you prefer a ready-made solution, the stylish CORE Black, with its sleek black metal casing, is a great choice. However, if you want a personalized design, the CORE BK/ST model without a case allows easy customization with ceramic tiles, stone, glass, or wood. You can also choose from different colored cover slats for the top rim and wooden side panels. Plus, the heater’s small safety distances allow for various placement options, including embedding it into the sauna bench. Despite its compact size, the powerful CORE sauna heater quickly heats up the steam room and provides a gentle steam experience.

• Customizable design
• Minimal safety distances
• Control from the mobile app

CORE 6kW

• Power rating 6kW
• Steam room min 5 m³
• Steam room max 9 m³
• Holding capacity of sauna rocks 30 kg
• Weight 19 kg
• Height 830 mm
• Width 385 mm
• Depth 385 mm

CORE 9kW

• Power rating 9kW
• Steam room min 8 m³
• Steam room max 13 m³
• Holding capacity of sauna rocks 30 kg
• Weight 19 kg
• Height 830 mm
• Width 385 mm
• Depth 385 mm

CORE 10.5kW

• Power rating 10,5kW
• Steam room min 10 m³
• Steam room max 16 m³
• Holding capacity of sauna rocks 30 kg
• Weight  19 kg
• Height 830 mm
• Width 385 mm
• Depth 385 mm

Heater additionally needs:

• UKU Sauna Control System

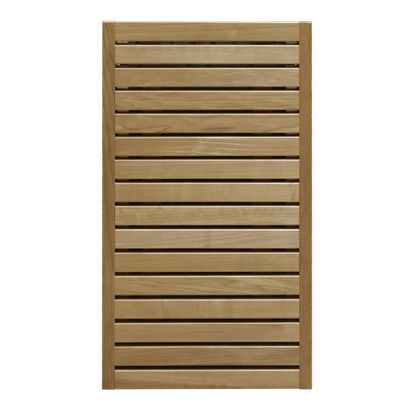

Available finishes:

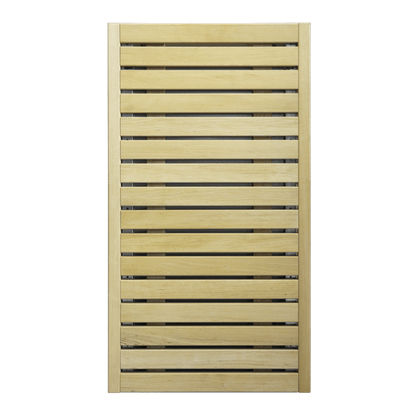

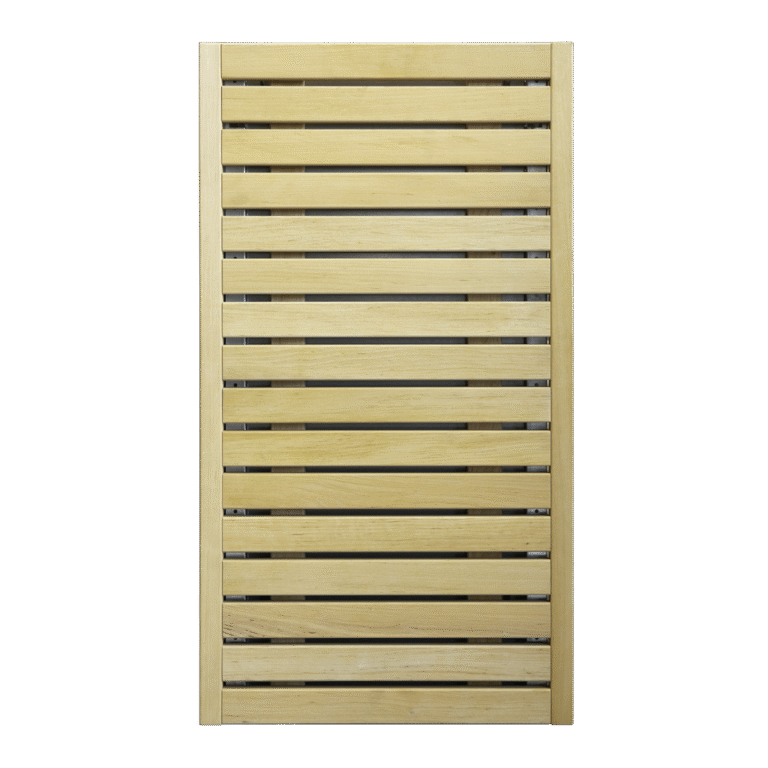

• alder

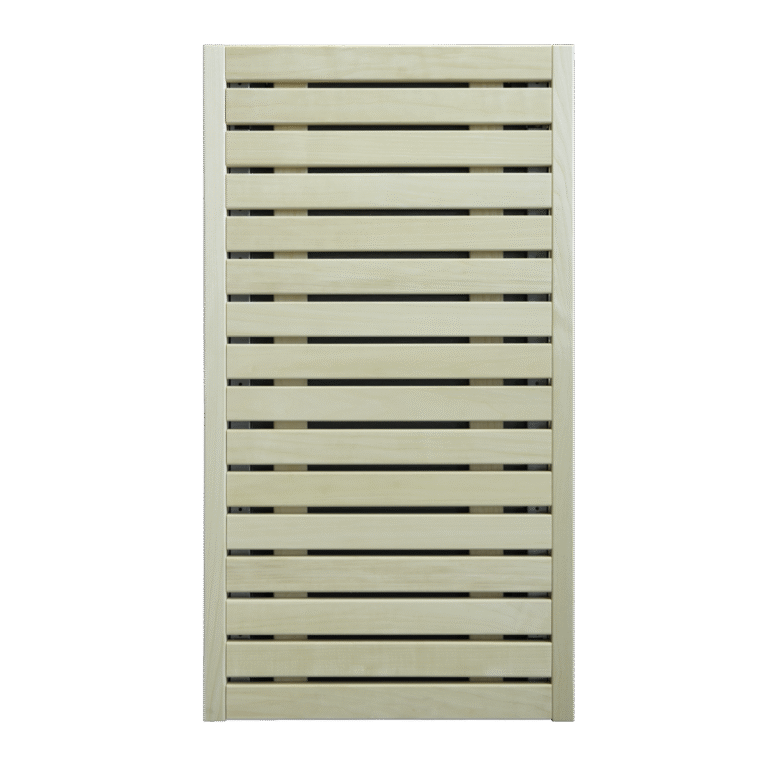

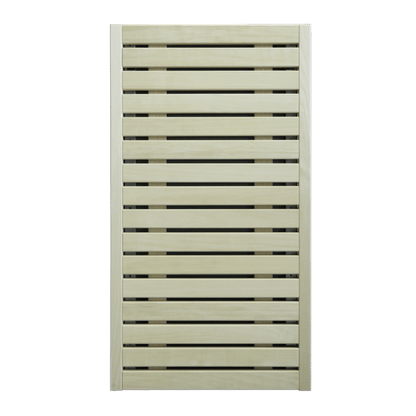

• aspen

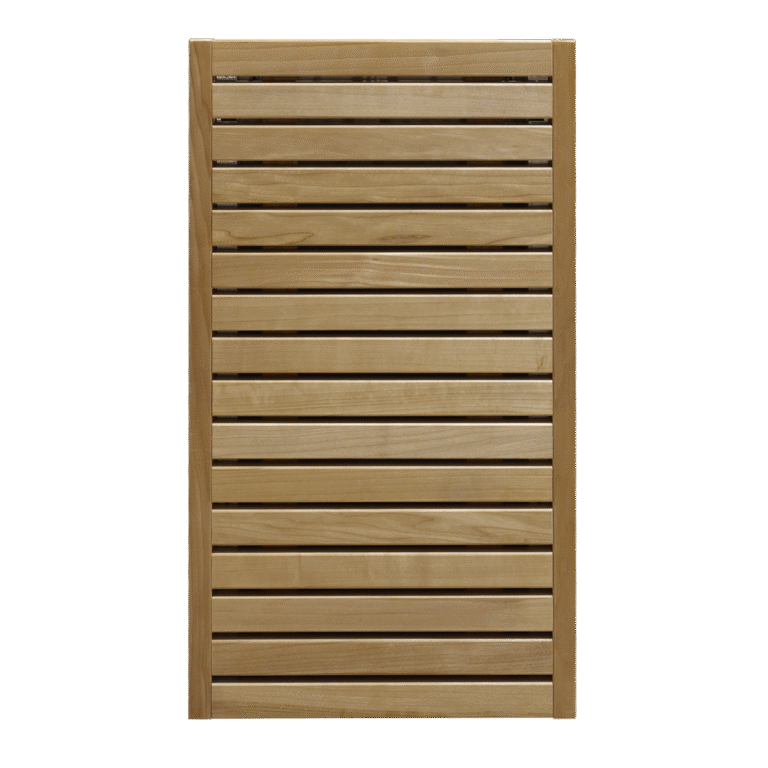

• thermo-aspen
• black

Connection:

• Fuse10 A
• Supply voltage, 3-phase3/N~400 V
• Power cable (N x mm²)5 x 1.5

230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

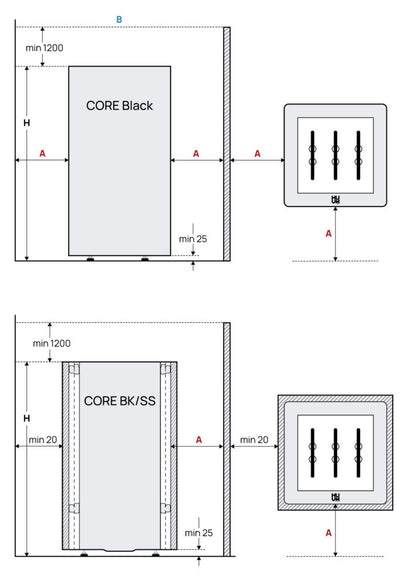

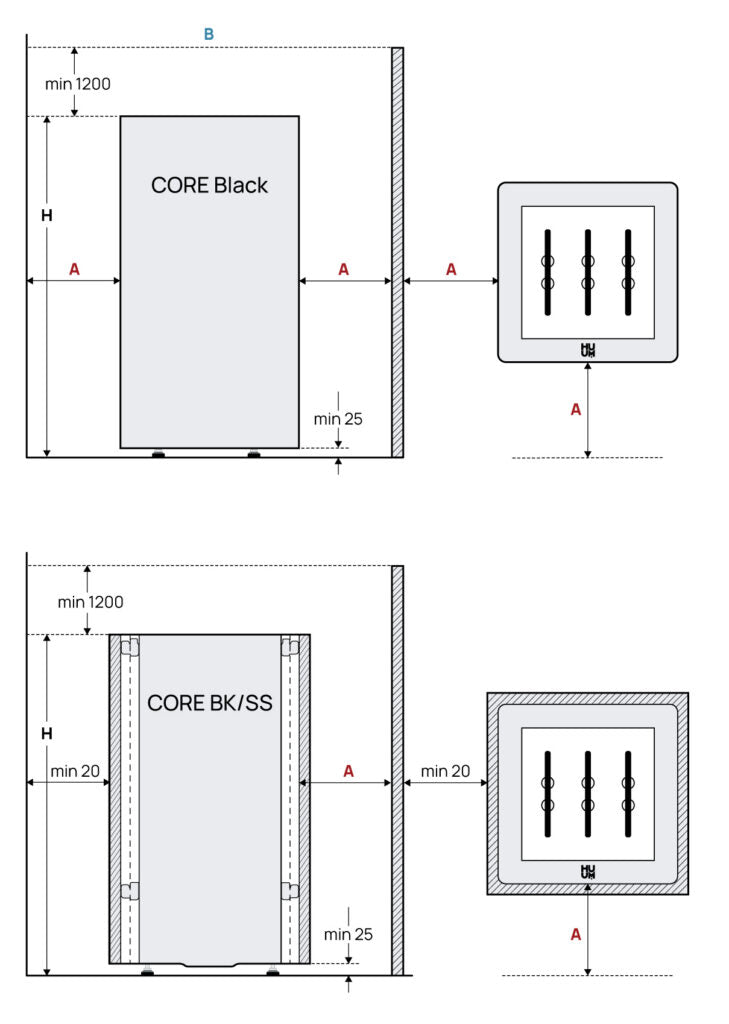

Safety distances (see the picture):

• A40 mm
• B465 mm
• H830 mm
