HUUM HIVE MINI SAUNA HEATER

HIVE Mini electric sauna heater is a smaller version of the popular HIVE sauna heater, perfect for slightly smaller saunas. With its round and majestic design, this sauna heater can still hold up to 150 kg of sauna stones, ensuring long-lasting and mild steam for sauna-goers. The details of the heater are made of durable stainless steel. Its compact size doesn’t compromise on performance, making it a great option for those who want a high-quality sauna experience without needing a larger heater.

Starting from 2025, the air tunnel of HIVE is included as a standard component with all HIVE models.

• Stone-emphasizing design
• Mild and long-lasting steam
• Control with mobile app

HIVE Mini 6

• Power rating6 kW
• Steam room min5 m³
• Steam room max9 m³
• Holding capacity of sauna rocks150 kg
• Weight16 kg
• Height750 mm
• Diameter460 mm

HIVE Mini 9

• Power rating9 kW
• Steam room min8 m³
• Steam room max13 m³
• Holding capacity of sauna rocks150 kg
• Weight18 kg
• Height750 mm
• Diameter460 mm

HIVE Mini 11

• Power rating10,5 kW
• Steam room min10 m³
• Steam room max16 m³
• Holding capacity of sauna rocks150 kg
• Weight18 kg
• Height750 mm
• Diameter460 mm

Heater additionally needs:

• UKU Sauna Control System

Connection:

• Fuse16 A
• Supply voltage, 3-phase3/N~400 V
• Power cable (N x mm²)5 x 2.5

230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

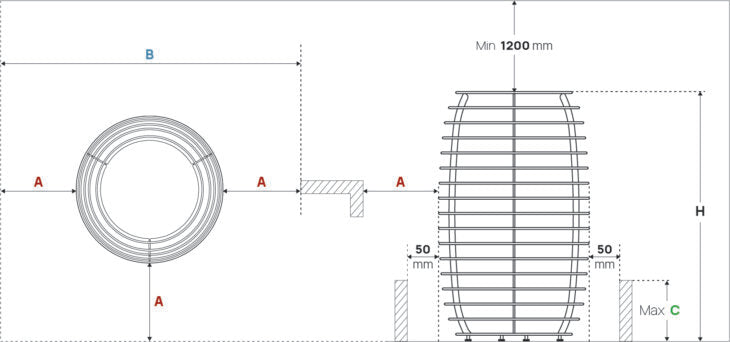

Safety distances (look at the picture):

• A110 mm
• B680 mm
• C400 mm
• H750 mm
