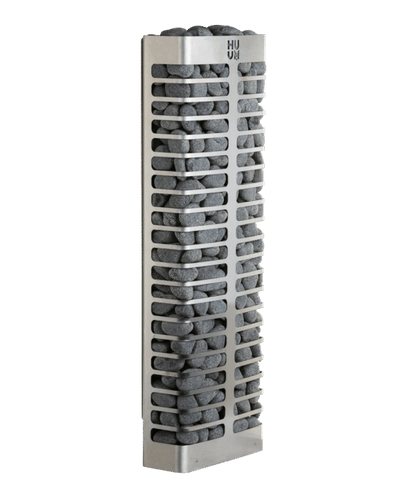

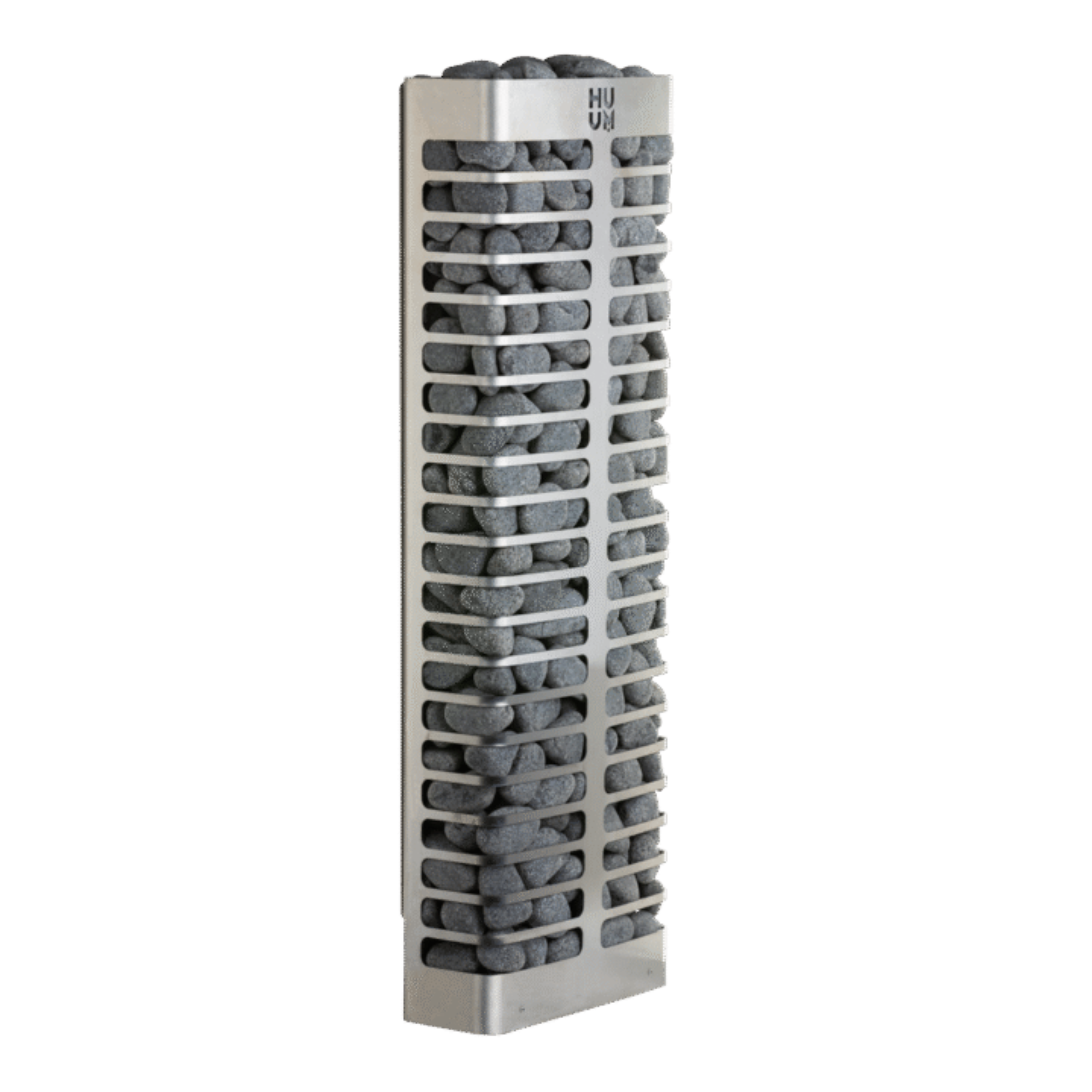

HUUM STEEL SAUNA HEATER

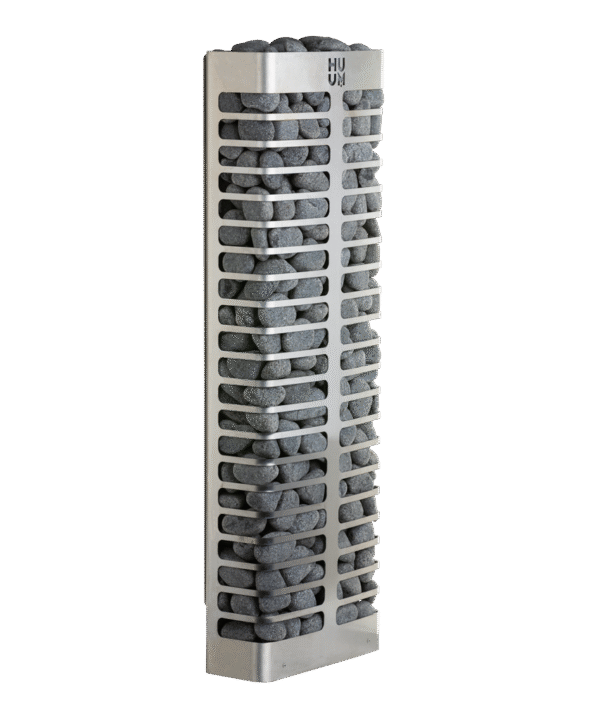

STEEL electric sauna heater is a classy and powerful pick for a modern home sauna. With a sleek design and small safety distances, this heater is perfect for compact steam rooms. But don’t let its slender shape mislead you – the built-in air tunnel ensures effective airflow and quick heating. Plus, the heater holds a large amount of sauna stones for gentle and long-lasting steam. And let’s not forget about its eye-catching stainless steel enclosure, which creates a stunning contrast with the natural sauna stones.

• Stylish and eye-catching design
• Mild and long-lasting steam
• Control with mobile app

STEEL 4

• Power rating 3,5kW
• Steam room min 3 m³
• Steam room max 5 m³
• Holding capacity of sauna rocks 60 kg
• Weight 14,5 kg
• Height 975 mm
• Width 310 mm
• Depth 160 mm

STEEL 6

• Power rating 6kW
• Steam room min 5 m³
• Steam room max 9 m³
• Holding capacity of sauna rocks 150 kg
• Weight 15 kg
• Height 975 mm
• Width 320 mm
• Depth 320 mm

STEEL 9

• Power rating 9kW
• Steam room min 8 m³
• Steam room max 13 m³
• Holding capacity of sauna rocks 150 kg
• Weight 15 kg
• Height 975 mm
• Width 320 mm
• Depth 320 mm

STEEL 10.5

• Power rating 10,5kW
• Steam room min 10 m³
• Steam room max 16 m³
• Holding capacity of sauna rocks 150 kg
• Weight 16 kg
• Height 975 mm
• Width 320 mm
• Depth 320 mm

Heater additionally needs:

• UKU Sauna Control System

Connection:

• Fuse16 A
• Supply voltage, 1-phase1/N~230V
• Power cable (N x mm²)3 x 2,5

230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

Safety distances (see the picture):

• A50 mm
• B420 mm
• C310 mm
• D160 mm
• H975 mm
