HUUM CLIFF SAUNA HEATER

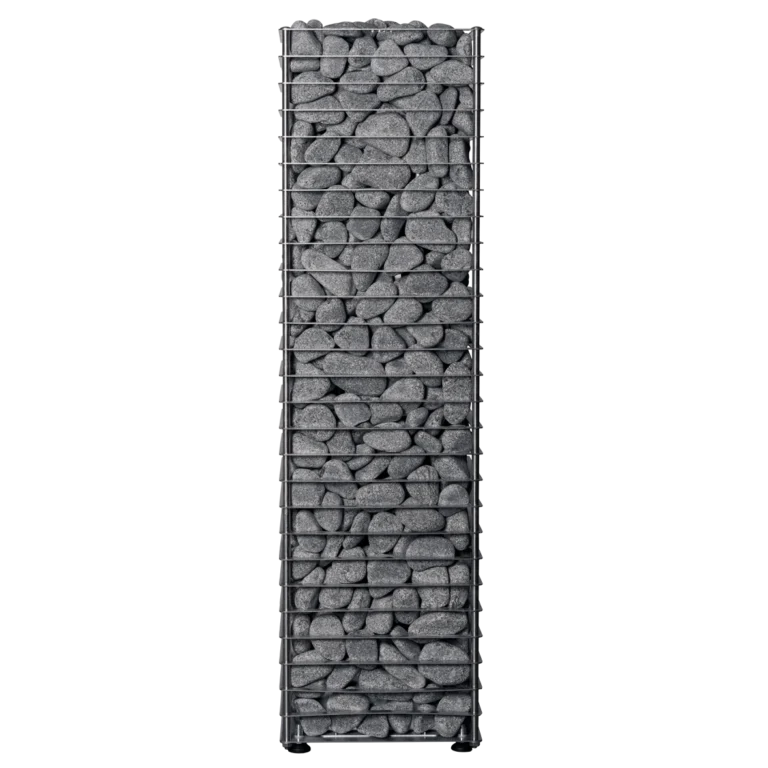

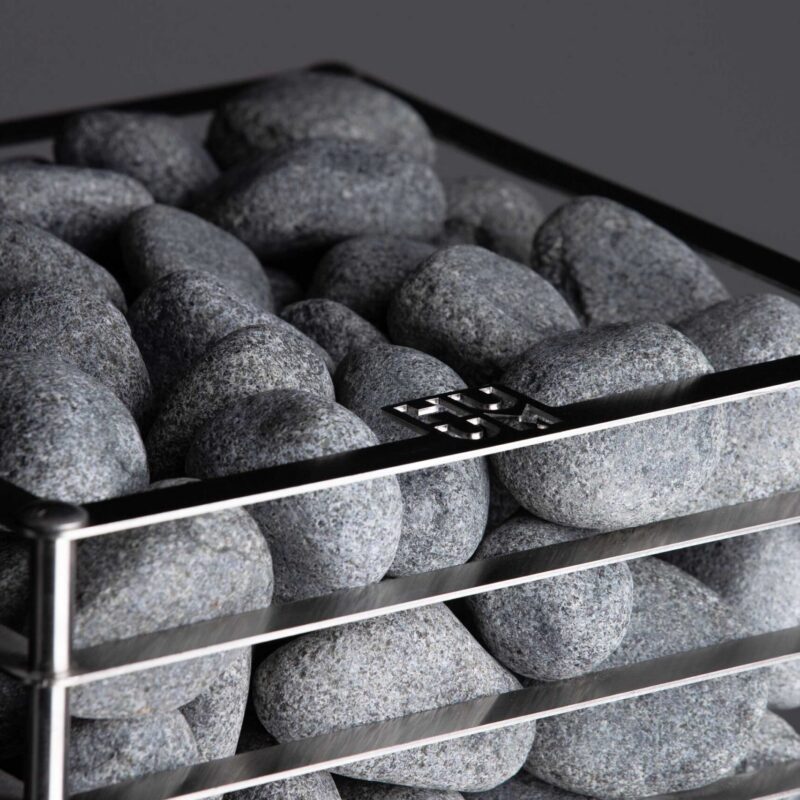

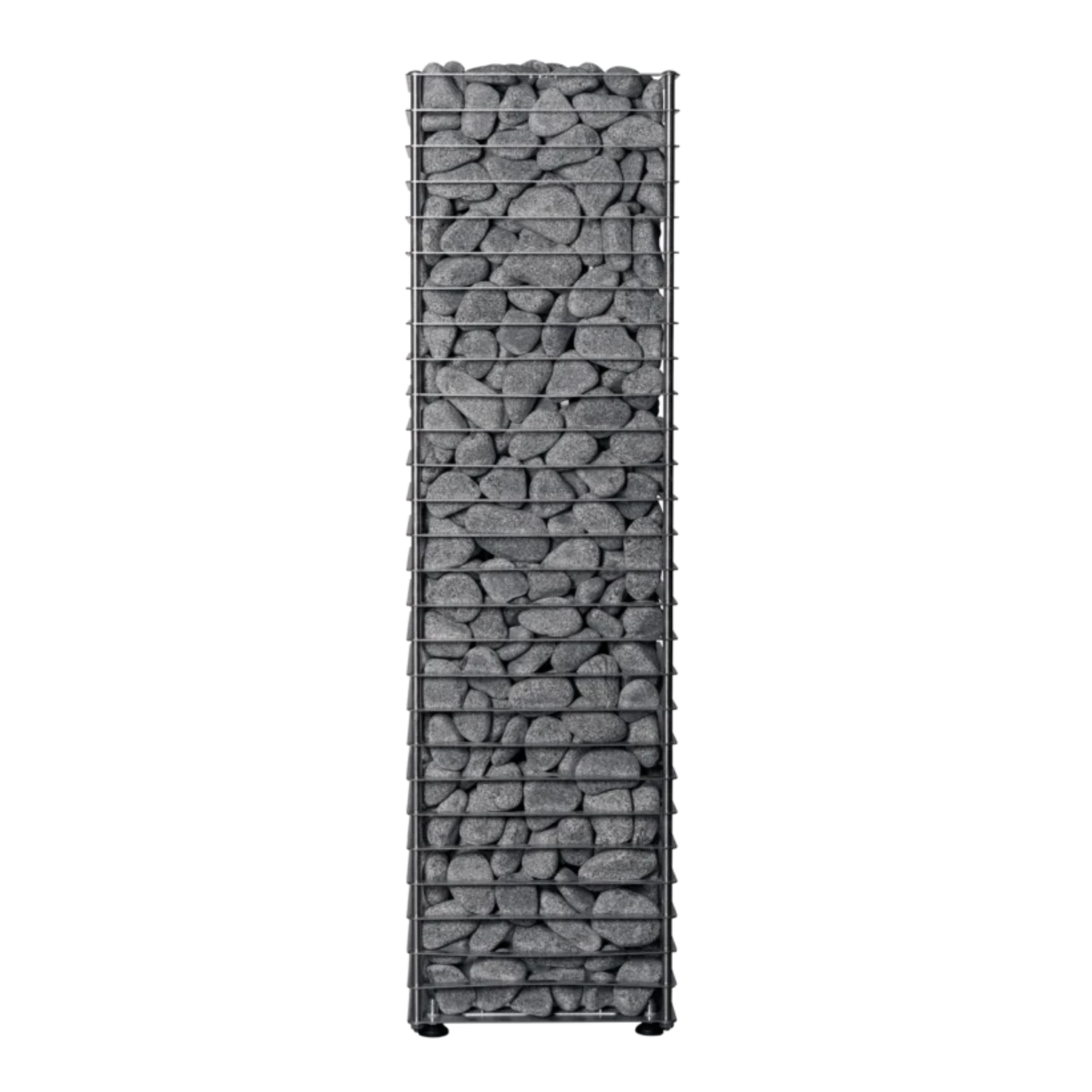

CLIFF electric sauna heater has a stunning natural stone surface that reflects the nature of Nordic cliffs. But what sets this sauna heater apart is not only its eye-catching appearance but also its efficient and environmentally conscious design. The body of the heater is made from cutouts of a stainless steel sheet created during the production of STEEL electric heaters, which eliminates metal waste and ensures full use of all material.

The heater has small safety distances and a slim shape, making it suitable for smaller sauna rooms. The internal air tunnel accelerates heating by 25% and extends the life of the heating elements. With a large amount of stones, the CLIFF heater provides mild and long-lasting steam, ensuring a relaxing sauna experience. In 2021 the CLIFF heater won the RedDot Award for product design.

• Environmentally conscious design
• Mild and long-lasting steam
• Control with mobile app

CLIFF Mini 4

• Power rating 3,5kW
• Steam room min 3 m³
• Steam room max 5 m³
• Holding capacity of sauna rocks 60 kg
• Weight 15 kg
• Height 975 mm
• Width 270 mm
• Depth 160 mm

CLIFF 6

• Power rating 6 kW
• Steam room min 5 m³
• Steam room max 9 m³
• Holding capacity of sauna rocks 75 kg
• Weight 16 kg
• Height 975 mm
• Width 270 mm
• Depth 270 mm

CLIFF 9

• Power rating 9 kW
• Steam room min 8 m³
• Steam room max 13 m³
• Holding capacity of sauna rocks 75 kg
• Weight 16 kg
• Height 975 mm
• Width 270 mm
• Depth 270 mm

CLIFF 11

• Power rating 10,5 kW
• Steam room min 10 m³
• Steam room max 16 m³
• Holding capacity of sauna rocks 75 kg
• Weight 17 kg
• Height 975 mm
• Width 270 mm
• Depth 270 mm

Heater additionally needs:

• UKU Sauna Control System

Connection:

• Fuse16 A
• Supply voltage, 3-phase3/N~400V
• Power cable (N x mm²)5 x 2.5

230V 1N connection is analogous to a 3-phase connection. Division of heating circuits must precede the circuit breaker.

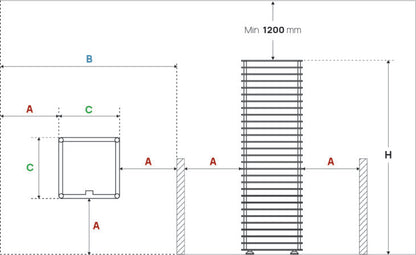

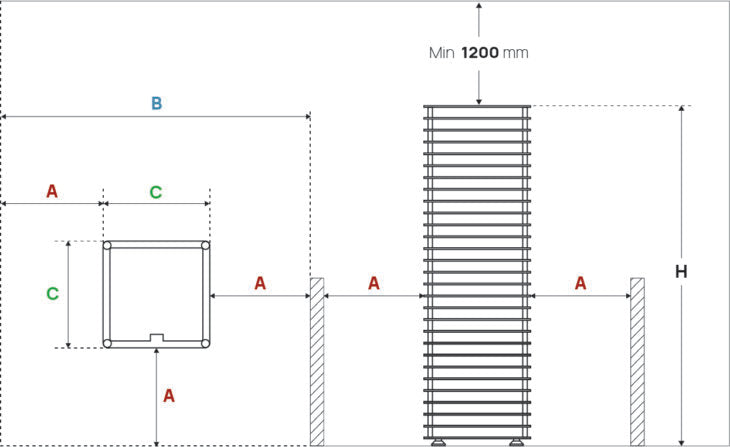

Safety distances (look at the picture):

• A240 mm
• B750 mm
• C270 mm
• H975 mm
