Fratelli Malin Industrial Drain

DESCRIPTION

Stainless steel collection and drainage systems arise from the need to dispose of washing liquids and processing liquids as quickly as possible. Channel drains made entirely of AISI 304 stainless steel (316 on request).

For this reason, stainless steel channels find their ideal location in environments where hygiene is of primary importance, in fact the particular shape of the bottom of the channel, the internal slope of 5 mm per meter and the particularly "smooth" material avoid the sediment of solid materials and favor the outflow of drained liquids.

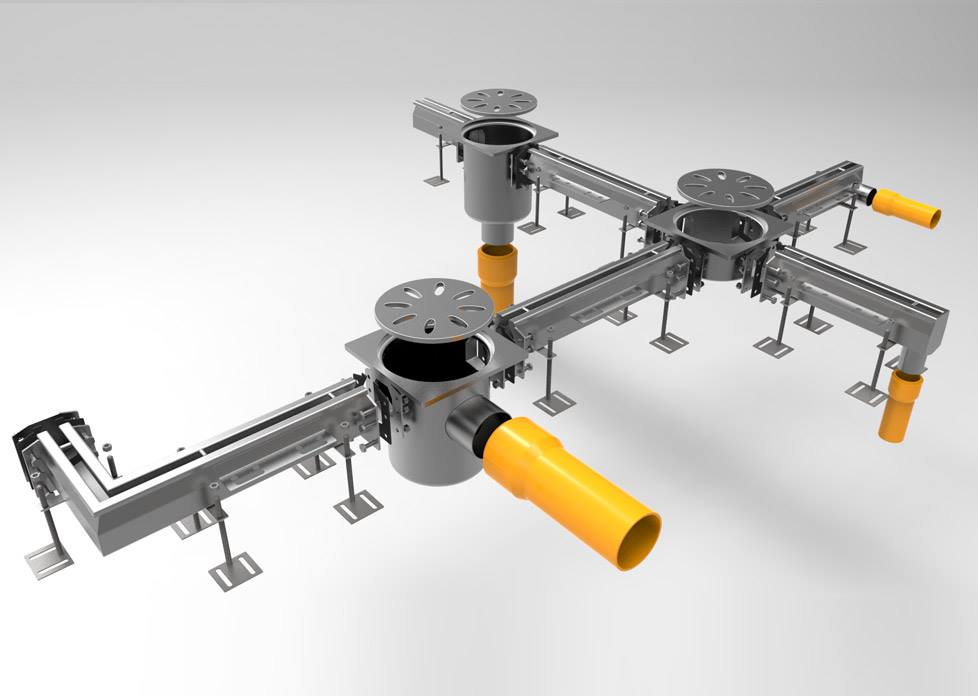

Each line is tailor-made according to the customer's needs by agreeing on the length, the shape of the line and placing one or more drains in the best positions.
We will therefore provide you with a simple and intuitive drawing with all the dimensions necessary for installation

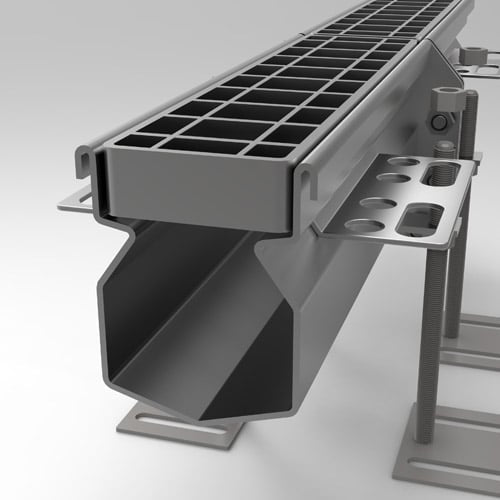

Each individual module is equipped with adjusting screws and leveling feet in order to position the channels in the best possible way during installation operations.
The junction between the modules is carried out by means of flanges with relative gaskets and stainless steel bolts that guarantee the perfect watertightness of the channel.
The installation kit, present in each supply, includes detailed and numbered diagrams for the correct assembly sequence, installation and storage advice.

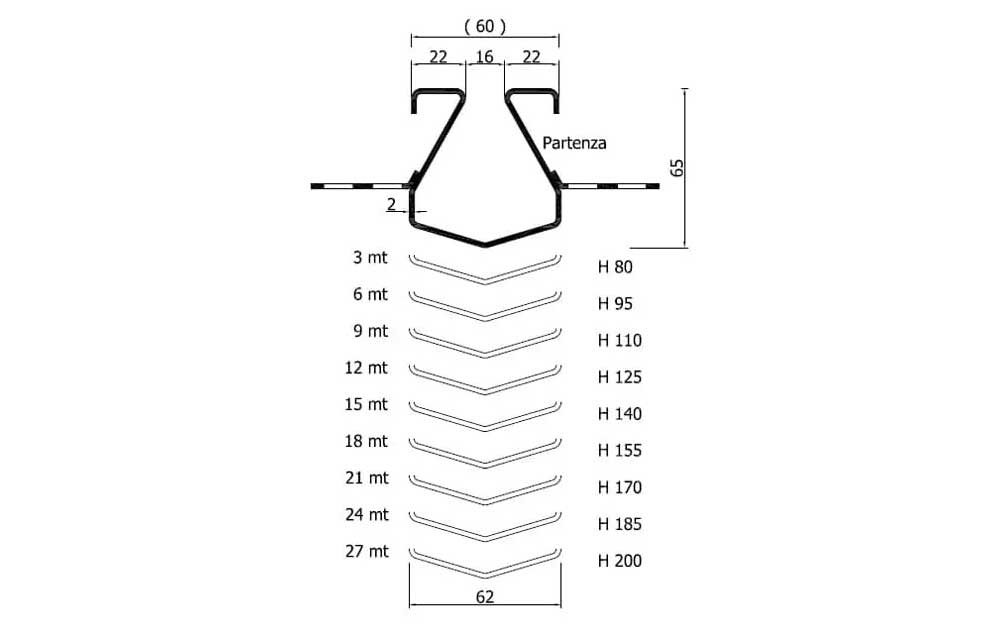

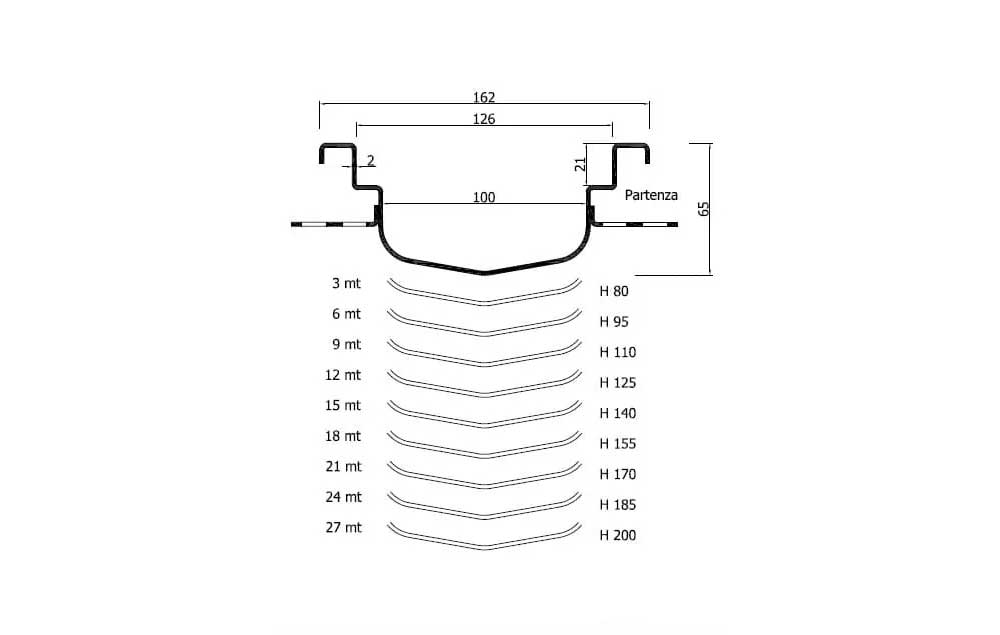

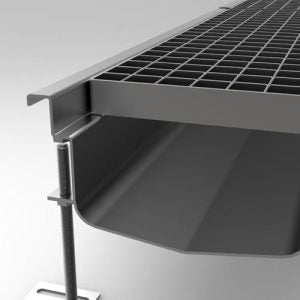

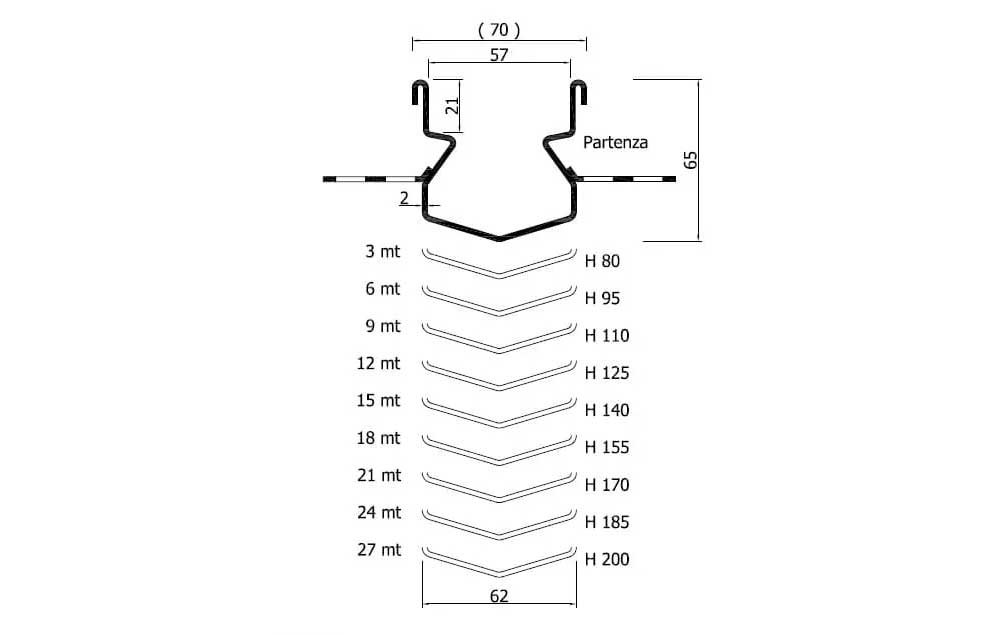

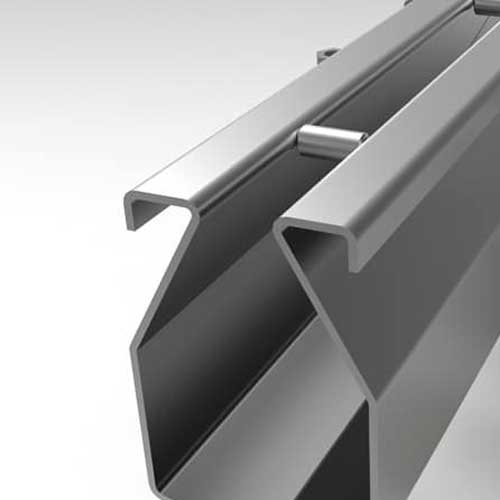

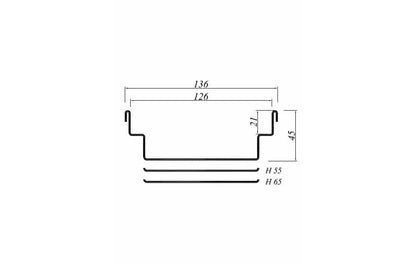

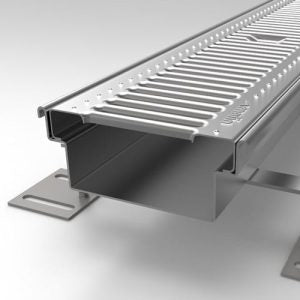

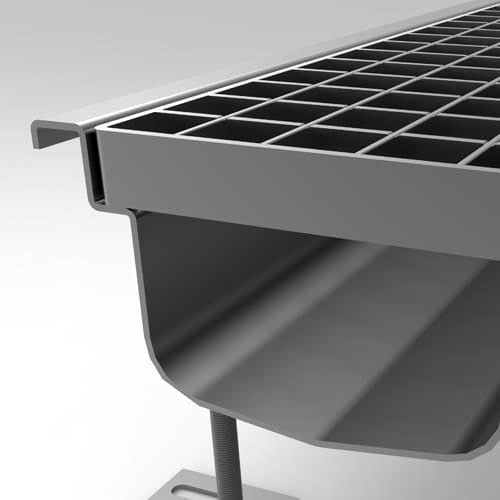

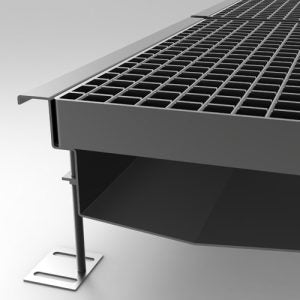

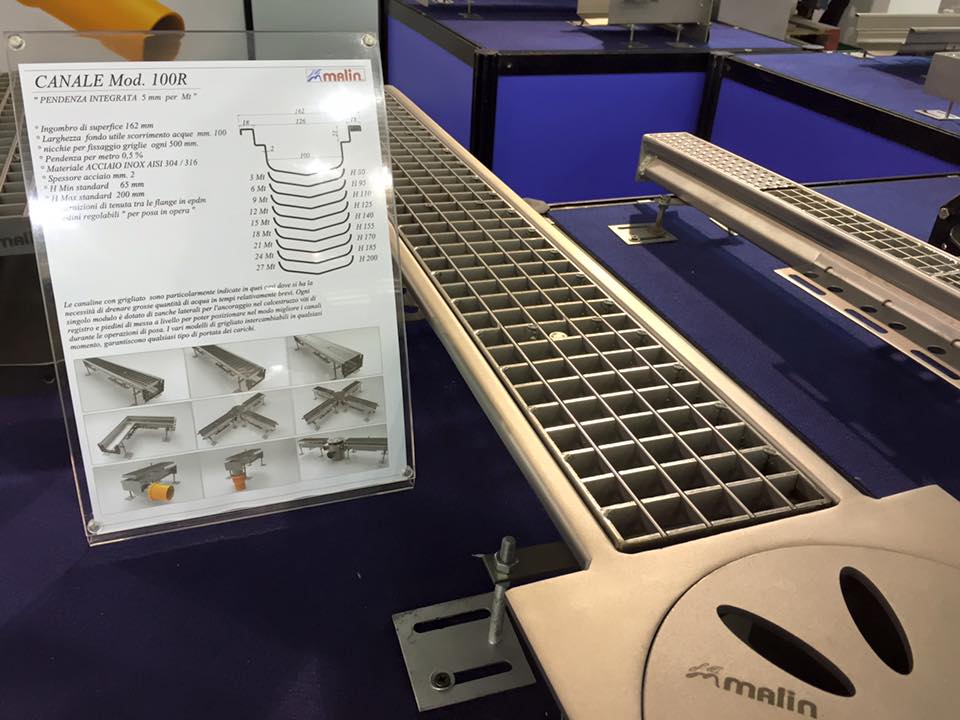

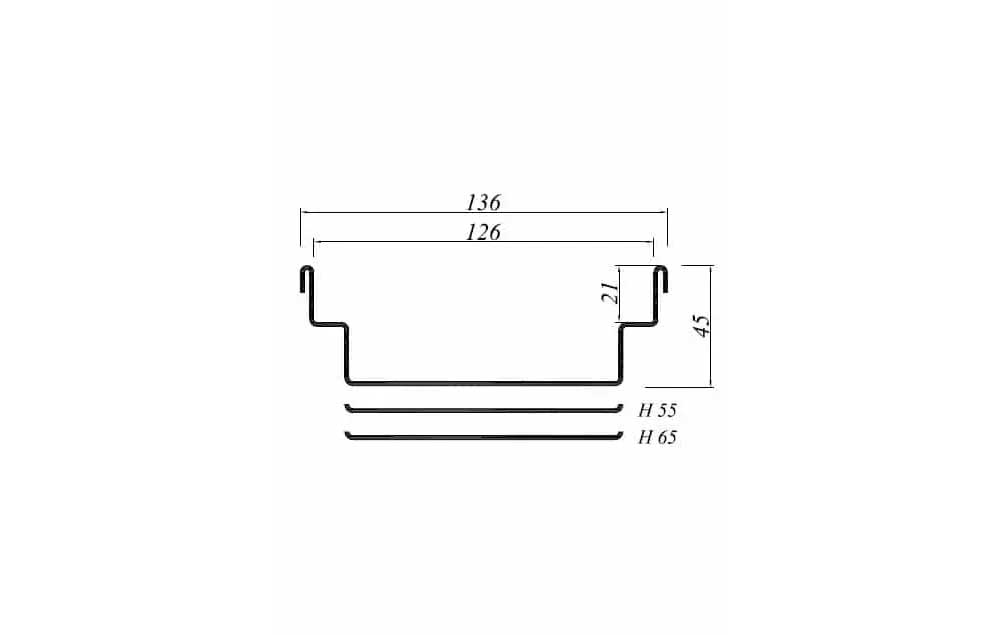

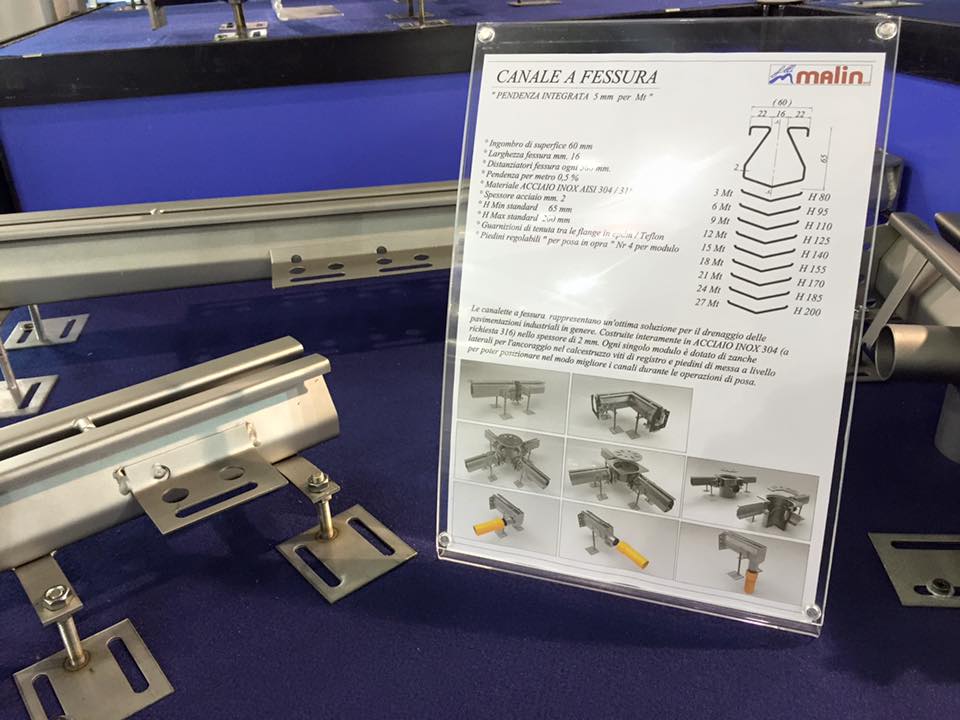

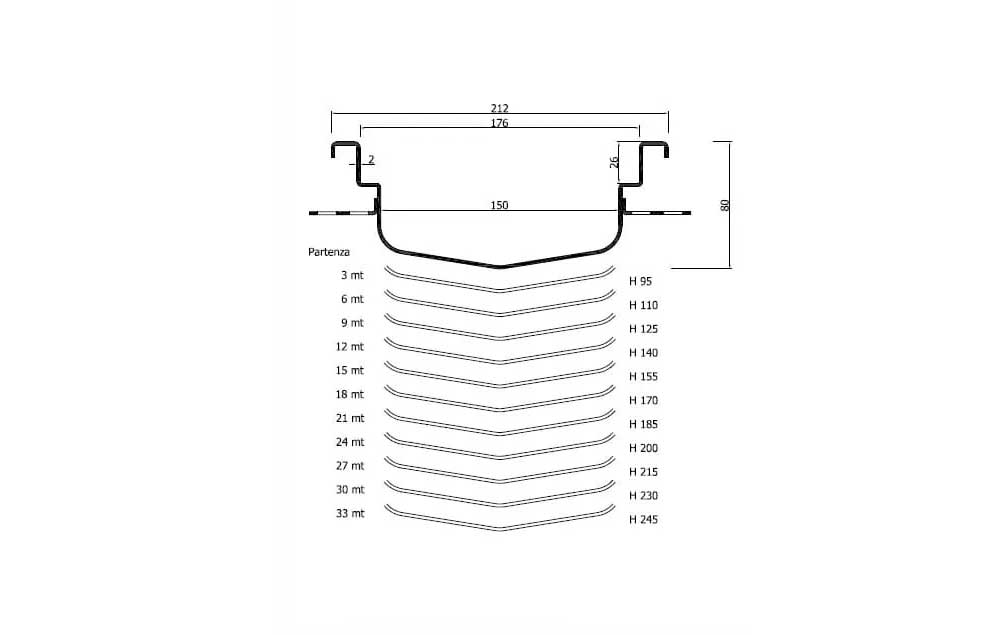

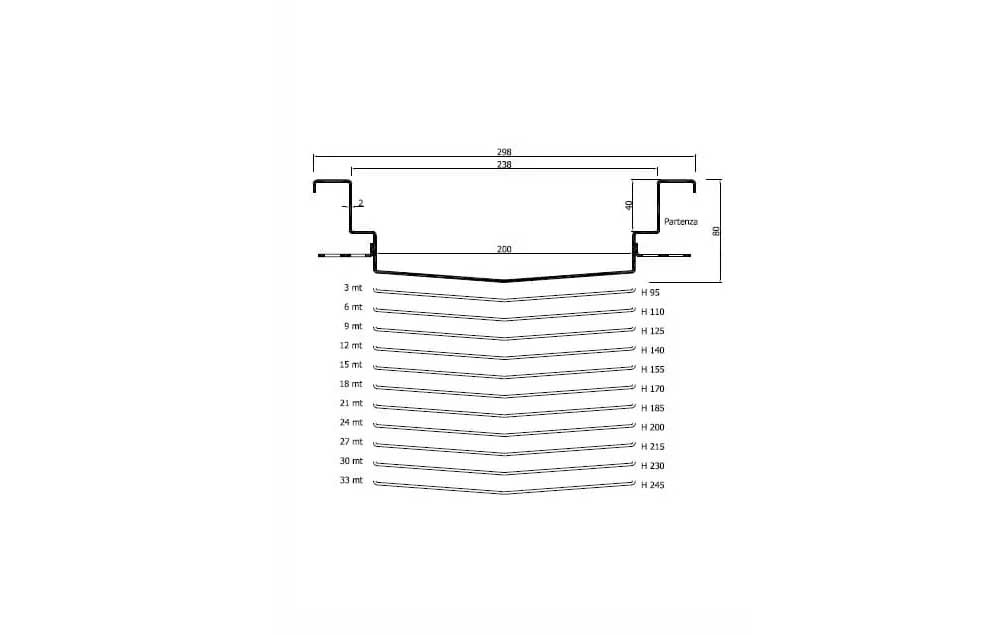

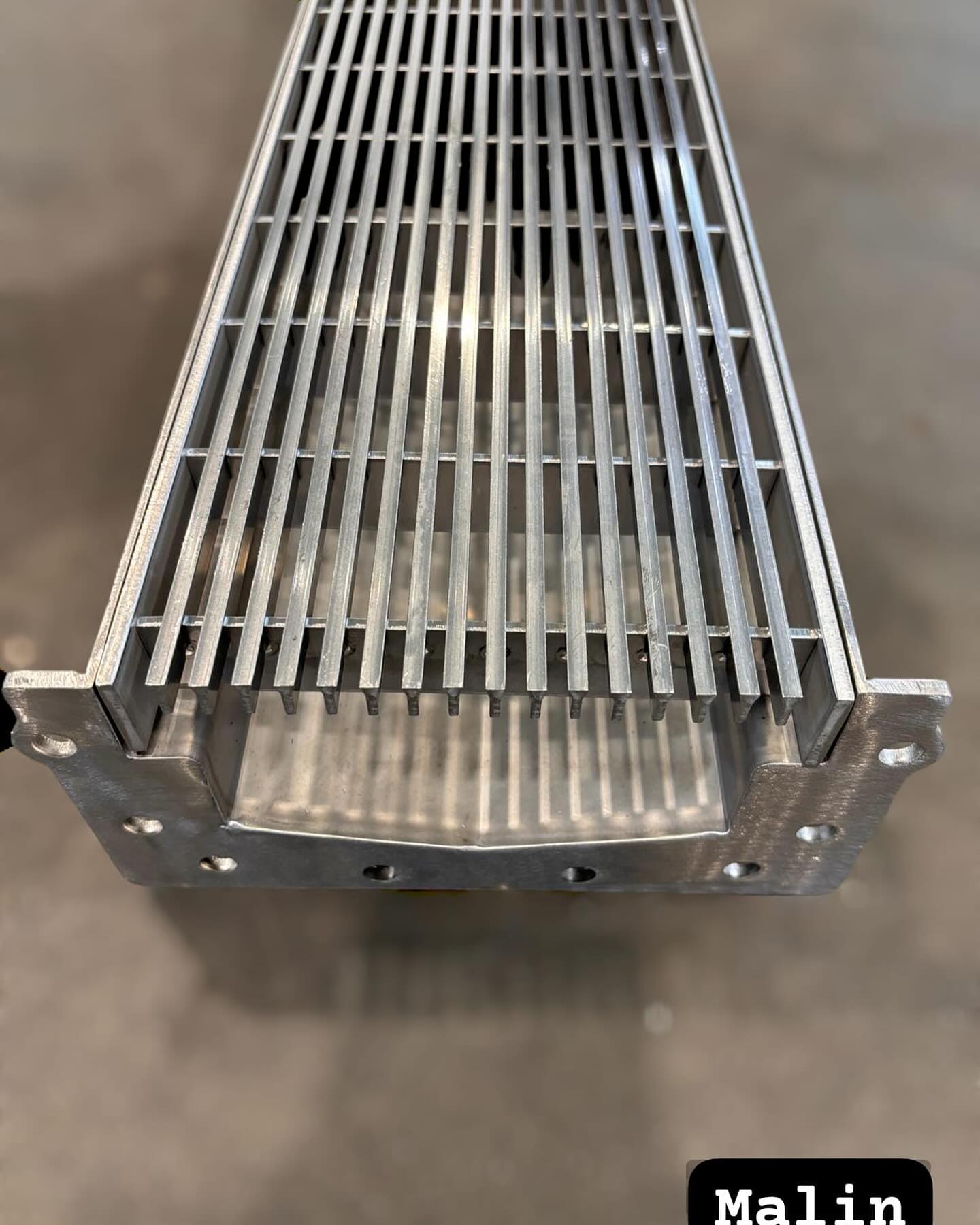

Available models: SLIT, M60 GRILLE, M100R GRID, M100P GRID, M150R GRILLE, M200R GRILLE.

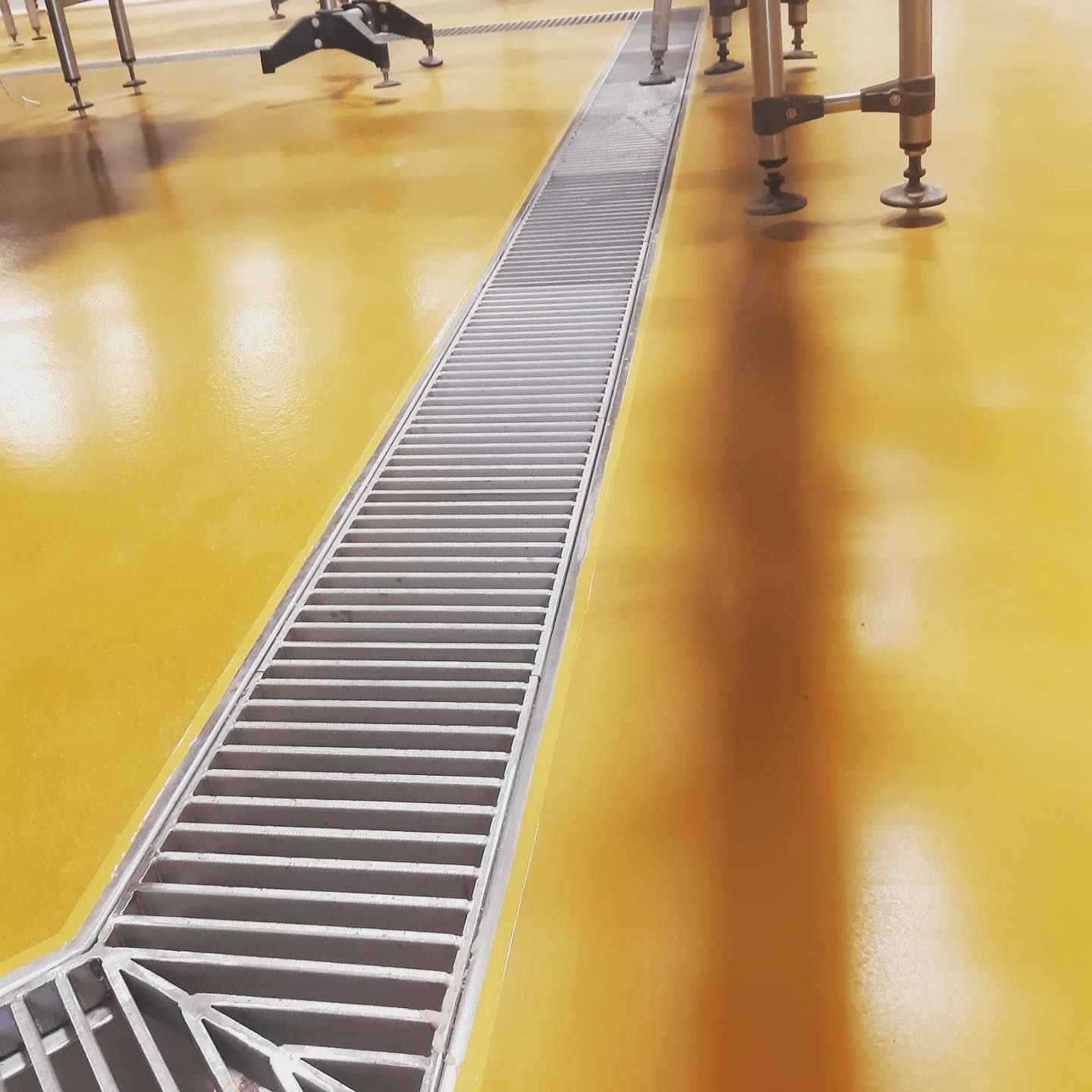

The wide range of drainage systems such as slotted channels and channels with grating complete with siphon drain sump are mainly installed in the processing environments of the following sectors:

• Agri-food in general

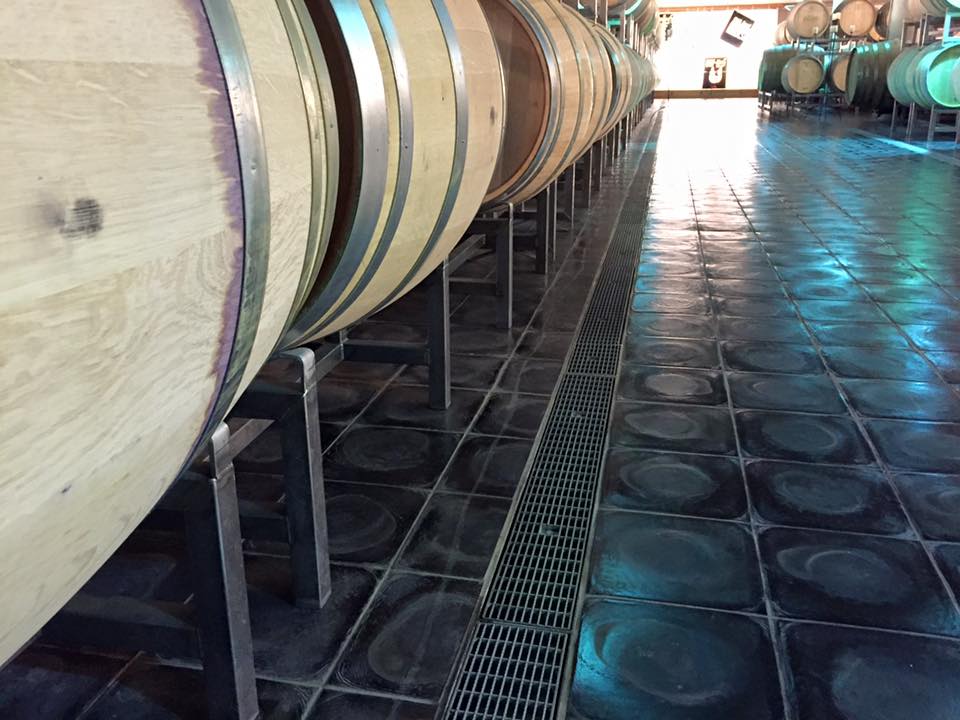

• Oenological – Beverages
• Food processing
• Catering
• Fishmongers, fish farms
• Dairies
• Slaughterhouses
• Chemical
• pharmaceutical
• Hospital
• Healthcare
• Sports

CHARACTERISTICS / ADVANTAGES

• Effective and fast disposal thanks to the size of the channel body

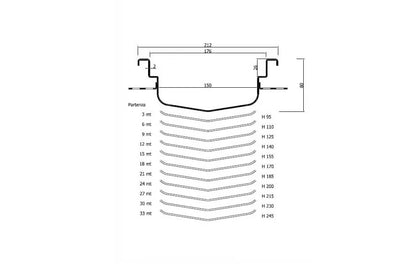

• The "V" shape of the bottom and the internal slope of 5.0 mm/mt prevent the stagnation of liquids inside the channel

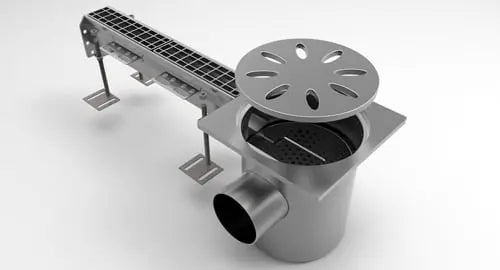

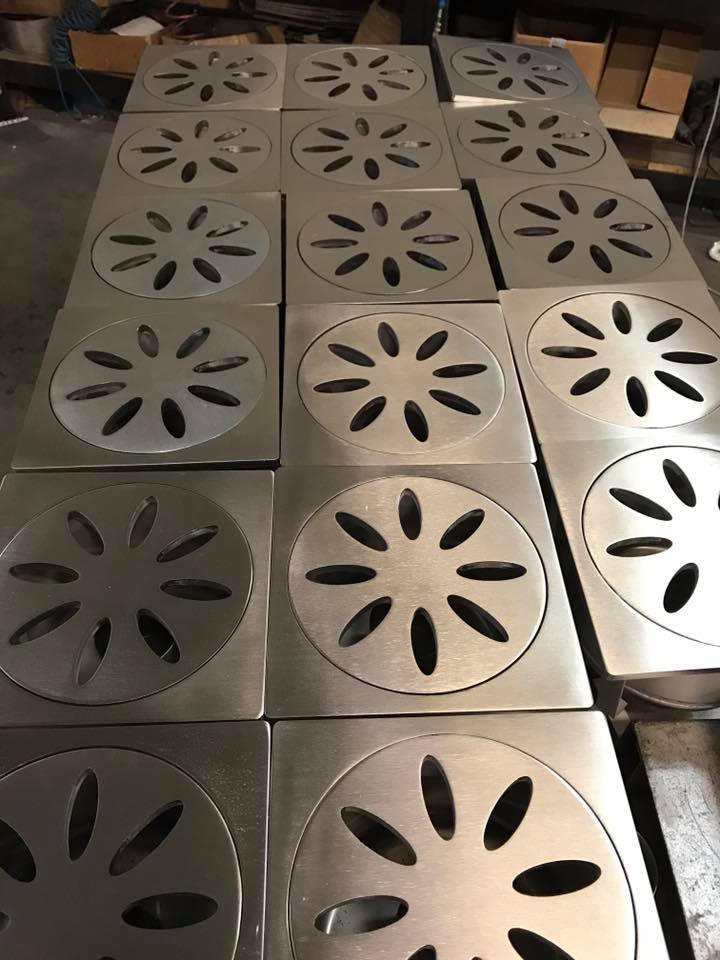

• The discharge is made to measure and can be through an inspection pit that includes a basket for collecting solids, or with a simple drain pipe

• Without internal slope (where there is little space available)
• With internal slope 15 mm on 3 meters
• Maximum module length 3m
• Lead time from drawings to delivery ca. 6-8 weeks

WHAT’S IN THE BOX

1. Drain Linear Meters Ordered
2. Sump(s)
3. Gaskets
4. Stainless Steel Bolts
5. Installation Manual
