Floor Laser

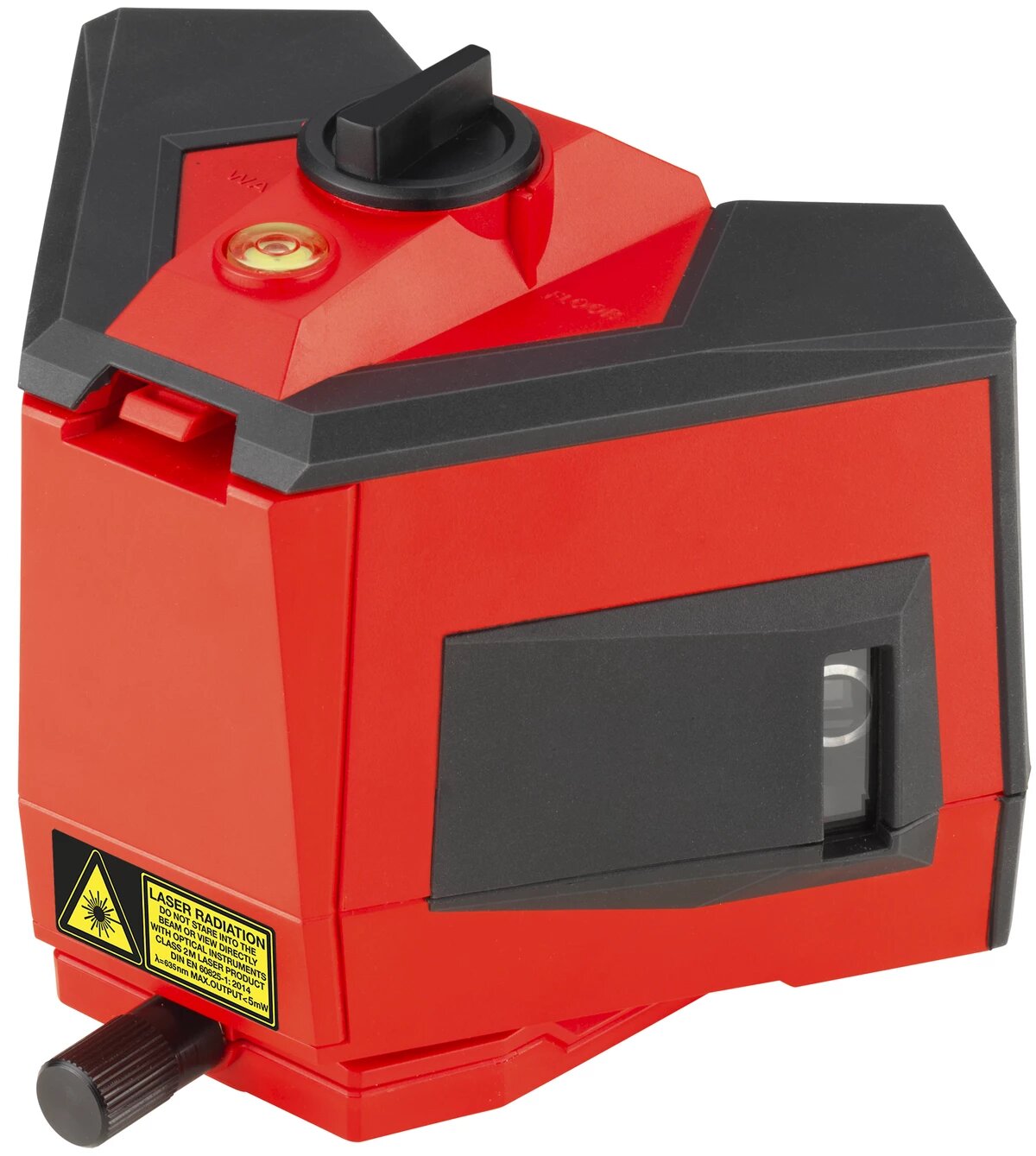

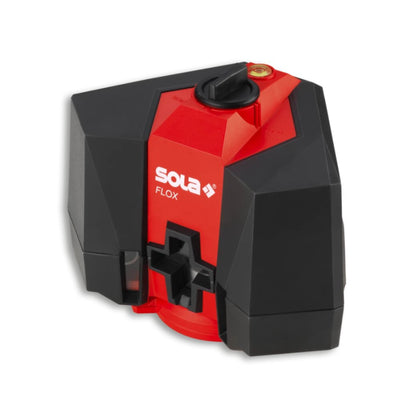

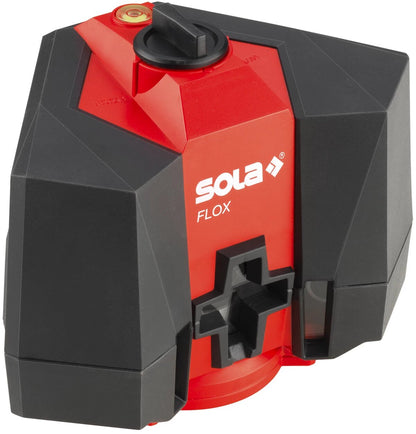

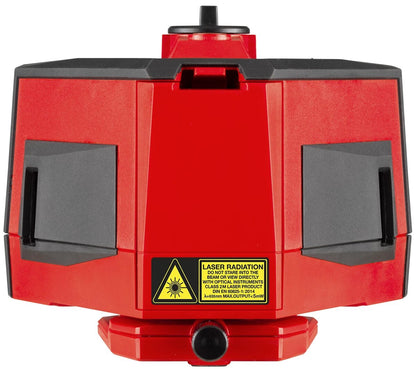

Floor Laser SOLA FLOX

• Horizontal levelling
• Vertical levelling

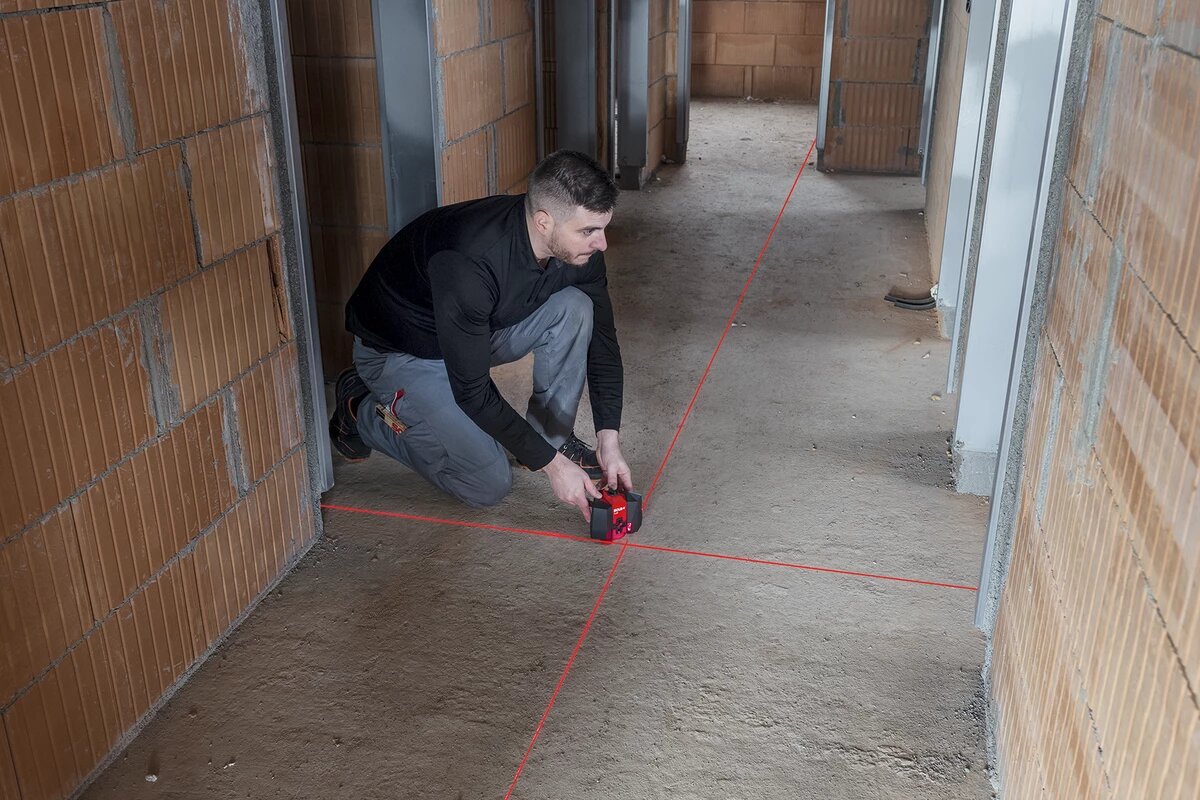

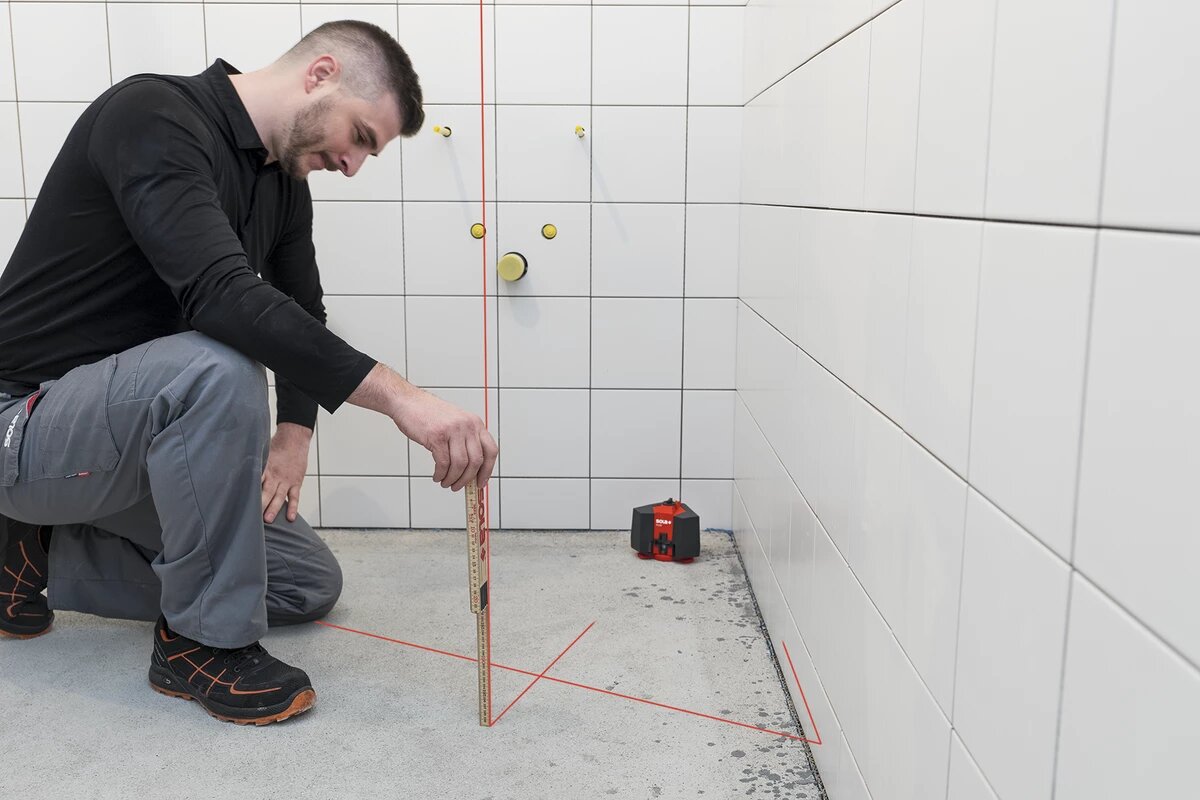

• Reference lines, floor

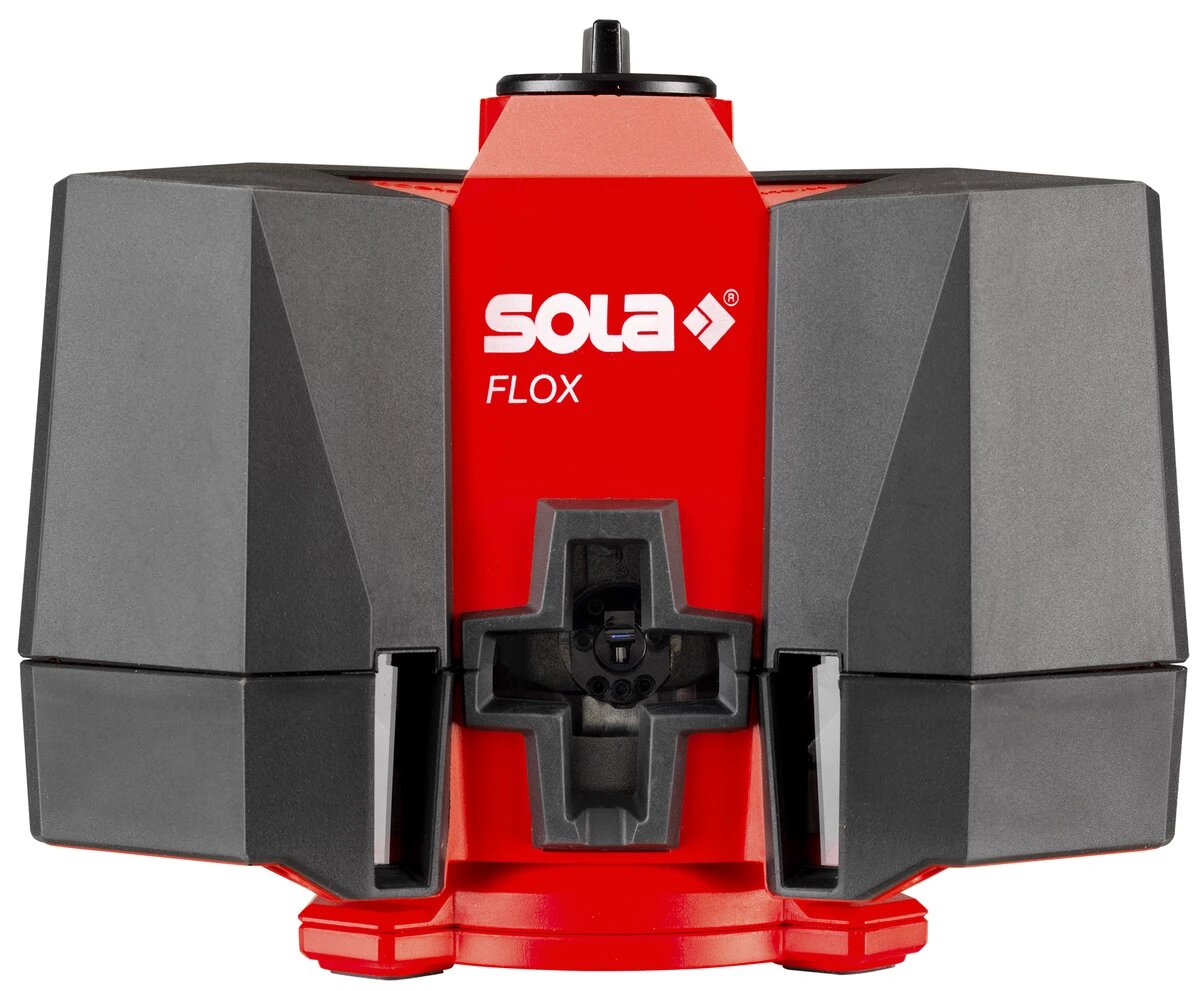

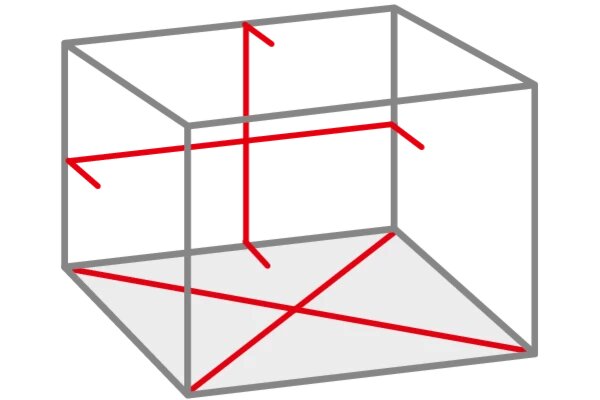

• Laser cross in front and continuous 90° laser lines allow an uninterrupted working without re-positioning of the laser

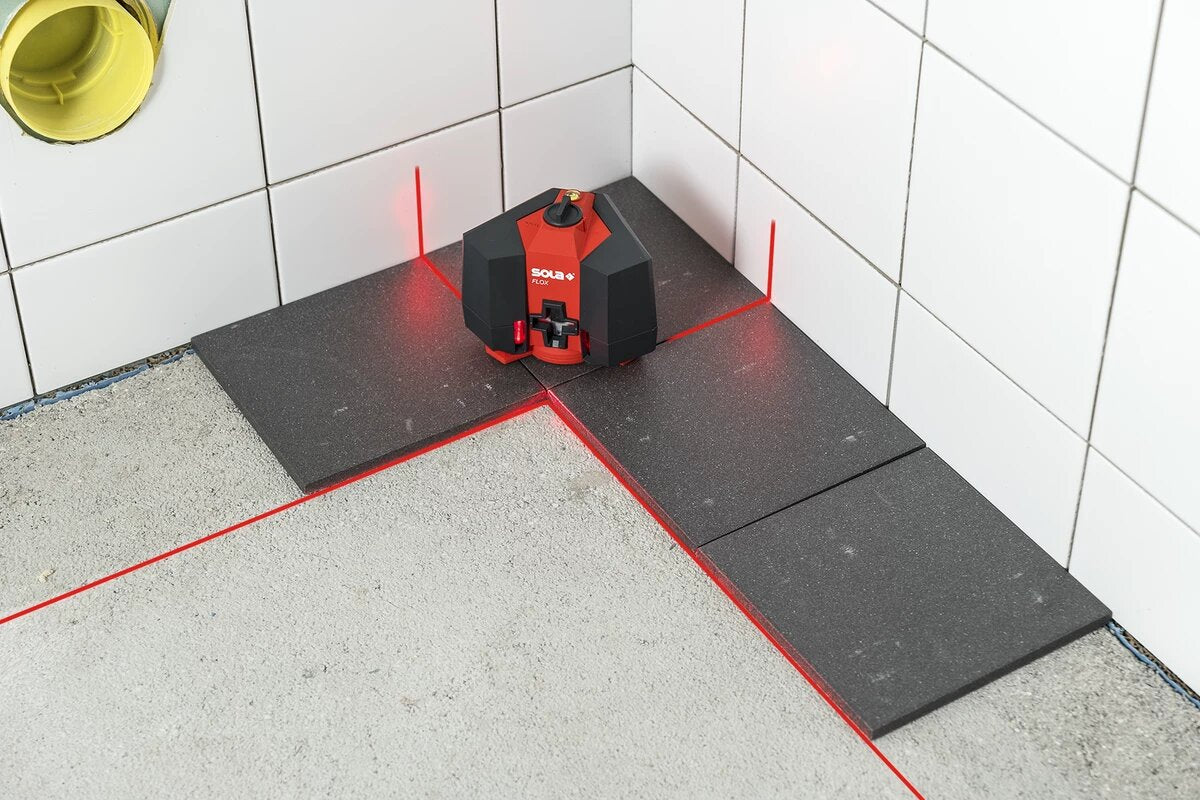

• 5 mm ground clearance allows attaching the tiles under the device
• Bright, very visible laser lines

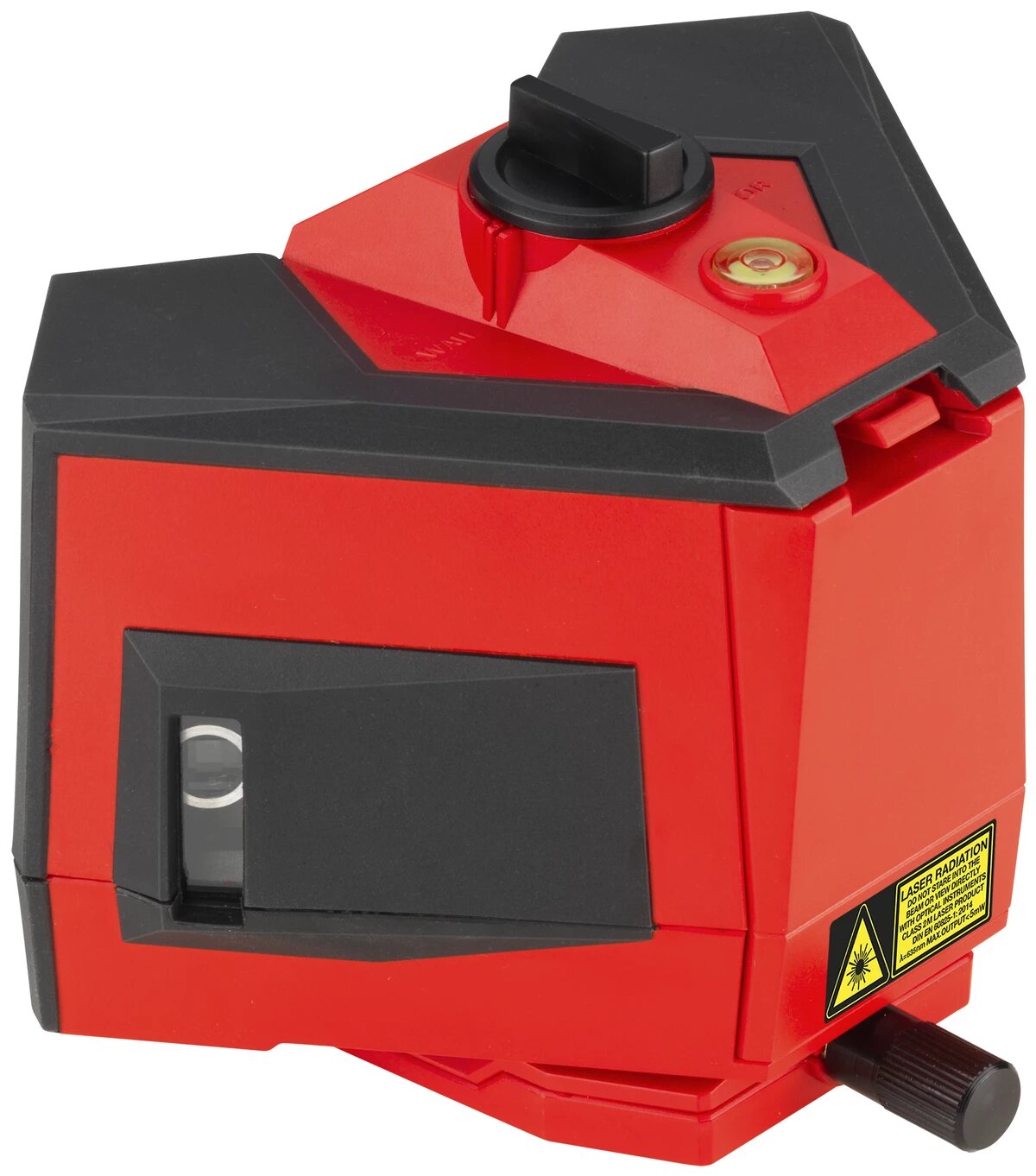

• Rotatable base for easy and rapid alignment of the line position
• Particularly easy and safe operation even for less experienced users

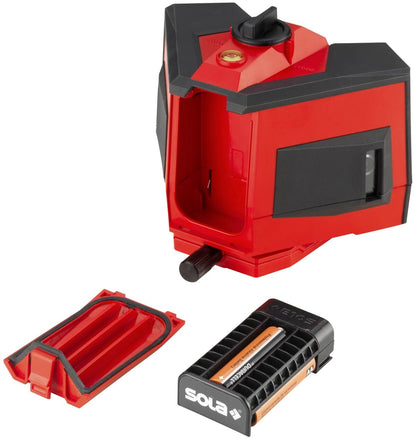

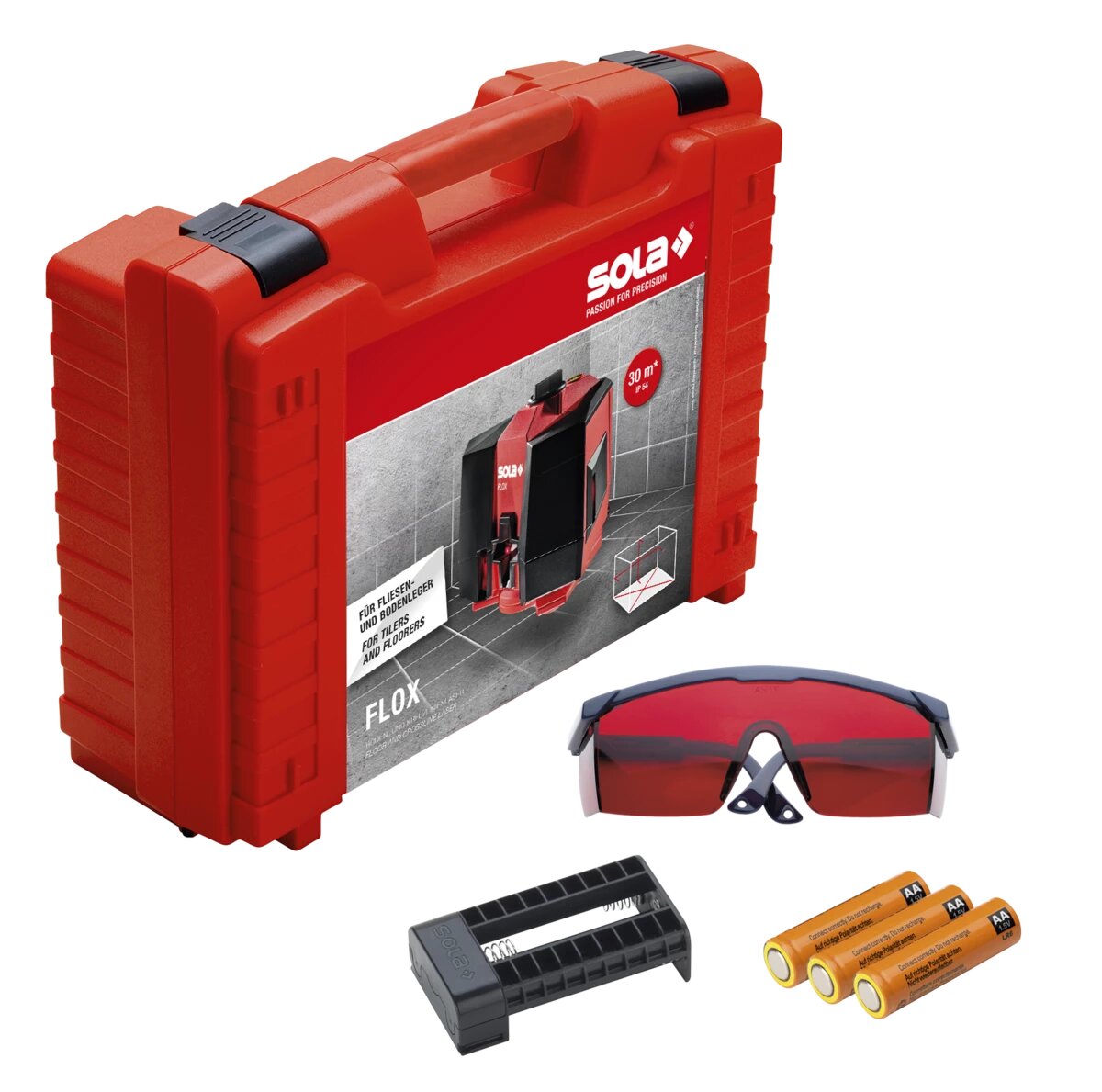

• 3 x 1.5 V (AA) batteries
• Battery adapter
• Laser visibility glasses
• FLOX case

• Item description - Line laser
• Dimensions - 150 x 119 x 122 mm

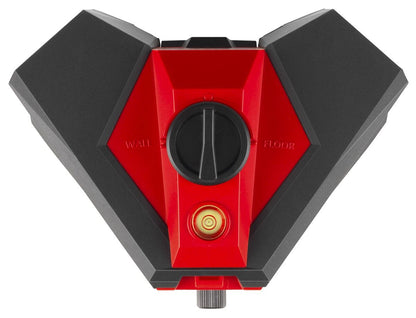

• Levelling - Permanent floor line, Self-levelling wall cross
• Measuring tolerance - ±0.30 mm/m (floor) / ±0.50 mm/m (wall)
• Self-levelling range - ±3°
• Application range without handheld receiver (radius) - 30 m* (floor) / 10 m* (wall)
• Operating temperature - -10 °C to +50 °C (14 °F to 122 °F)

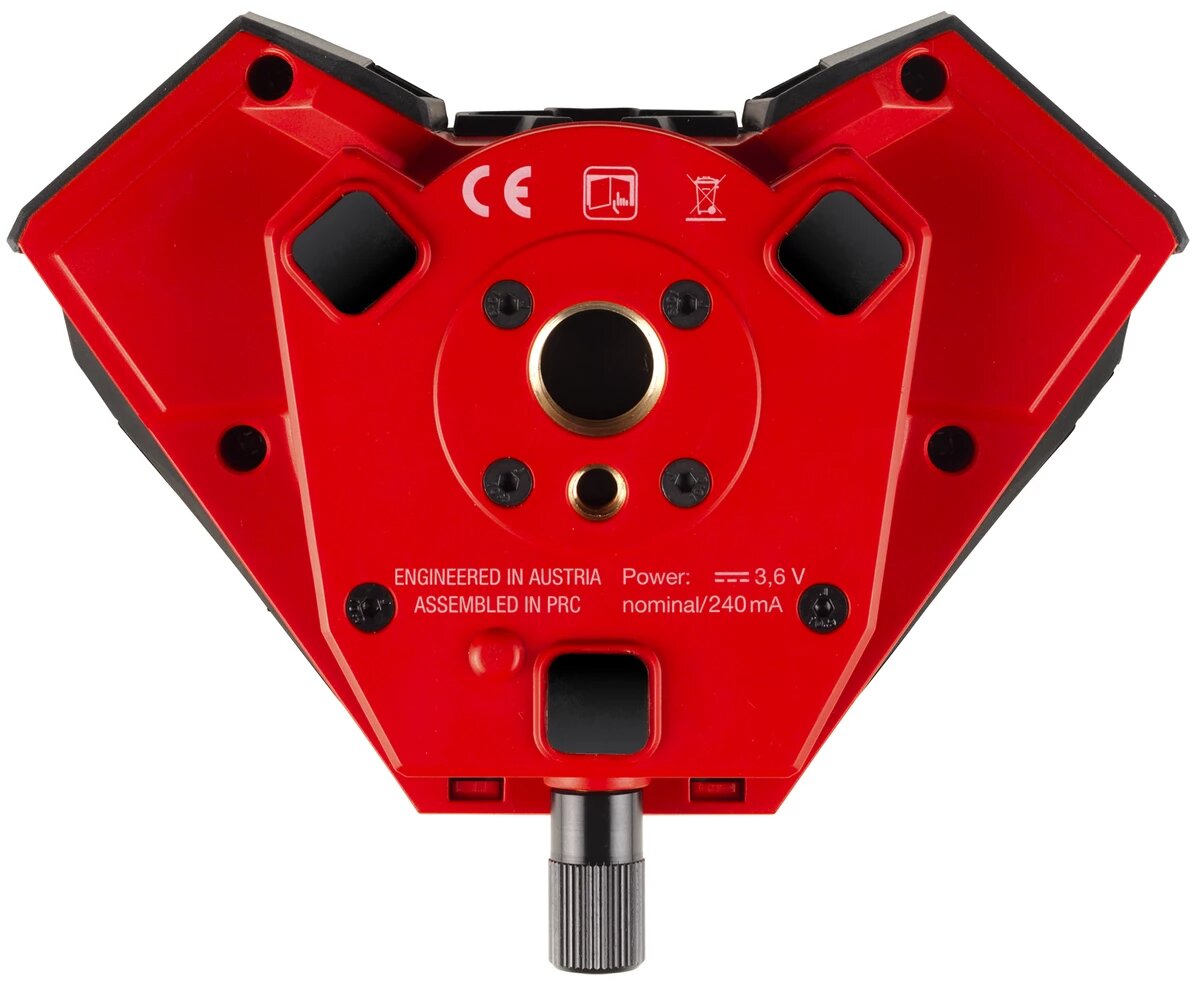

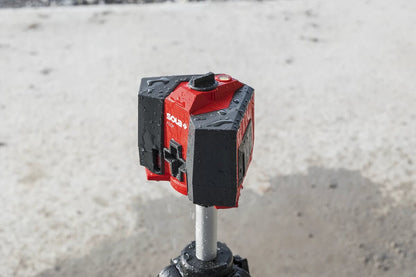

• Tripod adapter - 1/4" + 5/8"

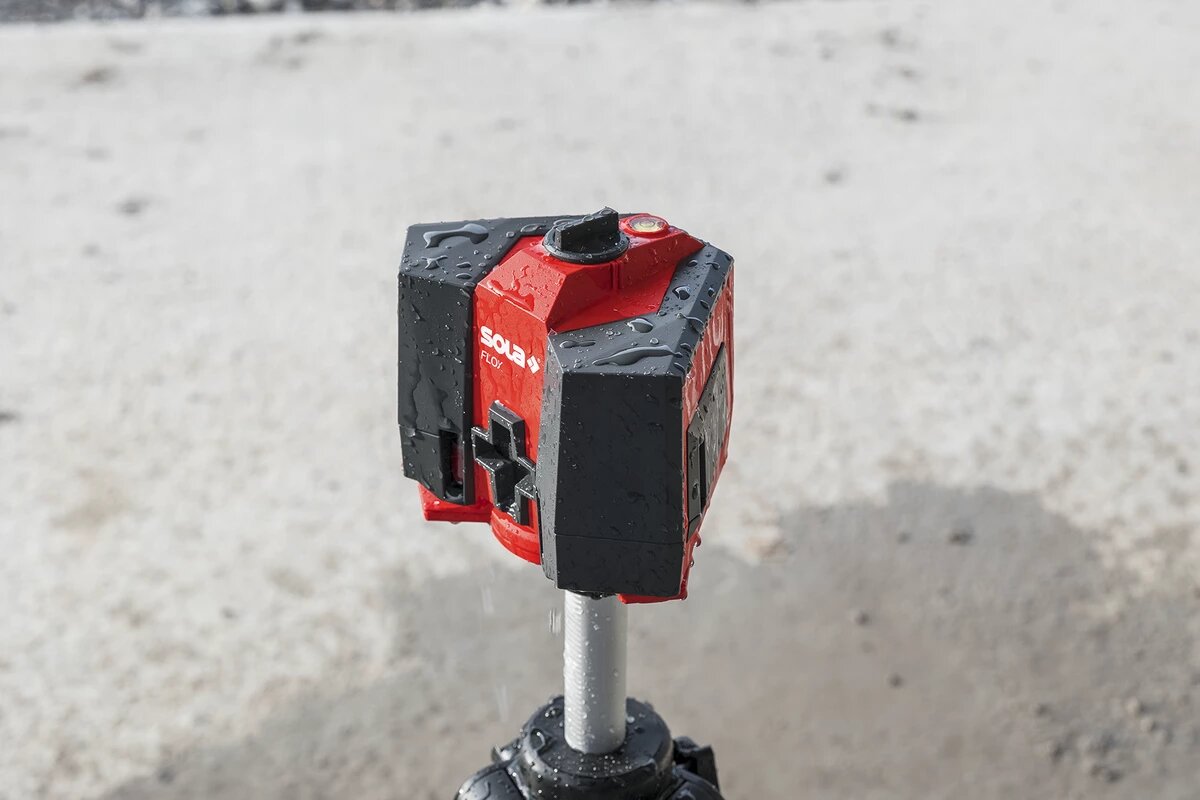

• Protection class - IP54
• Power supply - 3 x 1.5 V (AA) batteries
• Operating time (at 20 °C) - 9 h (floor)/40 h (wall) 3 x 1.5 V (AA) batteries
• 24 h (floor)/65 h (wall) SOLA Li-ion battery (5200 mAh)
• Laser class - 2, DIN EN 60825-1 : 2014
• Output power - < 1.0 mW
• Wavelength - 635 nm
