Uniproof® Single Slope Board
DESCRIPTION

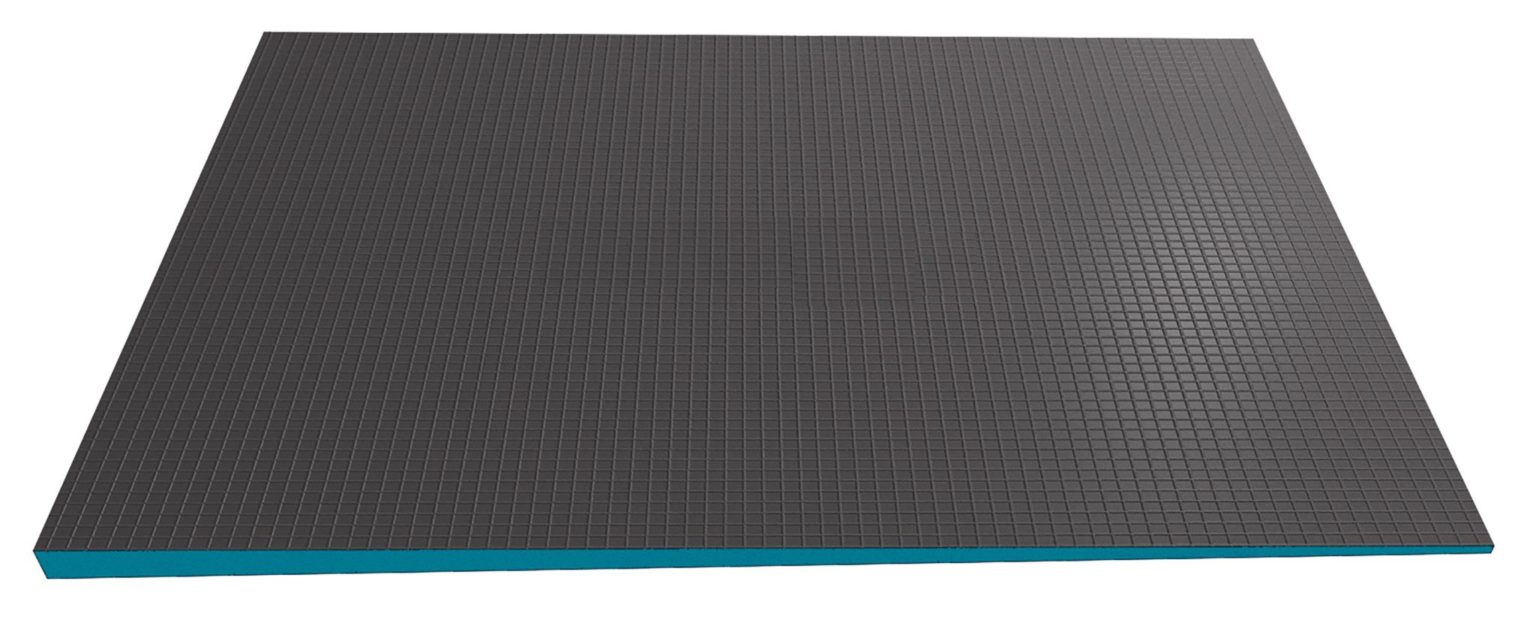

Uniproof® XPS Single Slope Board (building panel) is the innovative solution to create single slope towards linear drain. Uniproof® XPS Single Slope Board can be tiled with all types of ceramic, glass or stone tile whether they are mosaic or large format tiles. Especially large and thin tiles benefit from the durability of the Single Slope Board and the smooth, even surface it provides.
USES
Its HCFC-FREE waterproof XPS core, fiberglass reinforced and cement coating gives the panels strength and vapor-retardancy, making this Board the perfect choice for a variety of interior and exterior applications, such as the interlayer to walls or floors and the thermal insulation board in underfloor heating systems.
This Board is an underlayment for ceramic tiles, wooden and sreed or concrete floors.The board can be fixed on the floors with S1 grade tile adhesive or/and with stainless washers and suitable screws. Waterproofing tape or sufficient waterproofing system should be used on joints. Consumption of fixing washers for board (1500mm X1000mm) ca.15 pcs.
CHARACTERISTICS / ADVANTAGES
- 100% waterproof, made of HCFC-FREE XPS foam
- Takes the heaviest tiles
- Close bond to any tiling
- Compatibility to multiple substructures
- Thermal insulation for saving energy bills
- Vapor retardant against mildew
- Light-weight, easy to handle and cut to exact size with utility knife
- Fast and easy installation
WHAT’S IN THE BOX
The Single Slope Board.
PRODUCT INFORMATION
Board measurments 1500mm X 1000mm/ 15mm-35mm (1.33 % slope)
XPS Foam Density - 32±0.02kg/m³
Thermal Conductivity - 0.033W/m.K
Compressive Strength (10% deflection) - 300kPa (30 tonnes/㎡)
Flexural Strength - 0.3±0.02Mpa
Water Absorption(2-day immersion) - 0.2% by volume
Water Absorption(Capillary) - Zero
Water Vapour Diffusion Resistivity(μ) - 110-225μ
Water Vapour Permeability - 0.028ng/Pa.m.s
Maximum Tile Loading Weight - 62kg/㎡
Flammability - Class E
Impact Sound Reduction - dLw = 21
EU Controlled Substances - None
