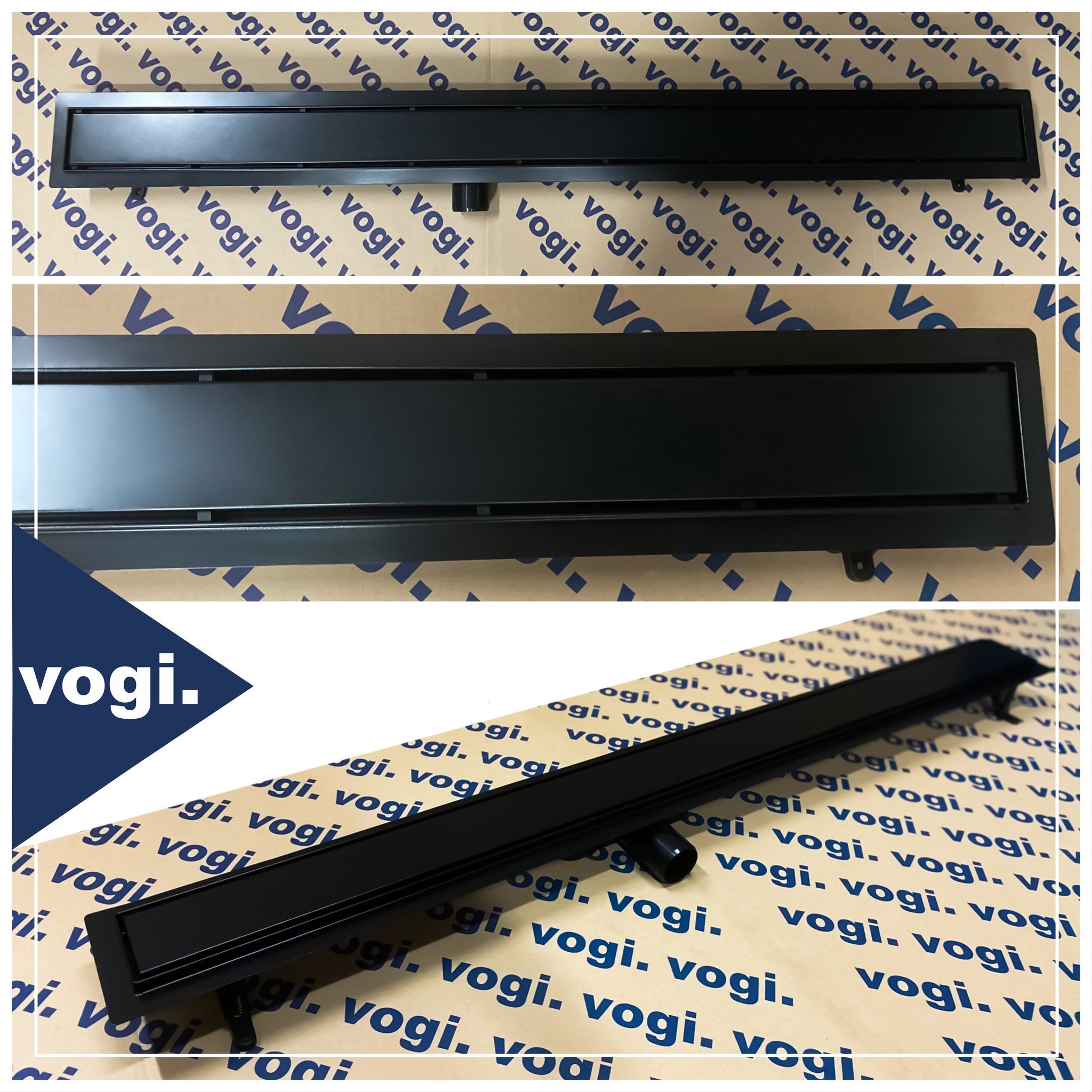

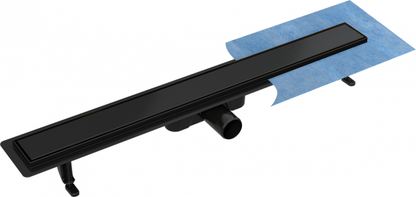

VOGI DRAIN with DUO Black GRATE
DESCRIPTION

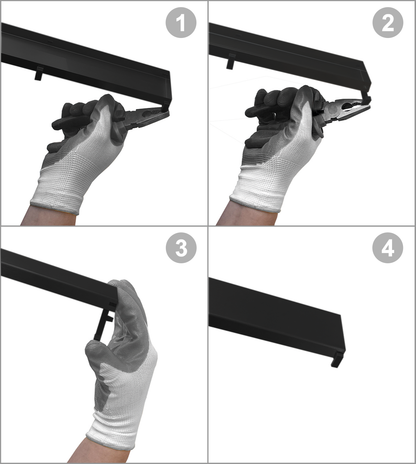

The DUO shower channel has a double-sided, reversible grate - thanks to which we have a choice of two types of grate finishing. On the one hand, it is made of steel, flat, black finish, after passing the spacers and turning it, it has a place to glue the tile. This solution makes it universal. Product codes: RD70set.BLACK, RD80set.BLACK, RD90set.BLACK
USES

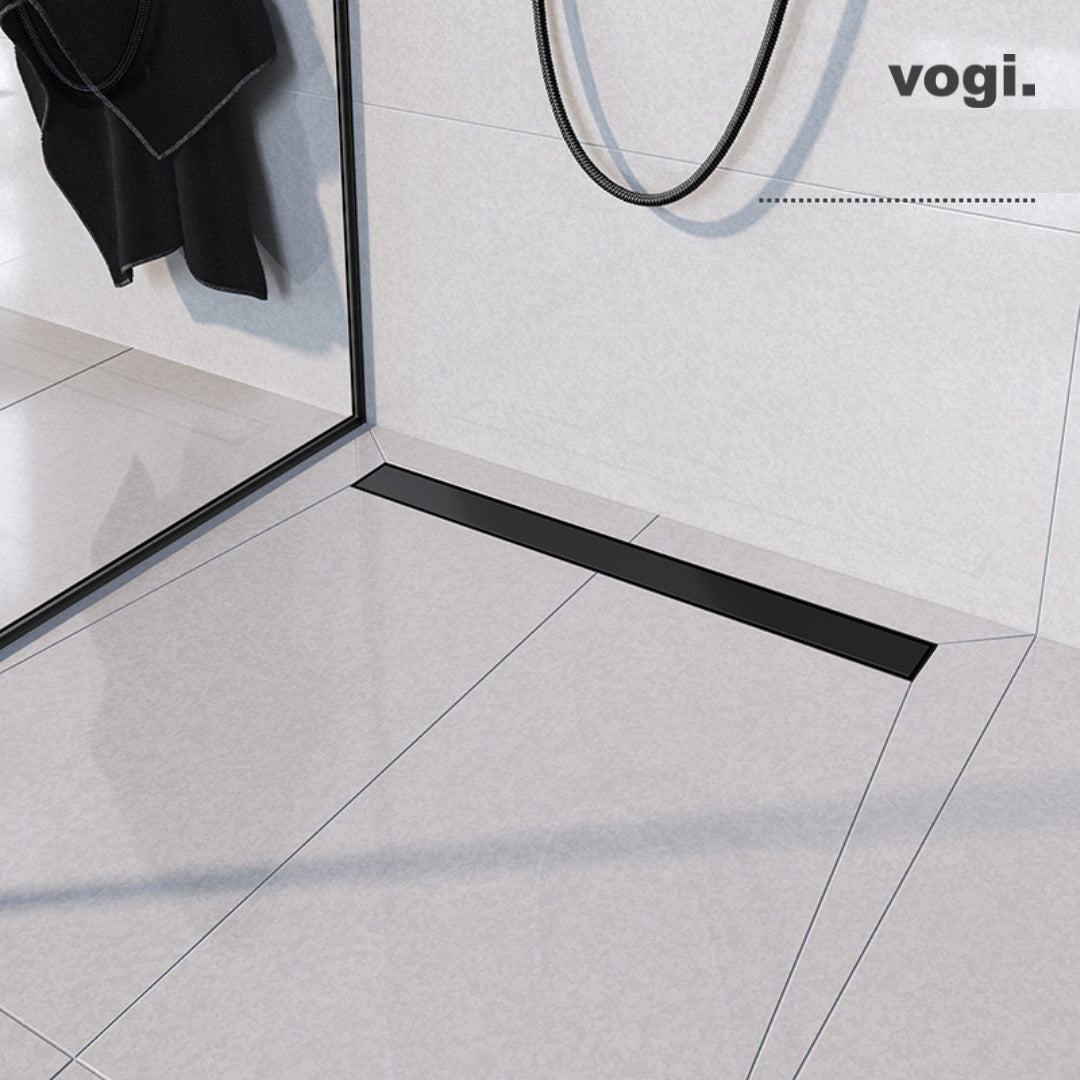

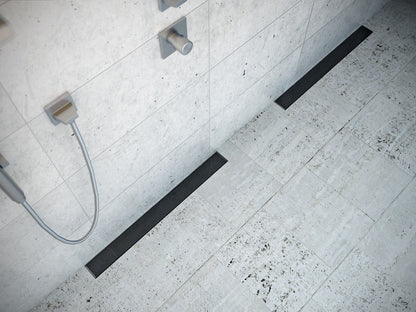

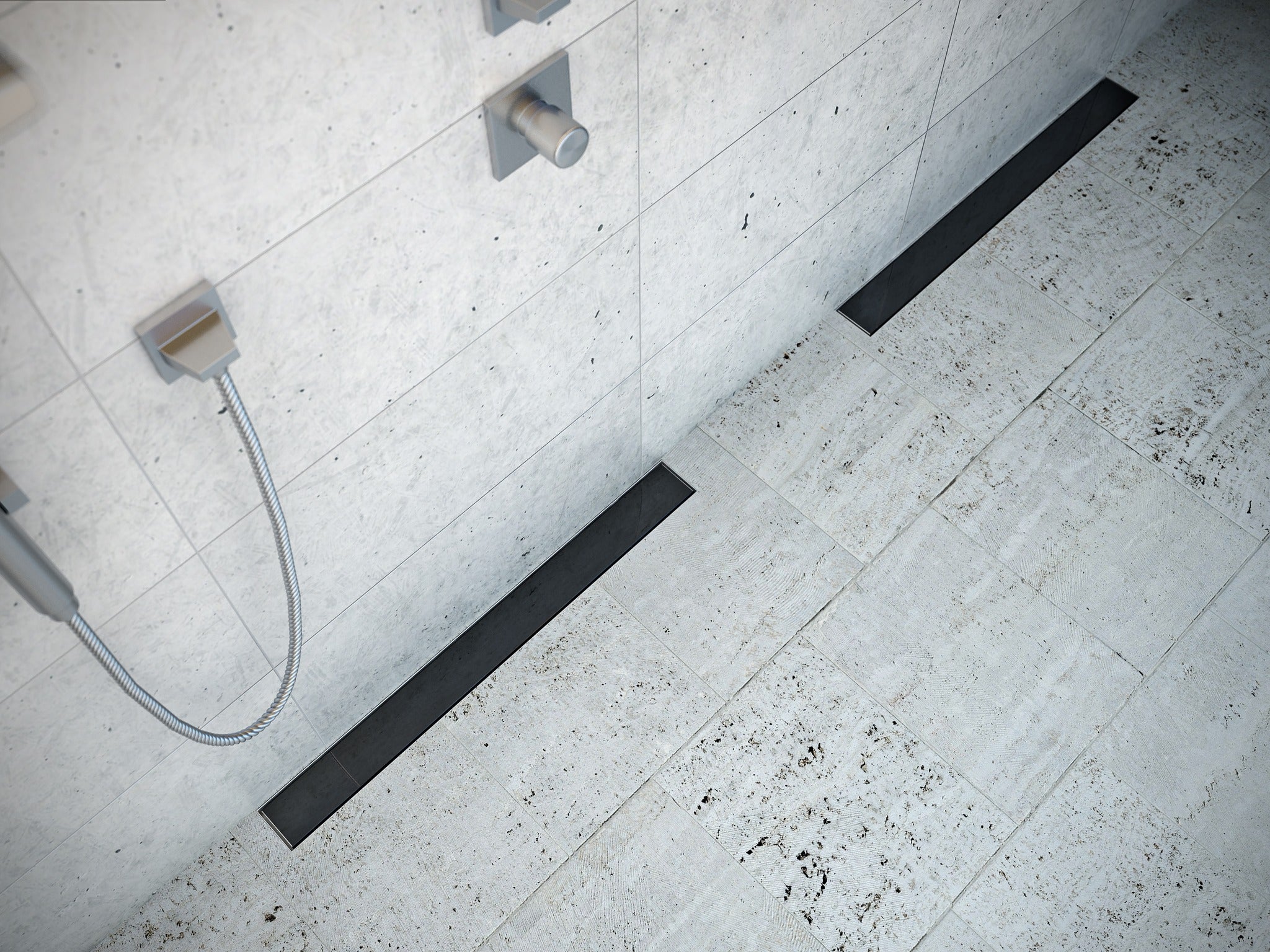

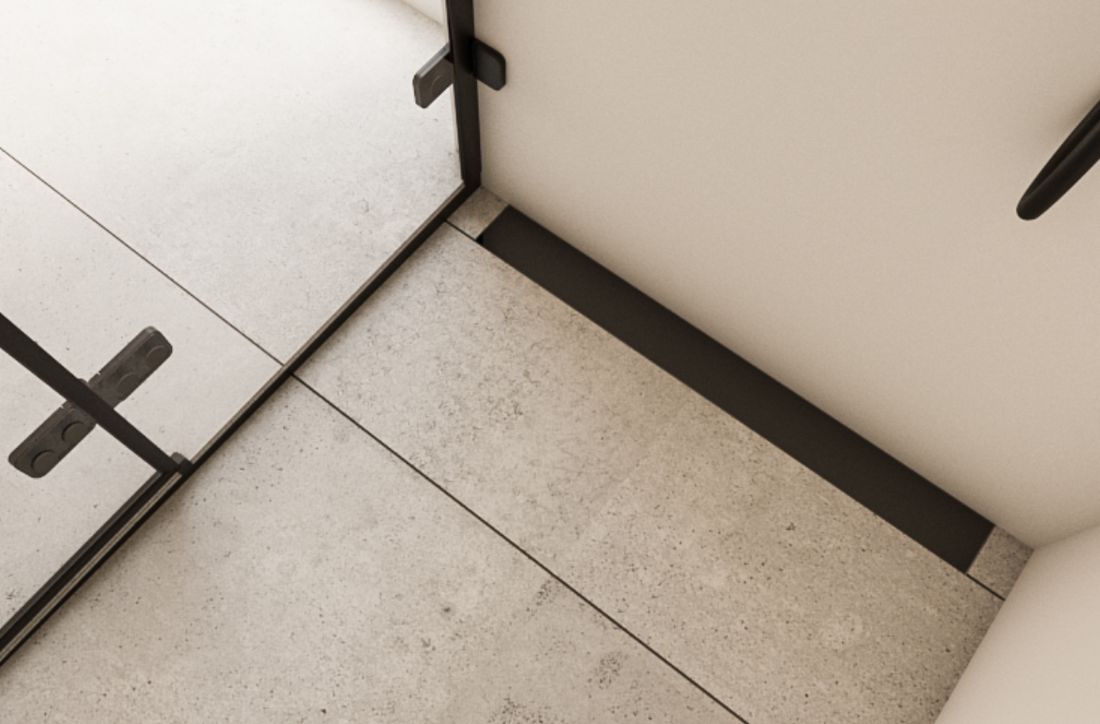

VOGI Drain with Duo Black grate is suitable to be fitted in shower spaces with preformed slopes. Drain set includes sealing cuff for waterproofing.

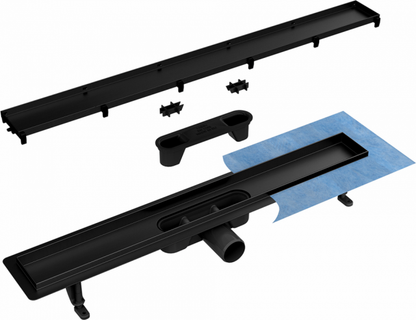

WHAT’S IN THE BOX

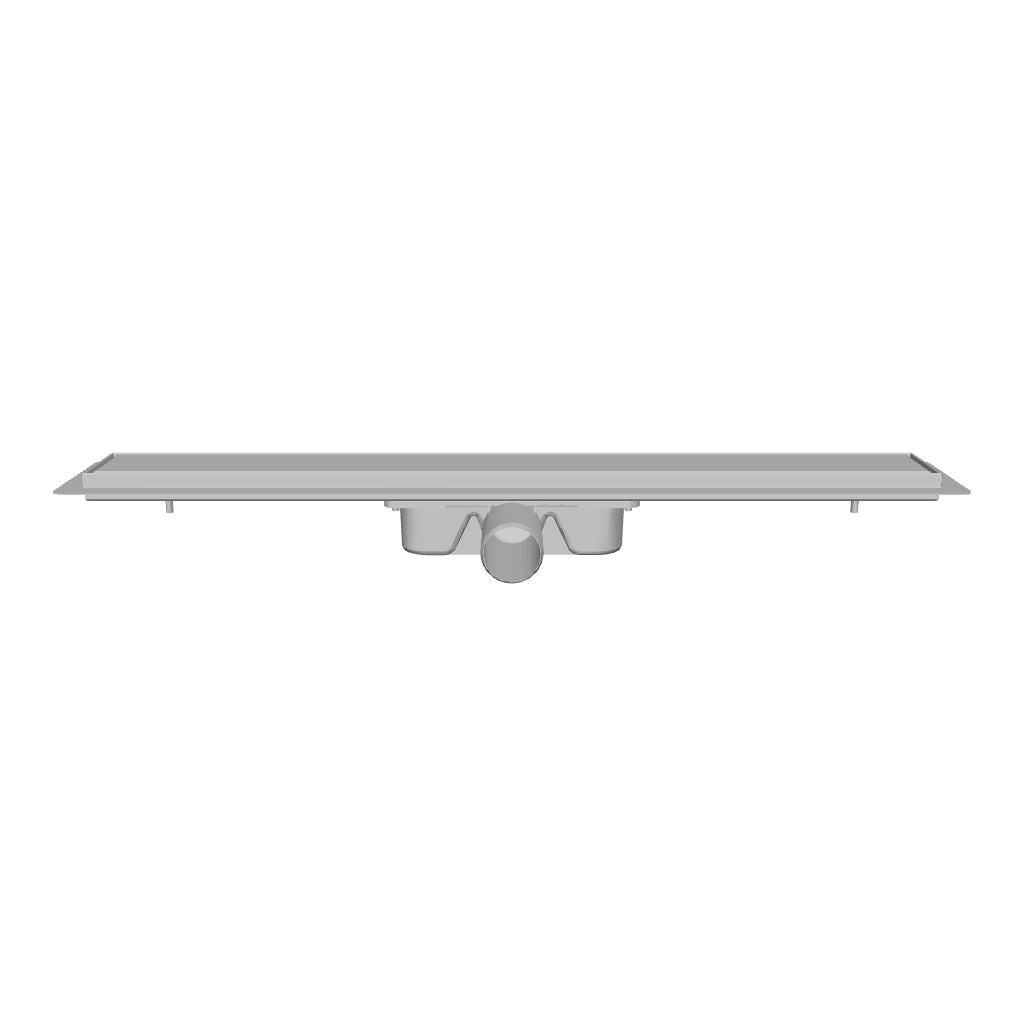

- Drain channel with siphon
-
DUO grate (for pasting the tile or after reversing flat brushed).
- Sealing cuff for waterproofing installation

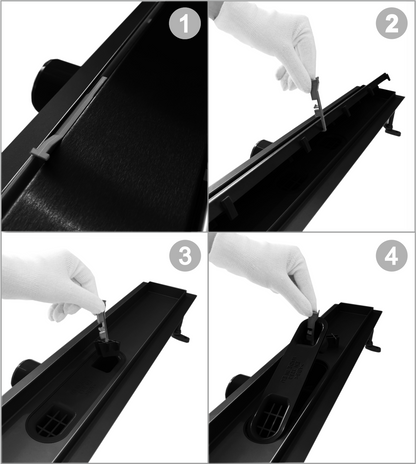

- Cleaning key
- Attached mounting feet
- Adapters from 50mm to 40mm waste pipe (1.5 inch white waste pipe)
- Fitting instructions
CHARACTERISTICS / ADVANTAGES

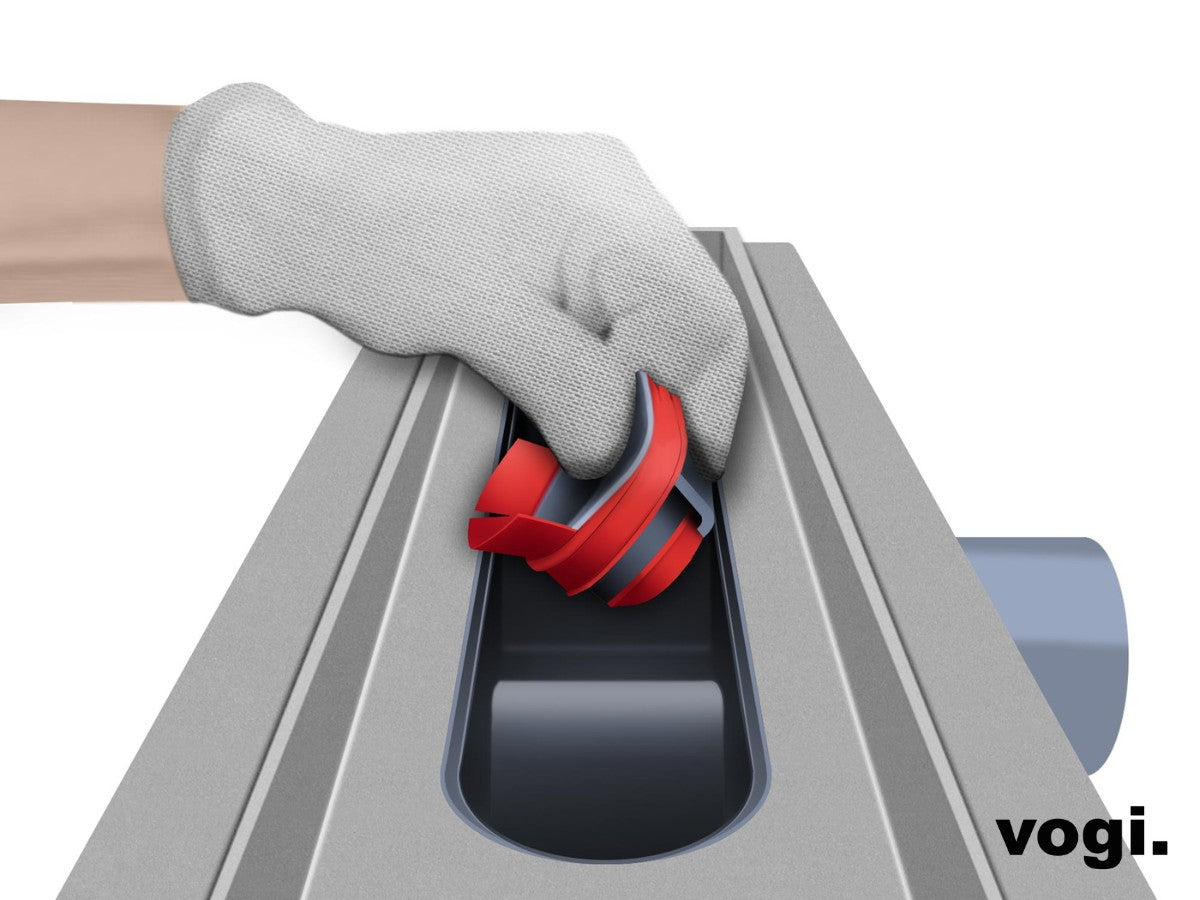

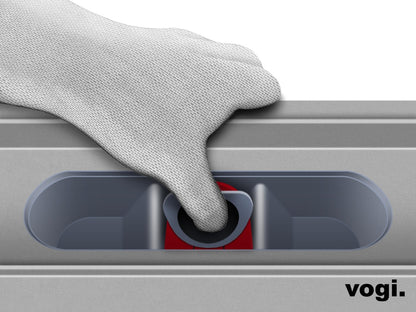

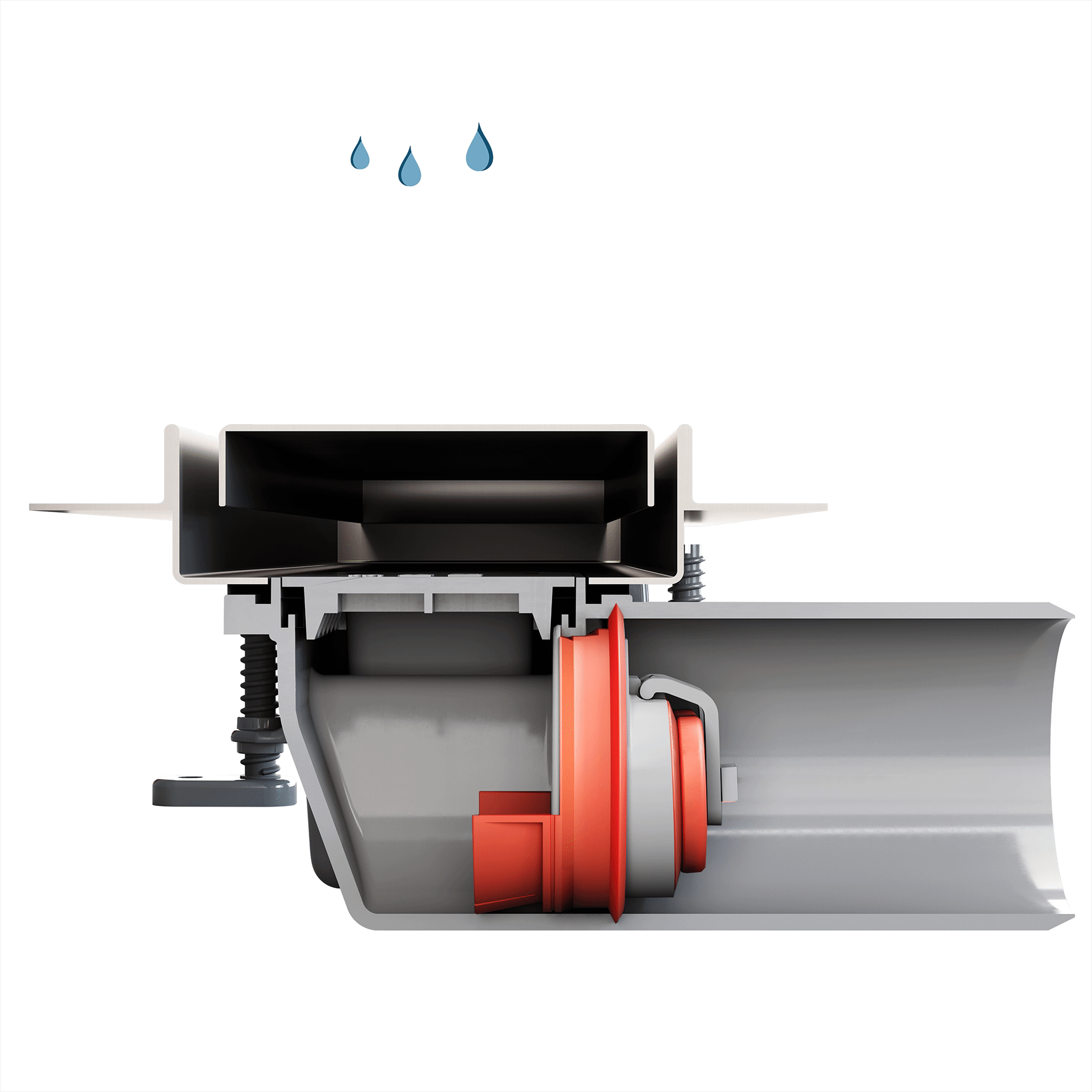

- Siphon Ø50 (flow rate up to 56 l/min) easily cleaned from the top with hair catchers, double chamber to prevent clogging
-

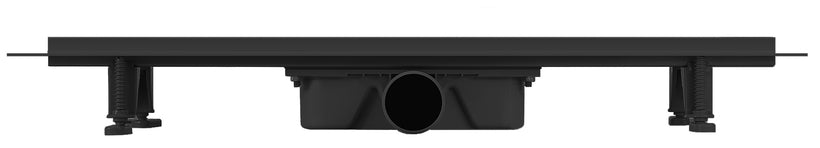

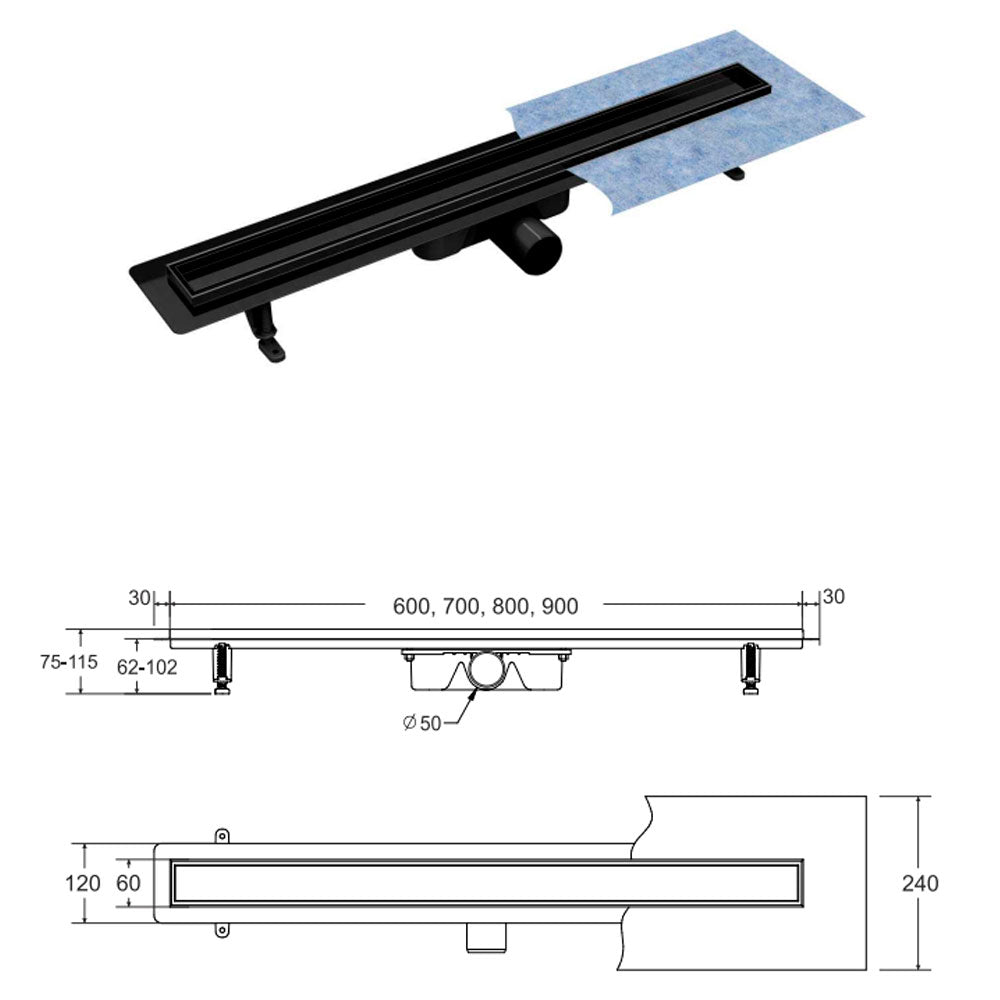

Installation height: 62 mm to the flange. The lowest Ø50 siphon on the market. Patented shape.
-
DUO grate (for pasting the tile or after reversing flat brushed).
-
Scandinavian stainless steel - acid-resistant AISI304 + ABS.
- Advantages of VOGI linear shower drain (youtube.com)
