Made In Italy
FRATELLI SLIM DRAIN Lineal Stainless Drain (SPECIAL ORDER)
DESCRIPTION

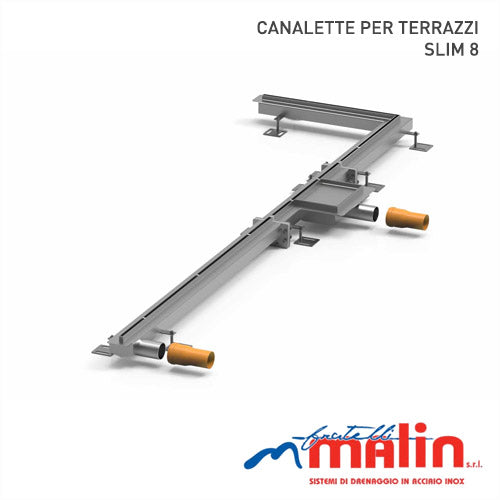

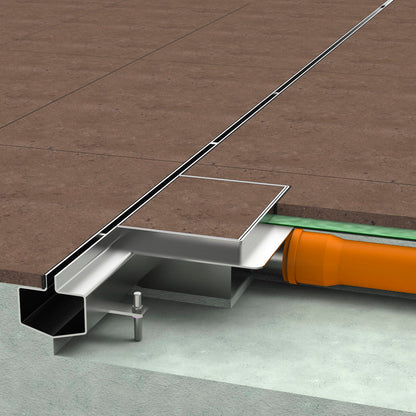

FRATELLI SLIM DRAIN Lineal Stainless Drain . SLIM slot channels for terraces made entirely of AISI 304 stainless steel (316 on request), available with 8mm slot "SLIM 8" and 16mm slot "SLIM 16". Ideal for the effective disposal of water from balconies, terraces, showers, changing rooms and pedestrian areas with minimal visible impact. The sealing membrane to be glued to the channel body provides a guaranteed 100% waterproofing. The shape and arrangement of the line are studied together with the customer. Each individual module is equipped with adjusting screws and leveling feet in order to position the channels in the best possible way during installation operations.

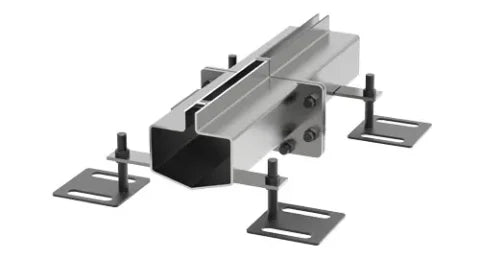

The junction between the modules is carried out by means of flanges with relative gaskets and stainless steel bolts that guarantee the perfect watertightness of the channel.
The assembly kit, which is included in each supply, includes detailed and numbered diagrams for the correct assembly sequence, installation and storage tips.
WHAT’S IN THE BOX
- Drain Linear Meters Ordered
- Sump(s)
- Gaskets
- Stainless Steel Bolts
- Installation Manual
CHARACTERISTICS / ADVANTAGES
- Effective disposal with minimal visual impact

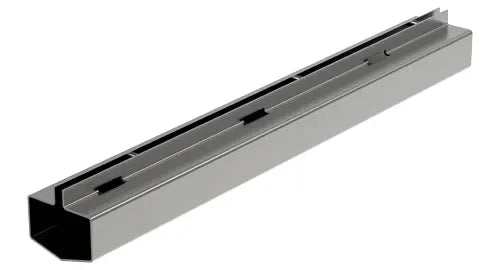

- Slot spacers every 500mm to optimize the linearity of the gap in the installation area

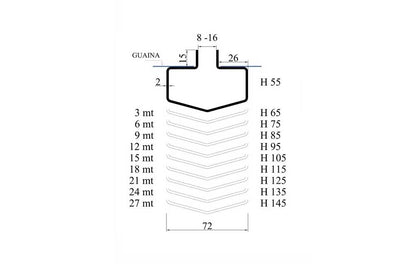

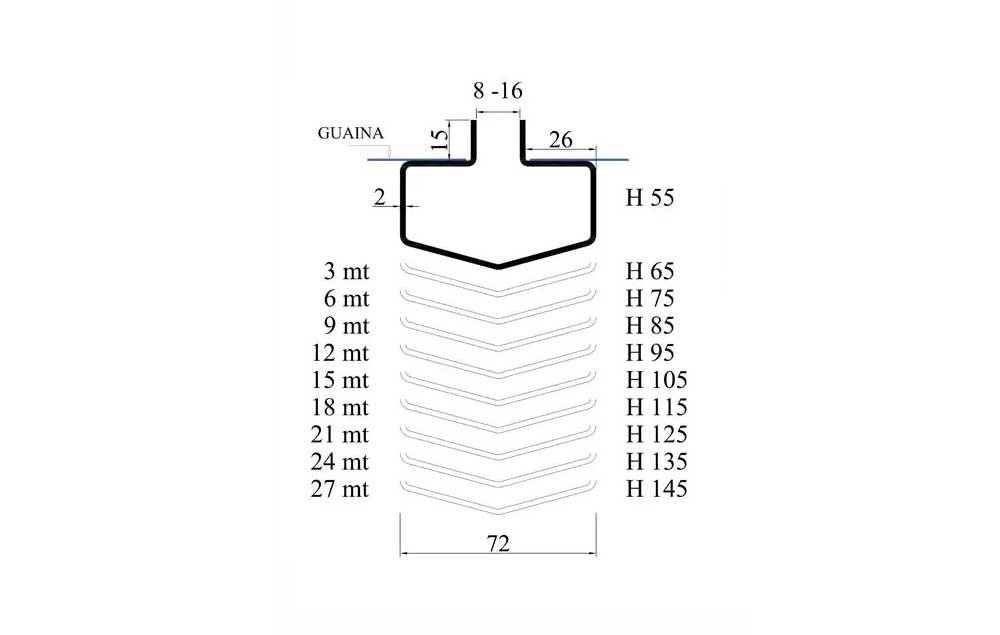

- The "V" shape of the bottom and the internal slope of 3.3 mm/mt prevent the stagnation of liquids inside the channel

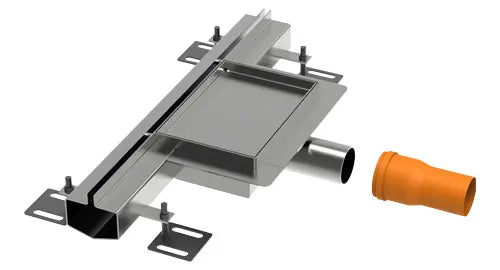

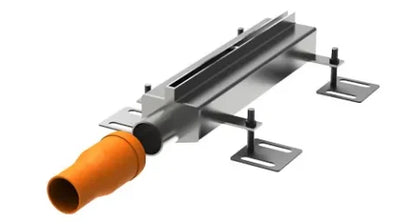

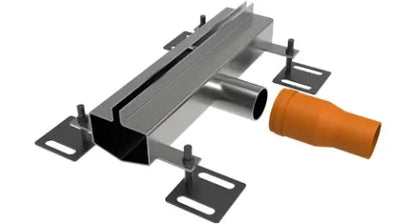

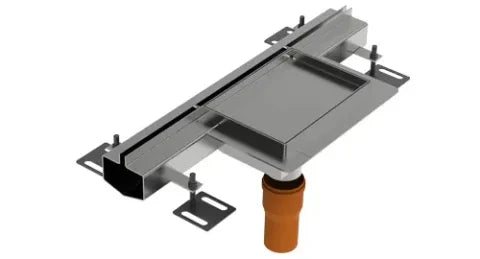

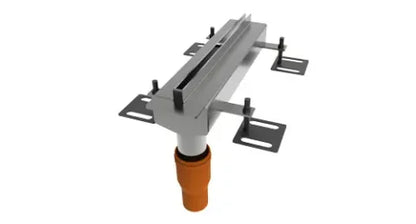

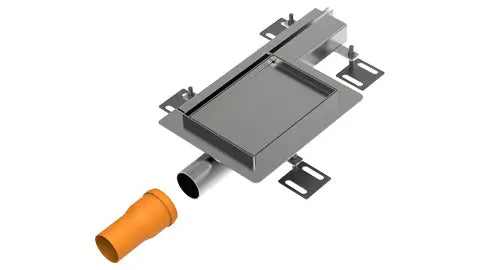

- The discharge is made to measure and can be through an inspection pit that includes a basket for collecting solids, or with a simple drain pipe

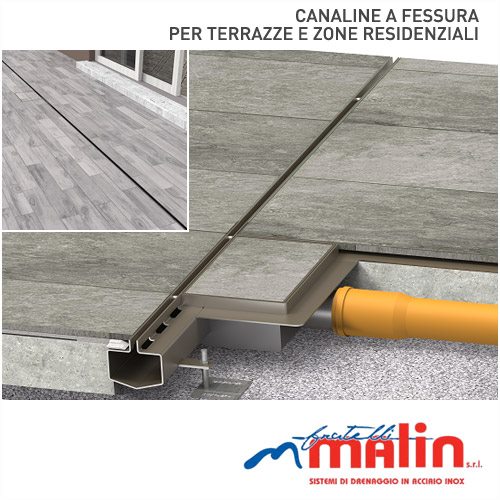

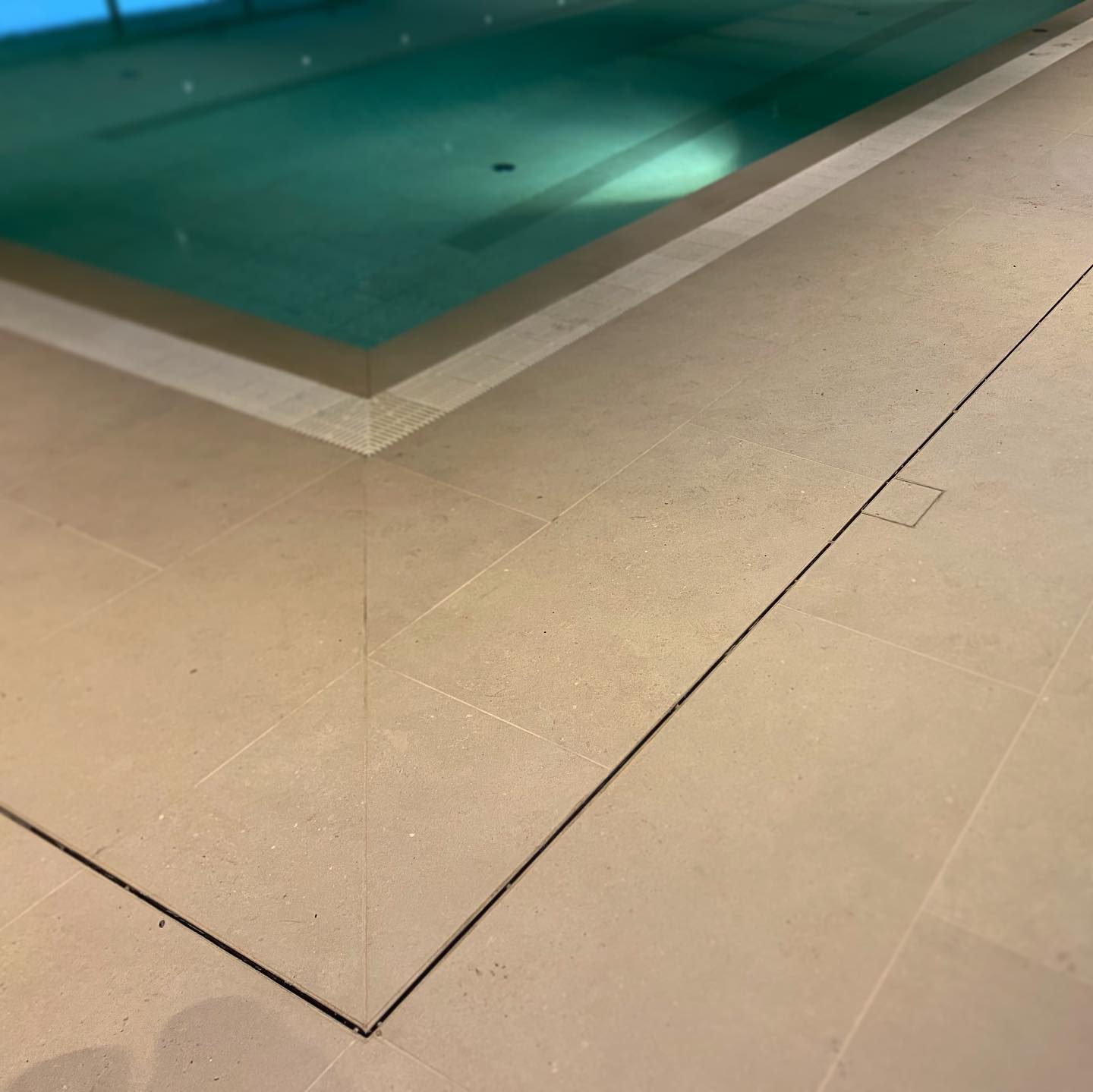

- Ideal application in the outdoor and indoor areas of buildings, terraces, balconies, changing rooms, showers, swimming pools, pedestrian areas
-
without internal slope (where there is little space available)
- with internal slope 10 mm on 3 meters
- Lead time from drawings to delivery ca. 6-8 weeks
