Linear Drain Basic Duo

Made In Spain

Linear Basic Duo

DESCRIPTION

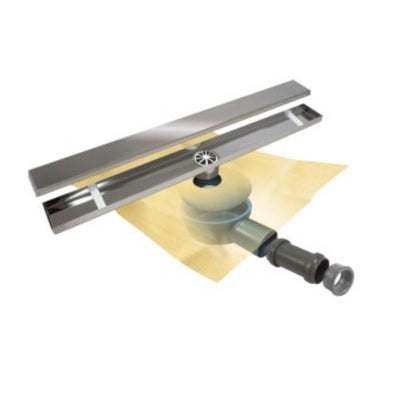

Channel kit (channel 6.1 cm wide) with linear stainless grating (verse) and tileable grating (reverse) with DRY 40 waterproofing membrane heat sealed to the BASIC drain, and a loose DRY 40 membrane piece of 1,5 x 2 m (3m²).

USES

Linear Drain Basic Duo is suitable to be fitted in shower spaces with preformed slopes. Drain comes with extra 3m² DRY 40 waterproofing membrane that has to be covered with suitable tiles.

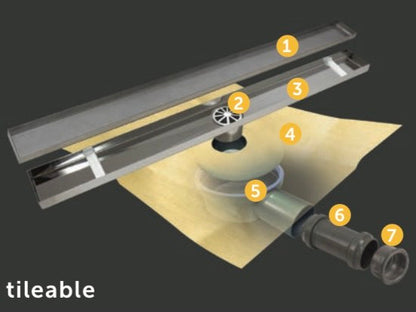

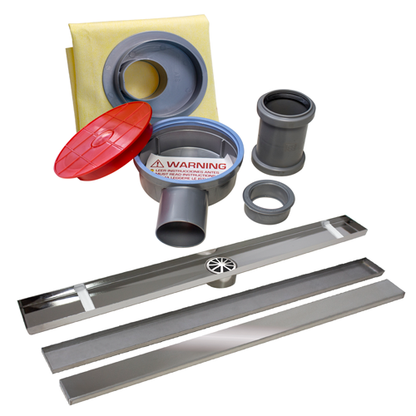

WHAT’S IN THE BOX

1. Tileable/steel grid
2. Hair catcher
3. Channel
4. Heat sealed membrane
5. Drain
6. Waste adaptor EU to 1/1.5" waste pipe
7. Reducer

8. DRY40 waterproofing membrane piece 1,5 m X 2 m (3m²)
9. Cleaning key

PRODUCT INFORMATION

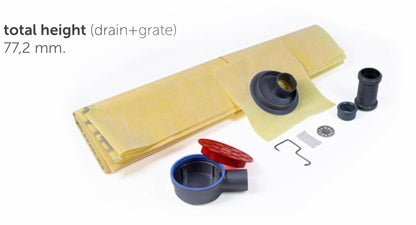

Total Height (drain+grate) - 77.2 mm

Click to view Data Sheet
