Linear Black Drain 70

Made In Spain

DRY 50 REVESTECH Lineal Slim 70 Black Drain and Waste with Trap for Shower

DESCRIPTION

DRY 50 REVESTECH Lineal Slim 70 Black Drain and waste with trap for shower. The new system includes a sheet of DRY 50 sealing membrane(3m²). Horizontal outlet 50/56mm.

USES

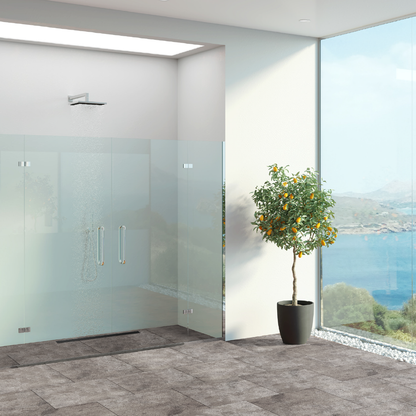

DRY 50 Lineal Slim 70 Black Drain is suitable to be fitted in shower spaces with preformed slopes. Drain set includes additional 3m² DRY 50 waterproofing membrane that has to be covered with suitable tiles.

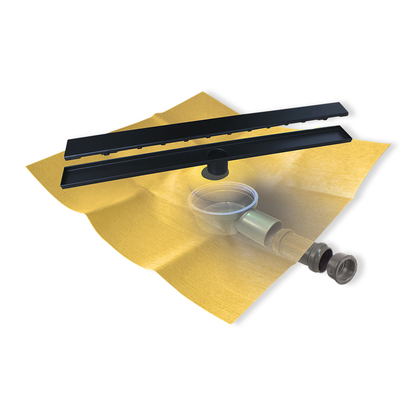

WHAT’S IN THE BOX

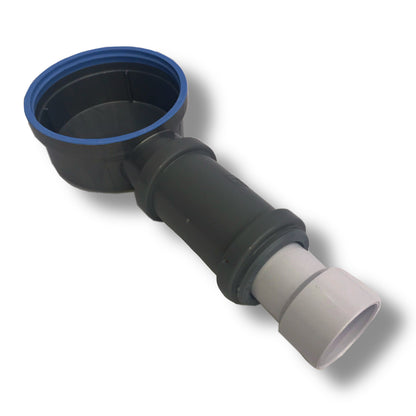

1. Novo Shower Drain
2. Channel (70cm X 6.4cm)
3. Channel Cover (69.5cm X 5.9cm)

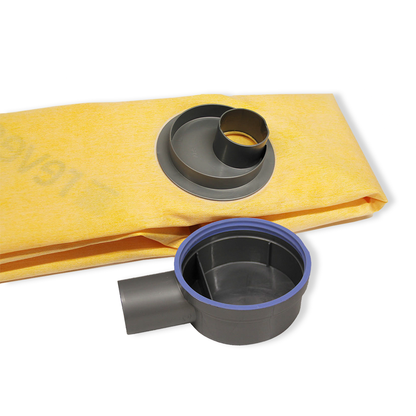

4. Sealing Membrane DRY 50 sheet (2m X 1.5m)
5. Fitting Instructions
6. Waste adaptor EU to 1/1.5" waste pipe

CHARACTERISTICS / ADVANTAGES

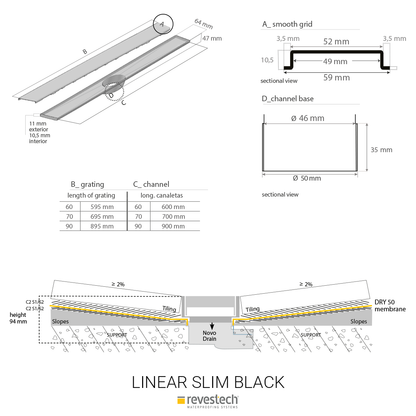

• Drain channel measurements 70cm X 6.4cm
• Drain fitting height 9.4cm
• Drain flow rate 60 l/min
• Fast & easy installation

Click to view Data Sheet
