DRY 50 REVESTECH Lineal Premier 80 Tileable Drain and Waste with Trap for Shower
DESCRIPTION

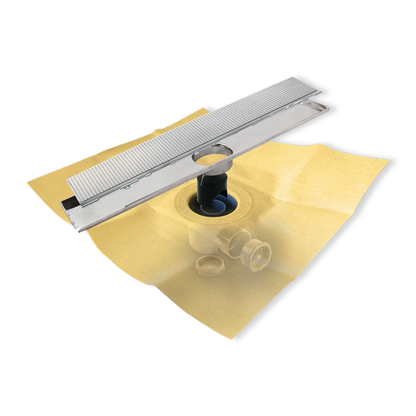

DRY 50 REVESTECH Lineal Premier 80 Tileable Drain and waste with trap for shower. It includes HORIZONTAL and VERTICAL outlet Ø 40/56. The new system of sealing the membrane to the drain in the manufacturing process provides a guaranteed 100% waterproof bond to the drain.
USES
DRY 50 Lineal Premier 80 Tileable Drain is suitable to be fitted in shower spaces with preformed slopes. Drain has attached 2m X 1.5m DRY 50 waterproofing membrane that has to be covered with suitable tiles.
WHAT’S IN THE BOX

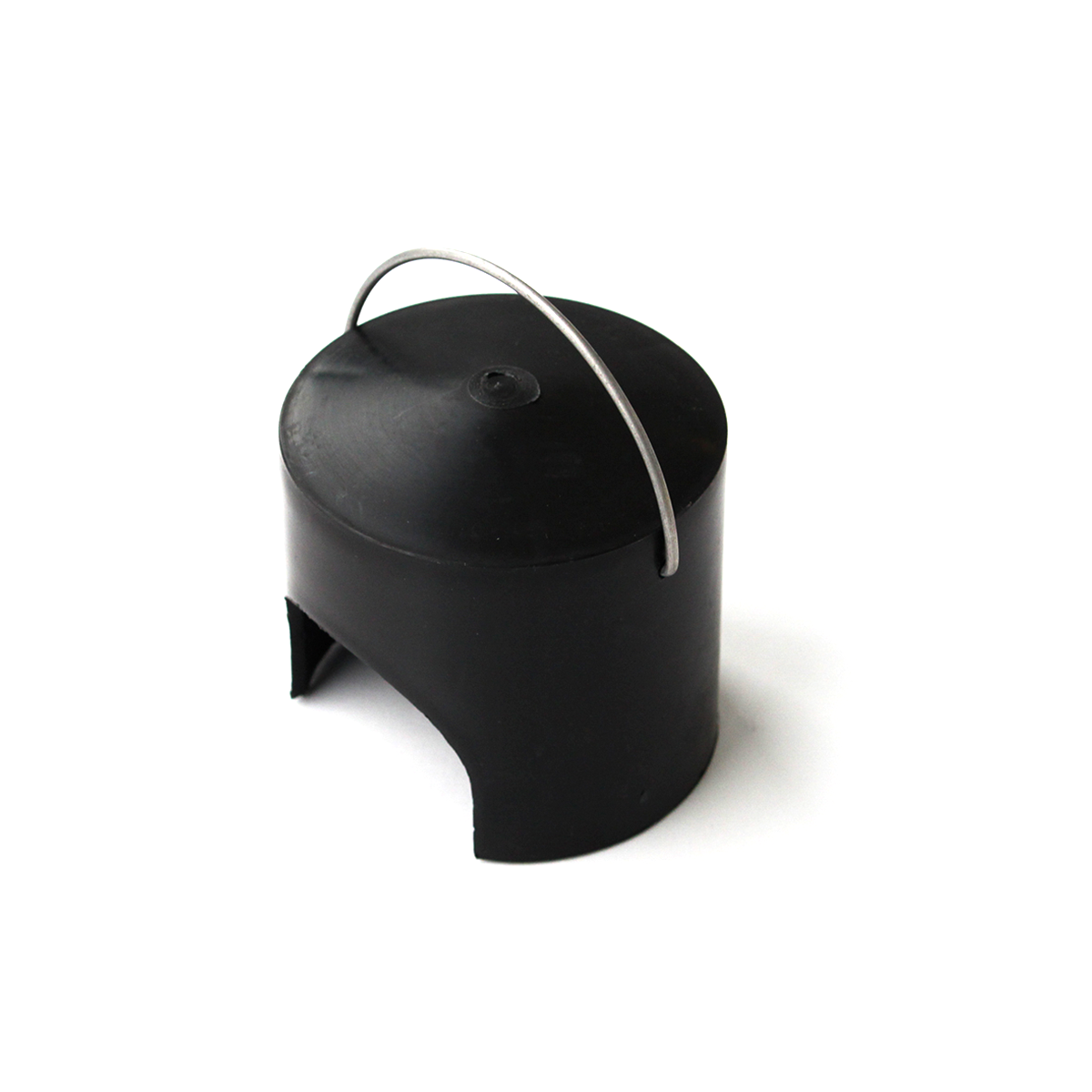

- Premier Shower Drain
- Shower Channel (80cm X 9.3cm)

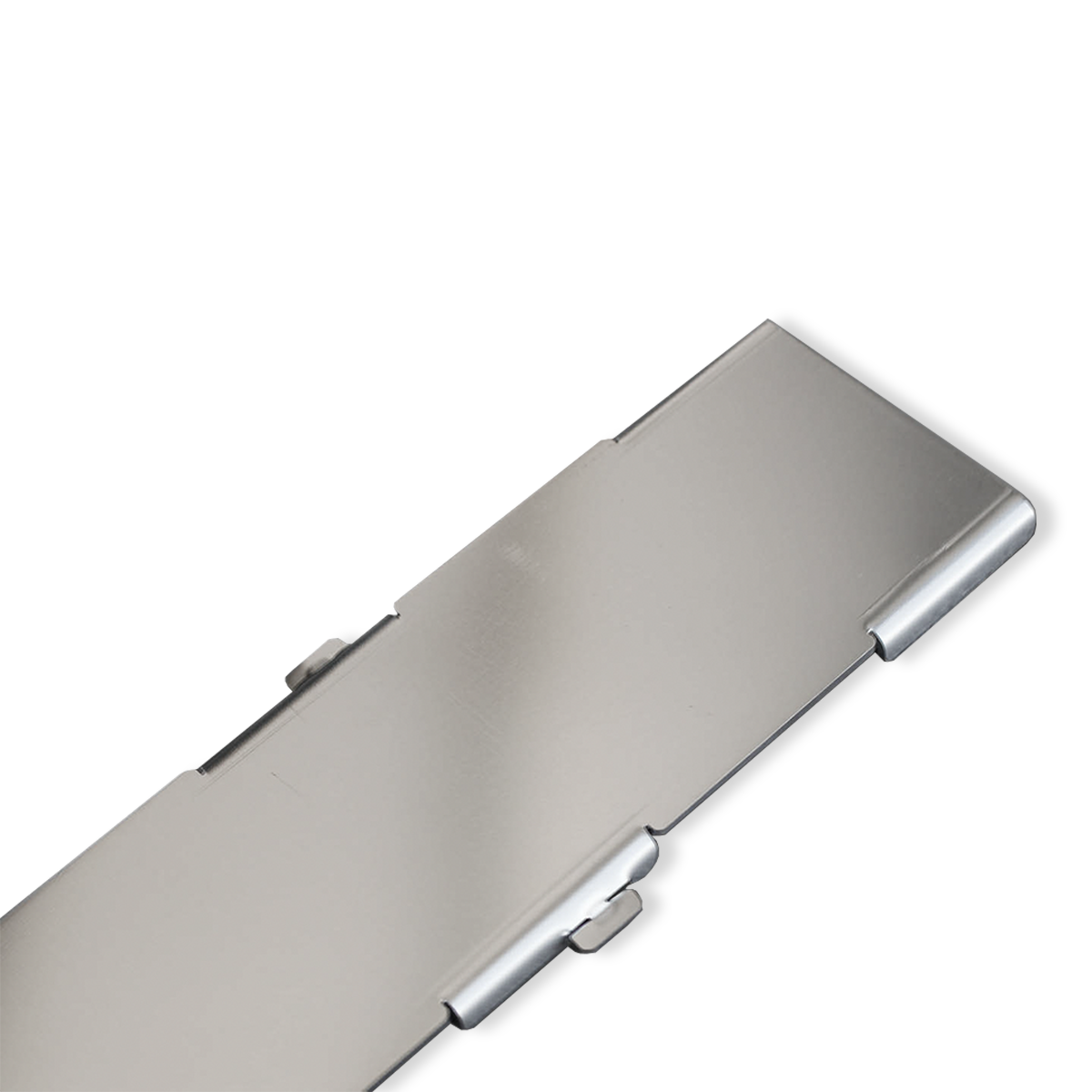

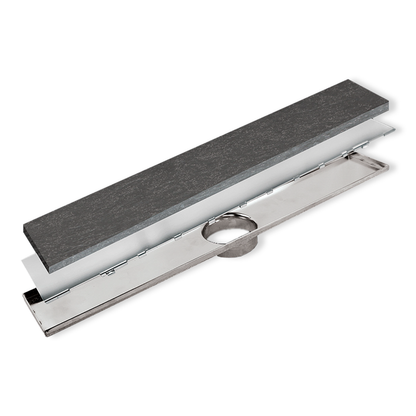

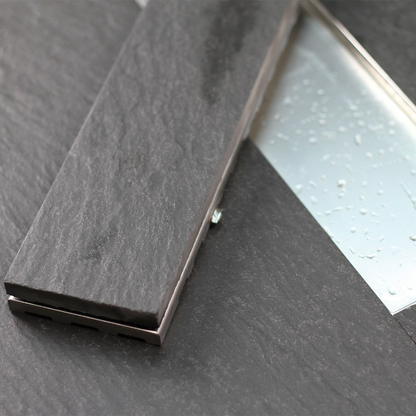

- Tileable Shower Channel Cover (79.5cm X 8.8cm)
- Sealing Membrane DRY 50 sheet (2m X 1.5m)
- Fitting Instructions
- Waste adaptor EU to 1/1.5" waste pipe
CHARACTERISTICS / ADVANTAGES

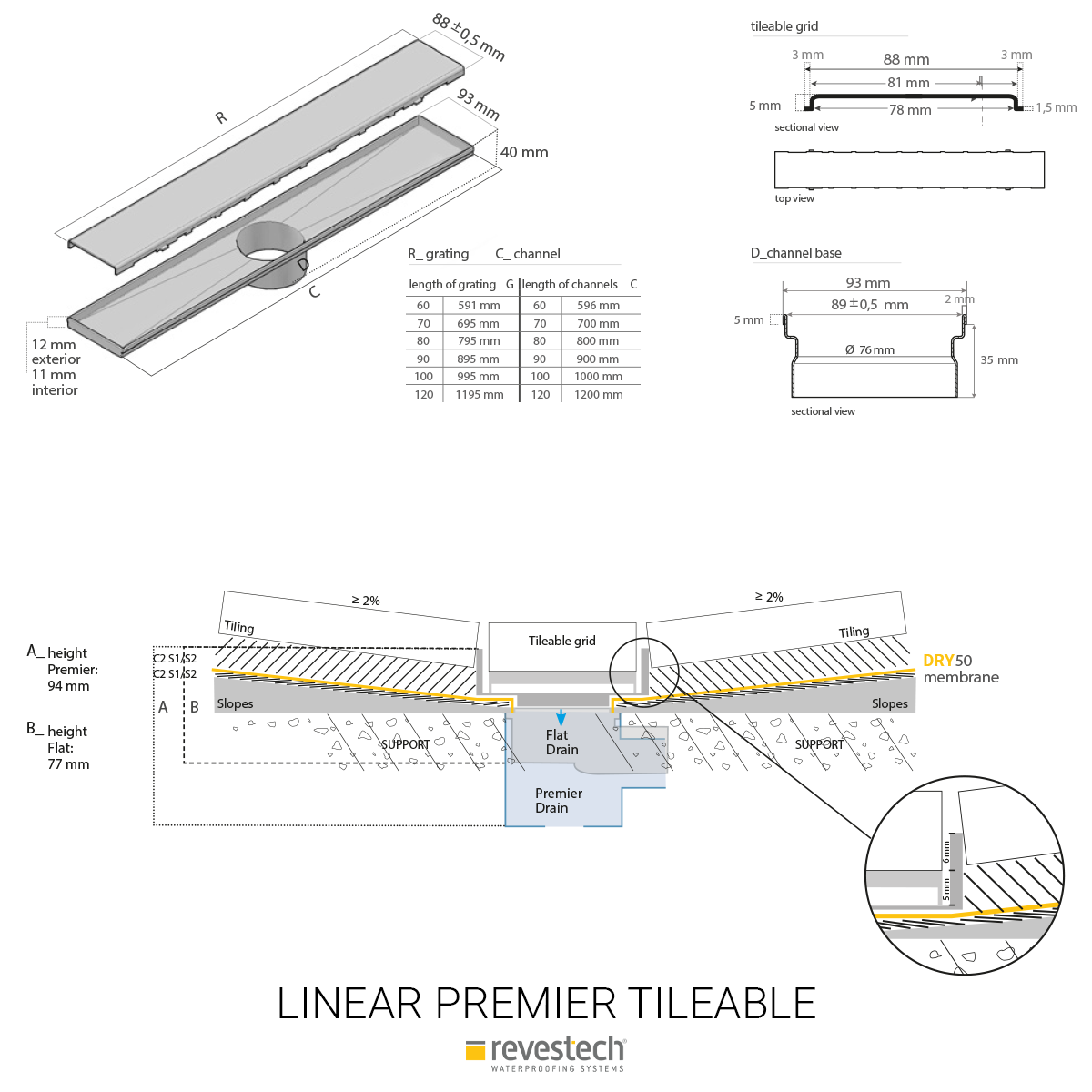

- Drain channel measurements 80cm X 9.3cm
- Fast & easy installation
- Drain fitting height 9.4cm
- Drain flow rate 54 l/min
