dry50 linear level 80 hidden drain under ceramic tiles shower channel drain floor drain shower uniproof shop revestech Ireland
Linear Tileable Drain 80
Linear Tileable Drain 80
Linear Tileable Drain 80
Linear Tileable Drain 80
Linear Tileable Drain 80

Linear Tileable Drain 80

€326,00
Tax included. Shipping calculated at checkout.

Made In Spain

DRY 50 REVESTECH Lineal Level 80 Drain and Waste with Trap for Shower

DESCRIPTION

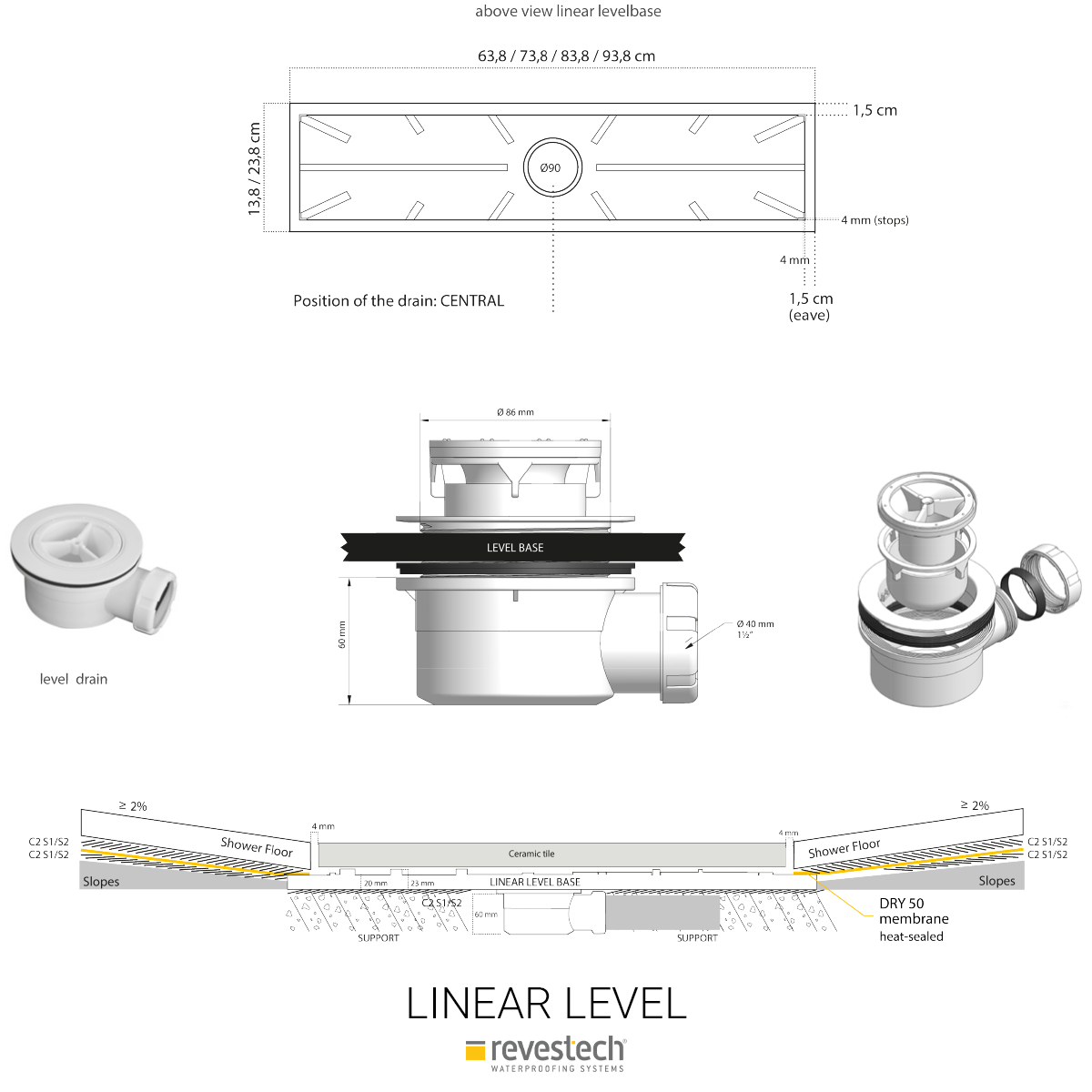

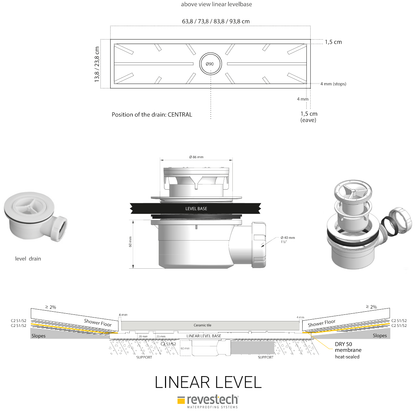

DRY 50 REVESTECH Lineal Level 80 drain receives the water from a single slope and drains through the floor joints between the tiles reaching the base level and the drain. Horizontal outlet 50/56mm.

USES

DRY 50 Lineal Level 80 Drain is suitable to be fitted in shower spaces with preformed slopes. Drain set has additional 3m2 DRY 50 waterproofing membrane included that has to be covered with suitable tiles (min. 80cm X 10cm).

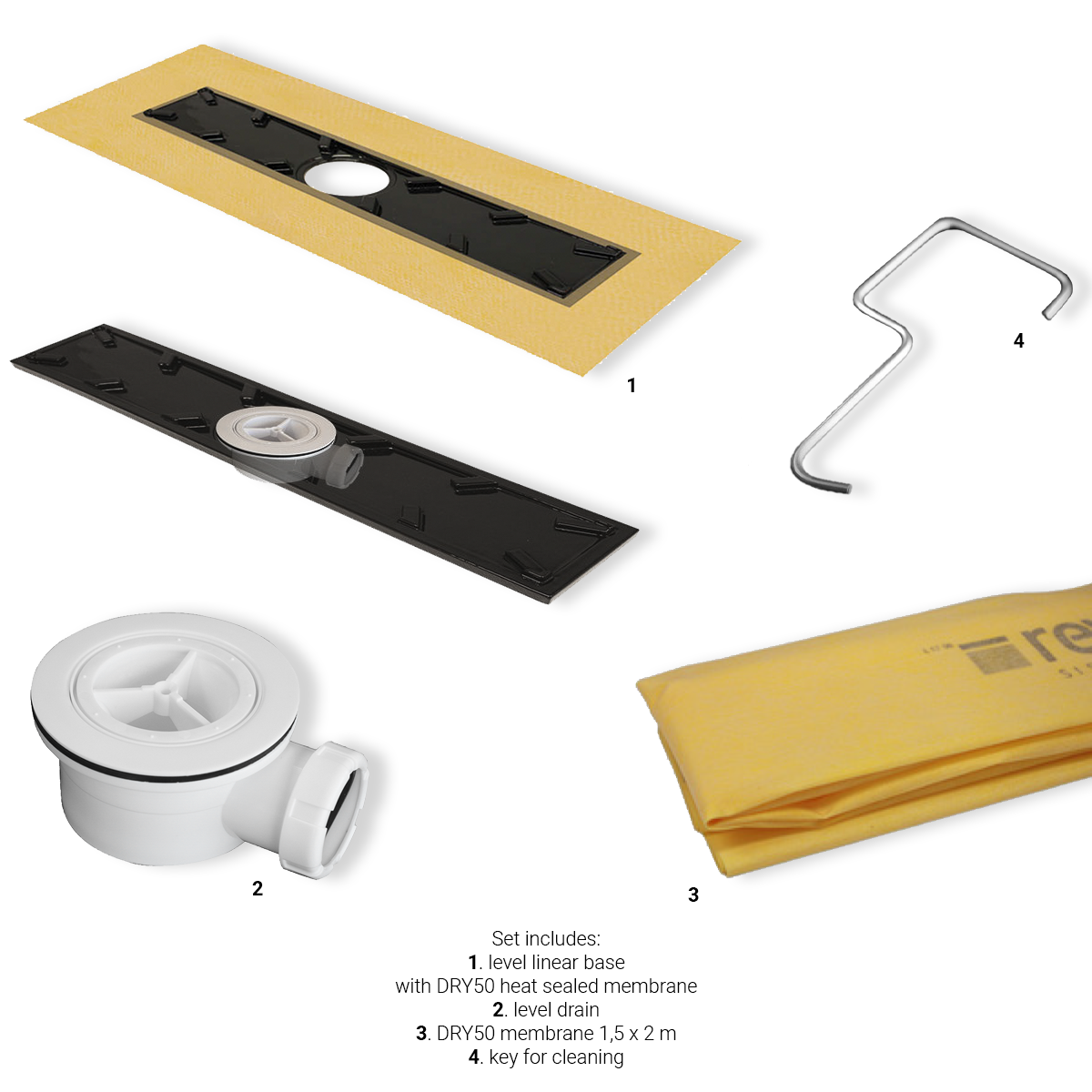

WHAT’S IN THE BOX

  1. Level Shower Drain
  2. Level Linear Base (83.8cm X 13.8cm)
  3. Sealing Membrane DRY 50 sheet (2m X 1.5m)
  4. Fitting Instructions
  5. Adaptor ST 90 OUT

  CHARACTERISTICS / ADVANTAGES

  • Drain measurments 80cm X 10cm
  • Tileable
  • Fast & easy installation
  • Drain fitting height 8.3cm

Click to view Data Sheet
