Smart Underfloor Heating Thermostat Black
Smart Underfloor Heating Thermostat Black
Smart Underfloor Heating Thermostat Black

Smart Underfloor Heating Thermostat Black

Regular price €145,00
Unit price  per
Tax included. Shipping calculated at checkout.

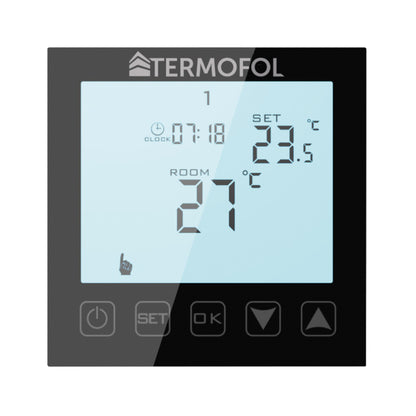

TEMPERATURE CONTROLLER TERMOFOL TF-WIFI

DESCRIPTION

The high standard, fully programmed temperature controller is equipped with digital screen and a touch control panel. The blue backlight is exceptionally legible. The available programs: 5 2 or 6 1. Also available are the working modes: measuring the temperature of the room, measuring the floor temperature, measuring the room temperature without the floor temperature. Note: the device has the possibility of calibrating the temperature.

THE MODES OF THE TEMPERATURE CONTROLLER

  • ROOM – the interior sensor controls the temperature in the room and the floor sensor is off. The mode is used in case the thermostat is to control a heating system different from the floor heating.
  • FLOOR – the floor sensor controls the floor temperature and the interior sensor is off. The mode is used when the thermostat is to control the underfloor heating installed in order to gain the comfort of the warm floor, e.g. in the bathroom.
  • ALL – the interior sensor controls the temperature in the room while the underfloor sensor limits the floor temperature, protecting it from overheating. The mode is used when the thermostat is to control the underfloor heating which is the heating system of the room.

USES

The temperature controller has the temperature sensors: the interior one serves for stabilizing the temperature in the heated room, the floor one lets limiting the air and floor temperature ensuring the full safety.

  • in private and public shower rooms
  • in bathrooms
  • in laundry rooms
  • in toilets
  • in interior areas
  • on heated tiled floors
  • under the large format floor tile applications
  • other living rooms

CHARACTERISTICS / ADVANTAGES

    • Touch button control
    • Installation: flush-mounted – in an installation box
    • Warranty: 24 months
    • Slim shape – only 12 mm thick!
    • Black front panel
    • Blue illumination with adjustable backlight time
    • Signalling – heating on
    • Possibility of manual temperature control
    • Allows protection against temperature drop and rise
    • Adjustable hysteresis
    • Displays date and time
    • WHAT’S IN THE BOX
    • Temperature controller with a built-in temperature sensor
    • Exterior temperature controller – underfloor controller with a cable
    • Box
    • Fixing screws
    • User’s Manual
    • Warranty Card

    PRODUCT INFORMATION

    • Power consumption: < 1.5 W
    • Temperature range: 5 – 35 °C
    • Limiting the heater maximum temperature – floor: 10 °C – 70 °C
    • 2 sensors: built-in air temperature sensor + NTC floor temperature sensor
    • Maximum output load: 16A
    • Protective level: IP20
    • Power supply: 230 AC
