Hidden Square Shower Drain 30x30

Made In Spain

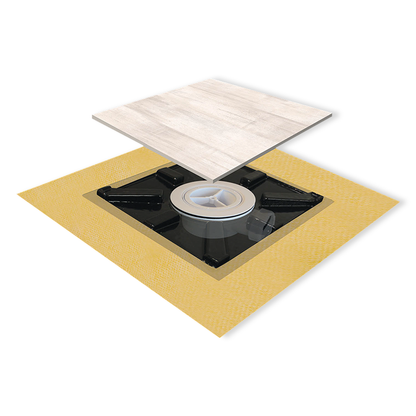

DRY 50 REVESTECH Sumi Level 30 Drain and Waste with Trap for Shower

DESCRIPTION

DRY 50 REVESTECH Sumi Level 30 Drain and waste with trap for shower. It includes HORIZONTAL outlet Ø 40mm. The new system of sealing the membrane to the drain in the manufacturing process provides a guaranteed 100% waterproof bond to the drain.

USES

DRY 50 Sumi Level 30 Drain is suitable to be fitted in shower spaces with preformed slopes. Drain set has additional 3m² DRY 50 waterproofing membrane included that has to be covered with suitable tiles (min. 30cm X 30cm).

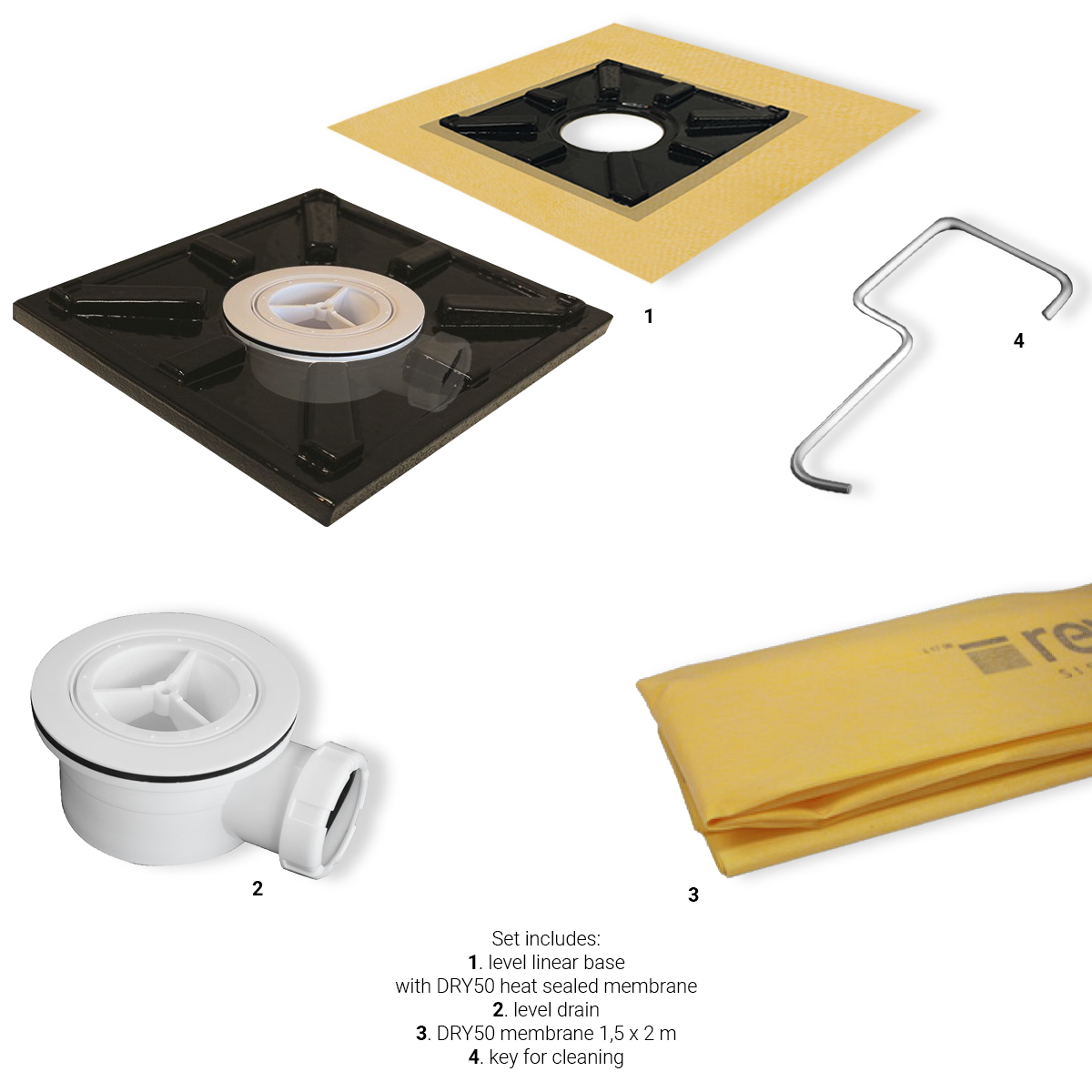

WHAT’S IN THE BOX

1. Level Shower Drain and Adaptor ST 90 OUT
2. Level Sumi Base (33.8cm X 33.8cm)
3. Sealing Membrane DRY 50 sheet (2m X 1.5m)
4. Fitting Instructions

CHARACTERISTICS / ADVANTAGES

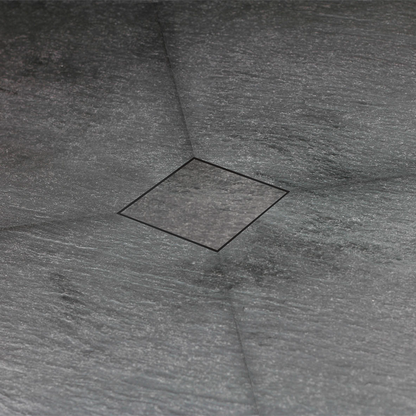

• Drain cover measurement 30cm X 30cm
• Tileable
• Fast & easy installation
• Drain fitting height 8.5 cm + tile
