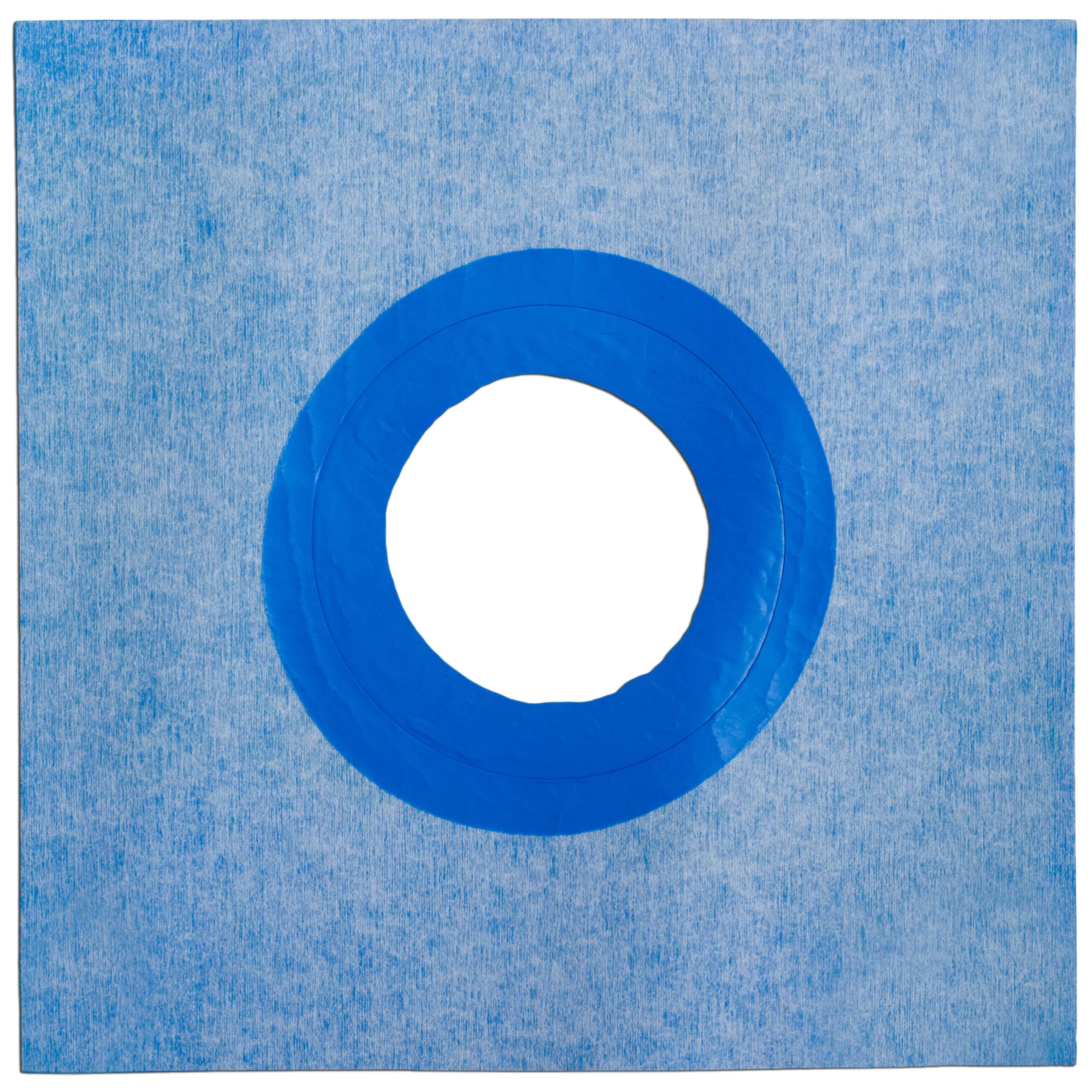

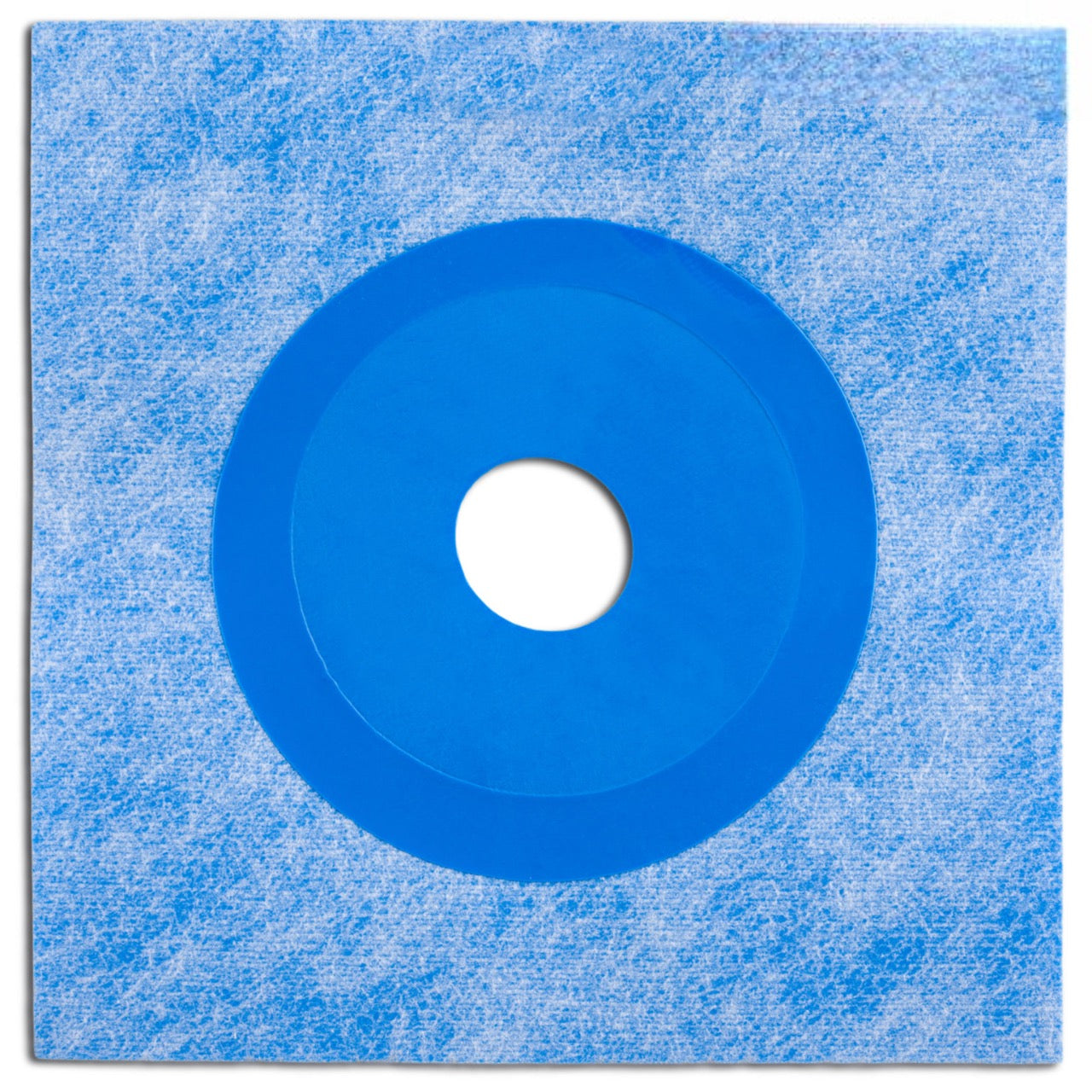

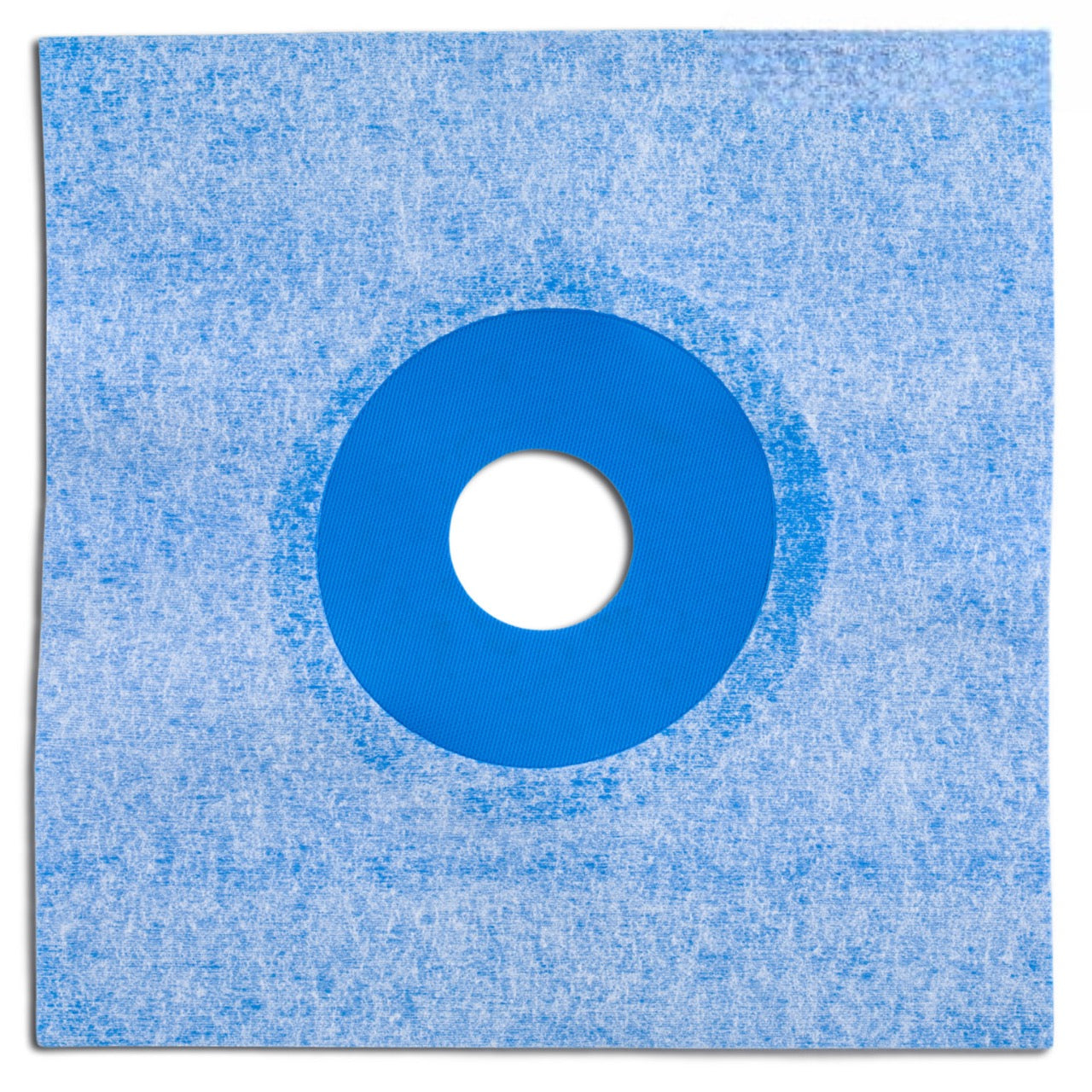

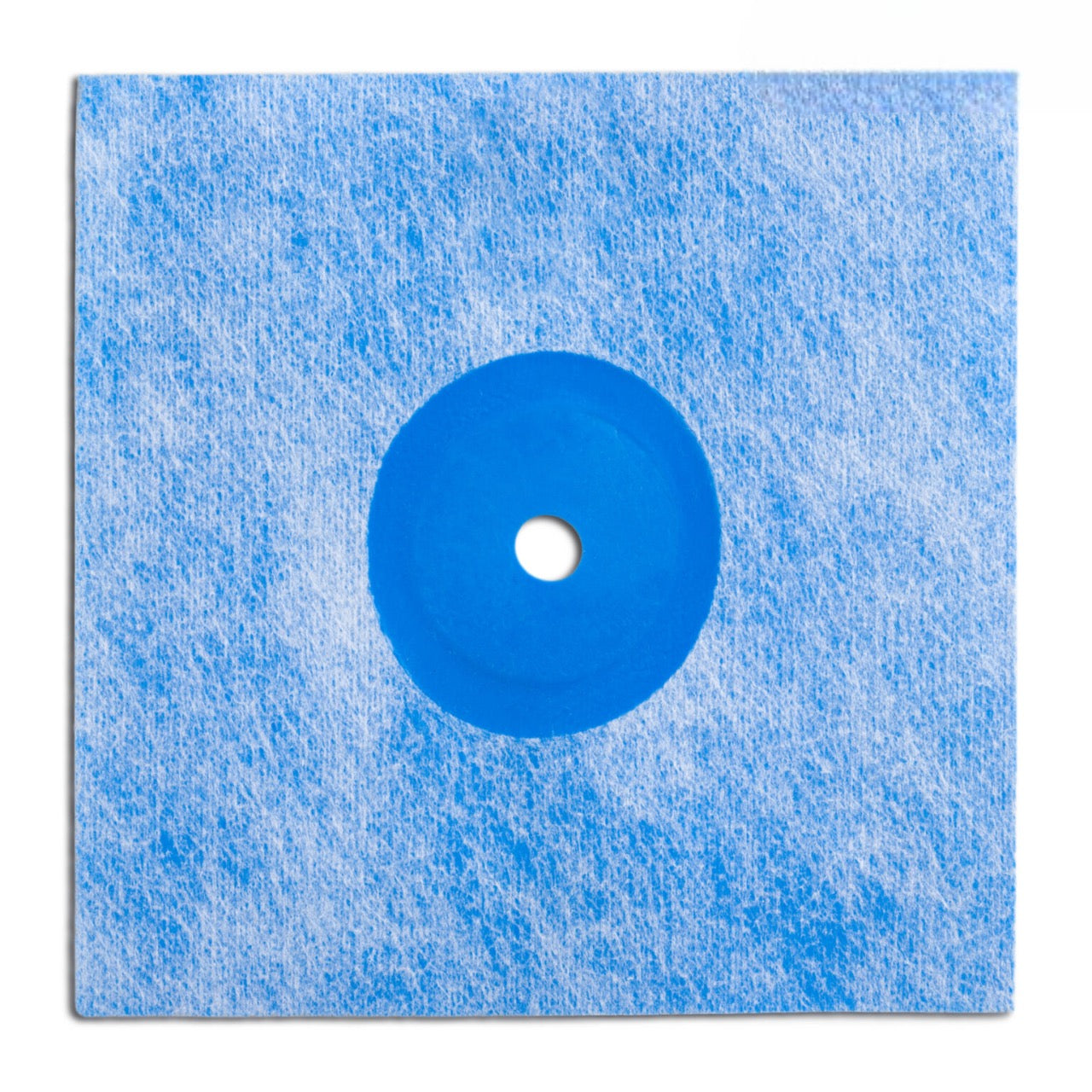

Trade Waterproof Pipe Collar

Made In Germany

Sealing Membrane TRADE WATERPROOF PIPE COLLAR for Waterproofing & Tanking Bathrooms and other Wet Rooms Floors & Walls.

Crack-bridging TRADE WATERPROOF PIPE COLLAR consists of thermoplastic elastomer TPE center part surrounded by TRADE WATERPROOFING MEMBRANE which is coated with polypropylene fibers for optimal grip with the tile adhesive C2-S1, used in all installations.

Waterproof reinforcement TRADE WATERPROOF PIPE COLLAR with thermoformed shaping to seal the pipes prior to the tiling works.
The watertight covering  TRADE WATERPROOF PIPE COLLAR is intended to be installed under ceramic tiles and natural stones:

• in private and public shower rooms
• in bathrooms
• in laundry rooms
• in toilets
• on heated floor
• for wall and floor applications
• in interior areas
• outdoors (balconies, terraces, courtyards)

The collars should be bonded to an even load bearing substrate using the appropriate tile adhesive C2-S1.

• Fast & easy installation
• Flexible
• Crack bridging
• High water vapour tightness
• Good adhesion to tile adhesive
• Chemically resistant

• Composition – thermoplastic elastomer TPE  with polyethylene foil nonwoven polypropylene on both of its sides
• Appearance / Colour – blue
• Storage Conditions – in cool, dry conditions in a horizontal position
• Overall Thickness – approx. 0,5 mm
• Mass Per Unit Area – approx. 277 g/m²

• 12-25 mm Pipe Diameter (membrane 120mm X 120mm)
• 27-55 mm Pipe Diameter (membrane 150mm X 150mm)
• 47-80 mm Pipe Diameter (membrane 250mm X 250mm)
• 77-110 mm Pipe Diameter (membrane 250mm X 250mm)
