Uniproof® Shower Former with Drain
DESCRIPTION

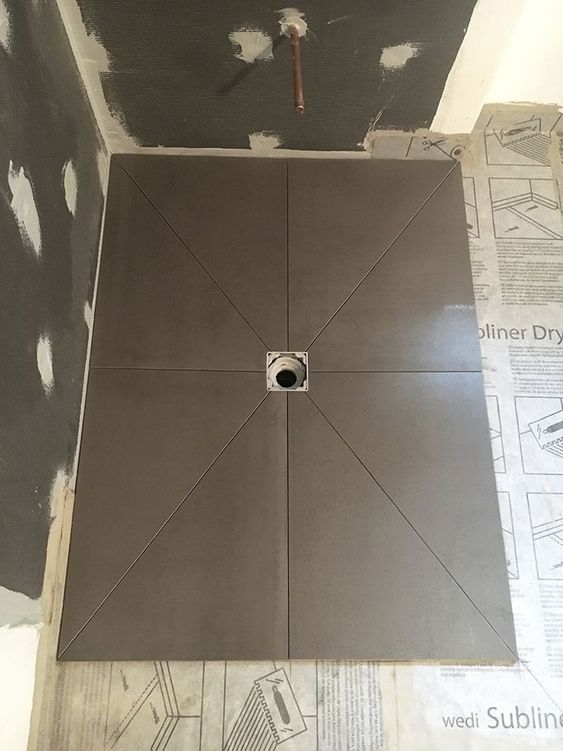

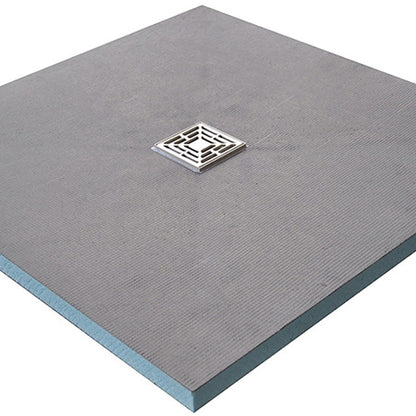

Uniproof® XPS Shower Tray Formers are the ideal tray to use when installing a wet room. Shower Former Trays are easy to cut (small adjustments when needed) giving you the chance to get the perfect fit for your shower area
USES

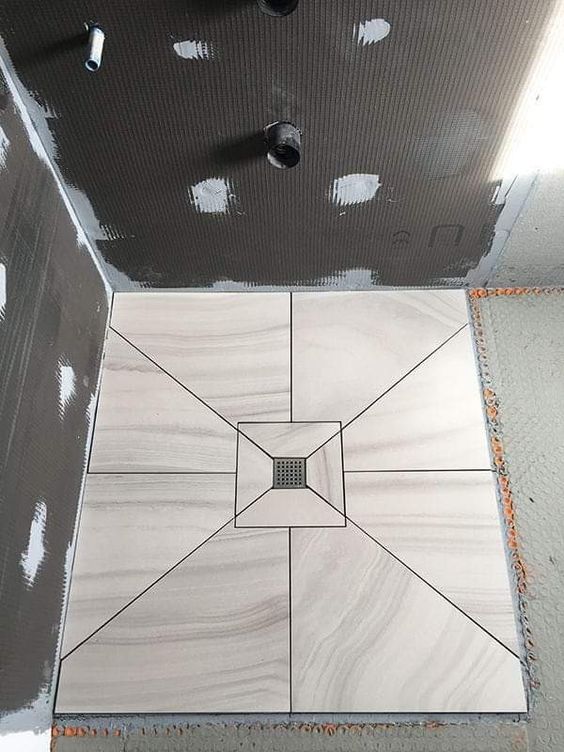

100% waterproof, to inset into the floor, suitable for coating with standard tiles or with mosaic (smallest 50mm X 50mm). After fitting the tray suitable waterproofing system has to be used in the corners where the tray meets the walls and on the floor where the tray is joining rest of the floor. Shower Former itself is 100% waterproof.
CHARACTERISTICS / ADVANTAGES
When using our shower base, there will be no need to make floor slopes: in comparison to concrete casting, our solution saves space and is much lighter. Floor heating cables can be placed right on top of Uniproof® XPS products.

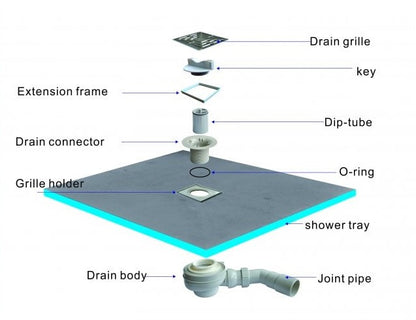

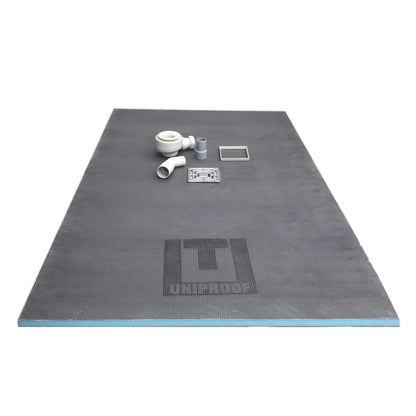

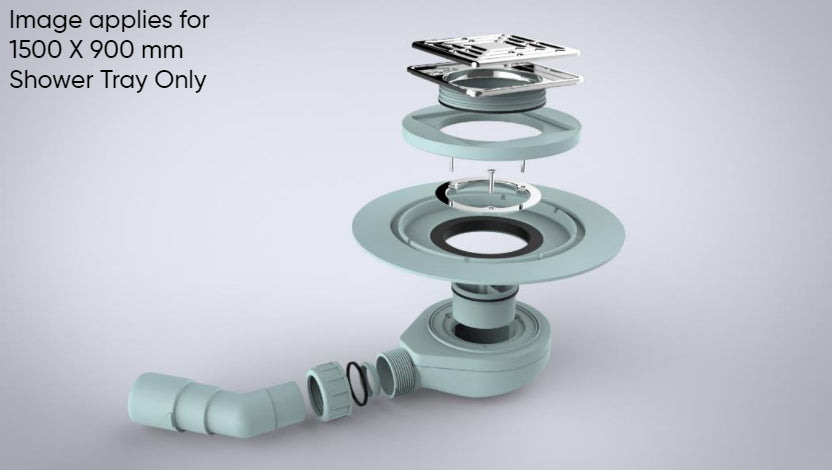

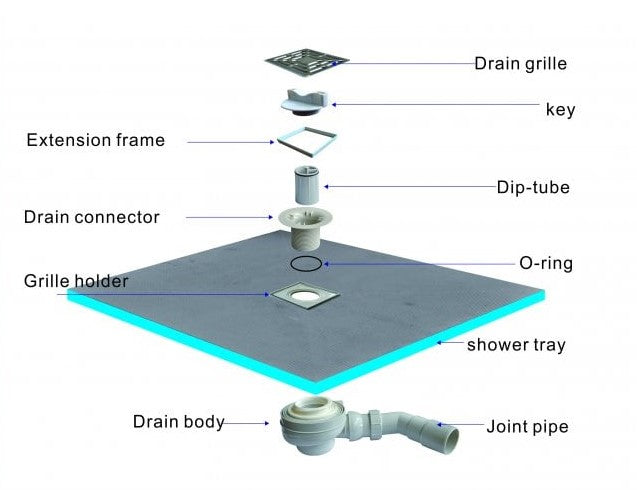

WHAT’S IN THE BOX
- Shower former

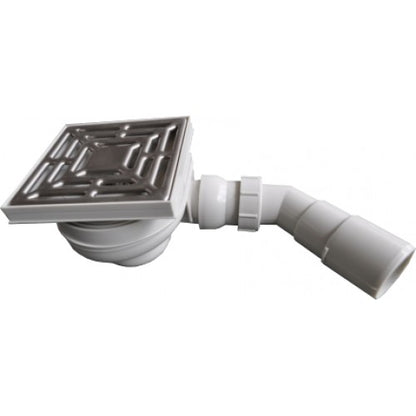

- Drain
- Stainless matt drain cover as standard (other colours available - Shower Former Drain Cover Plate – Uniproof Shop)
- Drain Riser
- Adaptor
PRODUCT INFORMATION

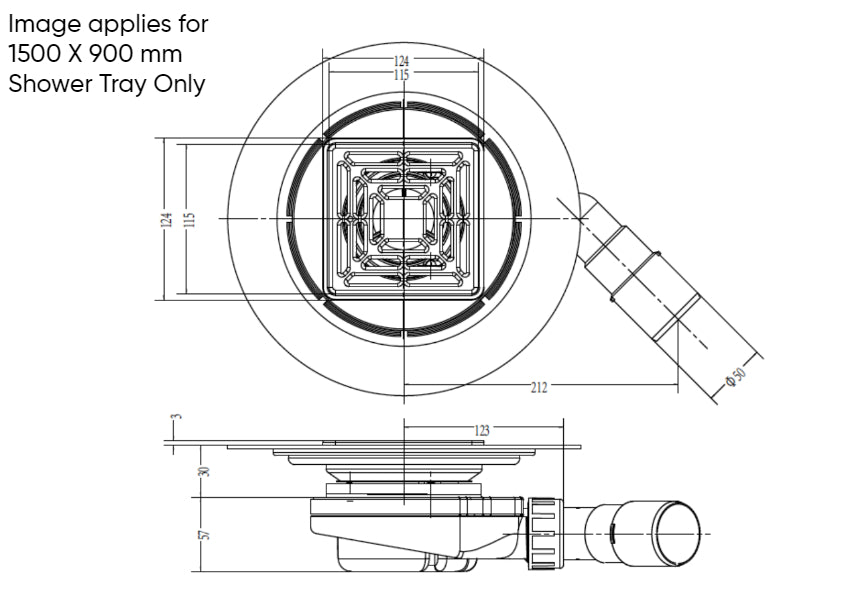

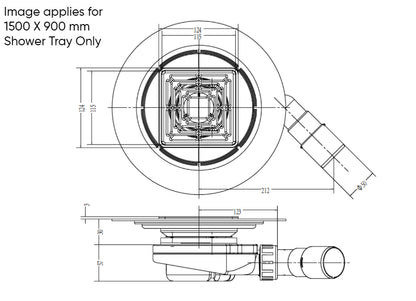

Drain Cover Size - 115mm X 115mm
Main Drain Body Height - 79 mm
Adjustable height from 10 mm to 17 mm tiles
Flow Rate – 35 l/per minute
Thickness of the tray - 25mm
Download Fitting Instructions
